ADT5

Updating Product Data...

Photometric configuration only available on screens above 1024px

updated

LED
1.5W 50lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 33lm/W
4000K CRI 80
Optic: D - Diffused light
Adjustability: fixed
Lm output in Emergency mode: -

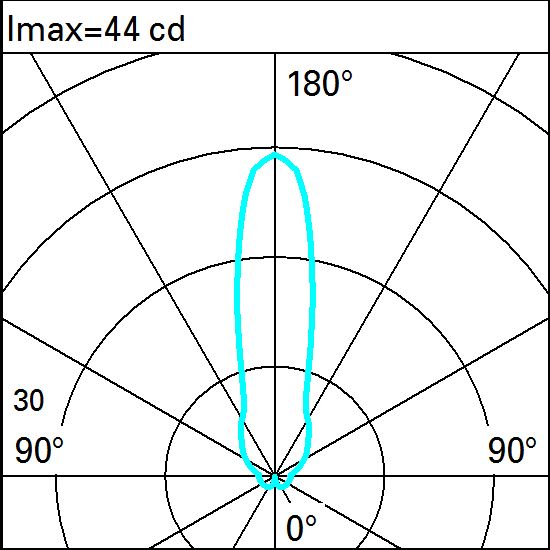

Total light flux at or above 90° [Lm]: 38
Light Output Ratio (L.O.R.) [%]: 100
Life Time 1: 50,000h - L80 - B10 (Ta 25°C)
Life Time 2: 40,000h - L80 - B10 (Ta 40°C)

Installation: Product supplied with washer and lock nut for fixing on a plate with holes having 23mm diameter. A special supporting base is available for multiple installation, to be ordered separately.
Environment: Outdoor
Wiring: Product requires electronic ballast, to be ordered separately (500mA).

T415

Multiple support base (max 9 elements) dim. 500x500x126h

Size (mm): 500x500x102
- 13 Steel
BZ98

Constant current power supply unit non dimmable IP20 7W - VIN = 100-240VAC 50/60Hz Iout =500mA dimensions: 42x40x22
- 00 Indeterminate
BZA0

Constant current power supply unit non dimmable IP20 20W - VIN = 220-240VAC 50/60Hz Iout = 500mA dimensions: 119x38x28
- 00 Indeterminate
9581

Sealed connector kit IP68 for low voltage
- 04 Black
9582

IP67 box for power supply - dim. 140x230x95h (6PG)

Size (mm): 230x140x95
- 00 Indeterminate
B915

IP68 box for multiple connections - dim. 135x82x70h

Size (mm): 135x82x70
- 04 Black
BZG8

"T" type IP68 three-way junction connector
- 00 Indeterminate
BZH0

2-way connector with 2 pole terminal
- 00 Indeterminate
