iPro belongs to iPro □ 81mm

BK23

Updating Product Data...

Photometric configuration only available on screens above 1024px

iPro - Outdoor floodlight - Warm white LED - with electronic ballast Vin=100-240V ac - Longitudinal Elliptical optic - 7.7W 550.8lm - 3000K

Product Information

  • Material: Aluminium
  • Size (mm): 81x81x86, Weight (kg): 0.92
  • Design: Mario Cucinella

Available colours

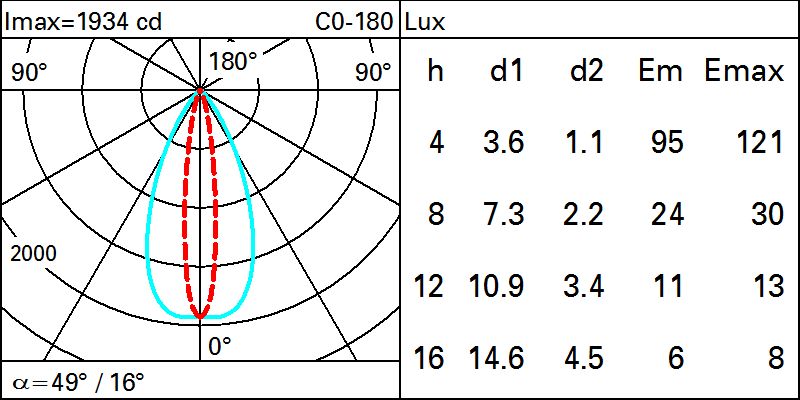

Lighting parameters

Electrical parameters

  • Electronic Control gear included
  • Ballast losses [W]: 1.5
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • Power Factor: See installation instructions
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

Installation information

  • Installation: Ground, wall or ceiling installation using special bracket. Secure using screw anchors for concrete, cement and solid brick.
  • Environment: Outdoor
  • Wiring: Equipped with electronic ballast Vin=100-240V ac 50/60Hz. Polyamide PG11 double cable gland for pass-through wiring, suitable for power cables ø 6.5-11 mm.
Accessories (1)
  • BZ60

    Adjustable spike for ground / garden installation
    • 00 Indeterminate
