Woody belongs to Woody ø140mm

BU84

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download

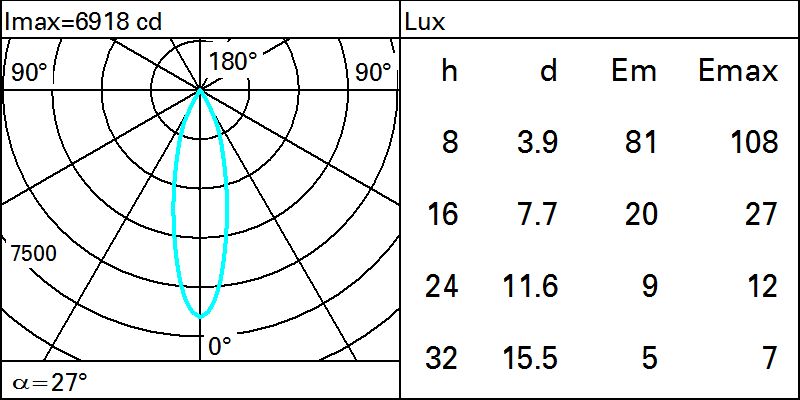

specific product data sheets and photometric curves.

Woody - Spotlight with base - Neutral White COB LED - Integrated electronic control gear - Flood optic - 19.1W 2021.8lm - 4000K

Product Information

  • Material: Aluminium
  • Size (mm): ø140x165, Weight (kg): 2.10
  • Design: Mario Cucinella

Available colours

Lighting parameters

Electrical parameters

  • Electronic Control gear included
  • Ballast losses [W]: 2.1
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • Power Factor: See installation instructions
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

Installation information

  • Installation: The luminaire can be floor, ceiling or wall-mounted using either screw anchors for concrete, cement and solid brick or various other available accessories.
  • Environment: indoor/outdoor
  • Wiring: Control gear complete with electronic ballast (220÷240Vac 50/60Hz)
Accessories (10)
  • 1185

    Refractor for elliptical distribution
    • 24 Clear transparent
  • 1186

    45° cylindrical
    • 04 Black
    • 15 Grey
  • BZF7

    Diffuser glass
    • 65 Nitric
  • 6181

    Prismatic diffuser glass
    Size (mm): ø117
    • 24 Clear transparent
  • 6183

    Interchangeable reflectors for LED C.o.B. - spot
    Size (mm): ø108x77
    • 12 Aluminium
  • 6185

    Interchangeable reflectors for LED C.o.B. - wide flood
    Size (mm): ø108x77
    • 12 Aluminium
  • 1183

    Belt for application on branches D=40÷120 mm
    • 00 Indeterminate
  • 1184

    Stainless steel belt with tie-rods for securing to ground
    • 00 Indeterminate
  • B988

    Spike for ground / garden application
    • 00 Indeterminate
  • B915

    IP68 box for multiple connections - dim. 135x82x70h
    Size (mm): 135x82x70
    • 04 Black
