iRound belongs to iRound

BV31

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download

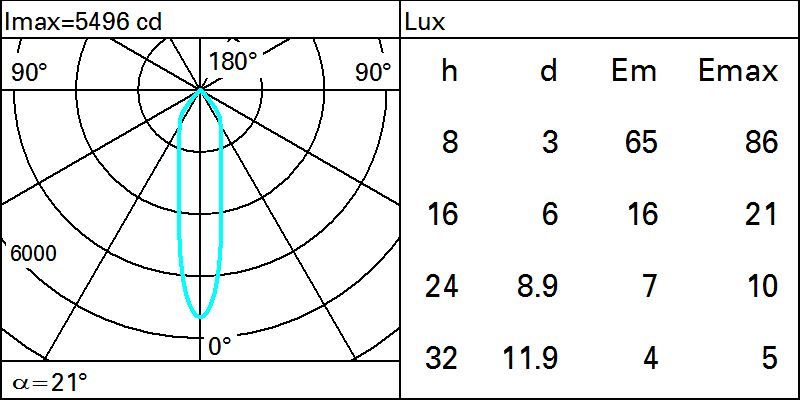

specific product data sheets and photometric curves.

updated

iRound - Ceiling-mounted recessed luminaire with IP66 protection rating, small body with box, Warm White COB Leds, fixed Spot Optic - Dimm. DALI - 21.6W 2167.5lm - 3000K

Product Information

  • Material: Aluminium
  • Size (mm): ø140x163, Weight (kg): 1.30
  • Design: Maurizio Varratta

Available colours

  • 15 Grey

Lighting parameters

Electrical parameters

  • Dimmable Electronic Control gear included
  • Control: DALI-2
  • Ballast losses [W]: 2.6
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 35°C.
  • Power Factor: See installation instructions
  • Inrush Current: 5 A / 50 µs
  • Circuit Braker:
    B10A: 31 luminaires
    B16A: 50 luminaires
    C10A: 52 luminaires
    C16A: 85 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 4kV Common mode & 3kV Differential mode

Technical Specifications

Installation information

  • Installation: Recessed in false ceilings 5 - 50mm thick. Hole for preparation of false ceiling ø=125mm. Installed on concrete ceilings using an outer casing, to be ordered separately.
  • Environment: Outdoor
  • Wiring: Control gear complete with dimmable DALI electronic ballast (220÷240Vac 50/60Hz)
Accessories (6)

  • MW84
    Refractor for elliptical distribution
    • 24 Clear transparent

  • MW85
    Diffusing prismatic glass
    Size (mm): ø67
    • 24 Clear transparent

  • MW86
    Diffuser Filter
    • 65 Nitric

  • MW83
    Stainless steel frame
    • 13 Steel

  • MW87
    Case for concrete ceilings. Granulometry suggested for the aggregates used in concrete 0÷25 mm
    • 04 Black

  • MWK6
    Safety cable L=2000
    • 00 Indeterminate
