BV43

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

updated

LED
30W 4730lm - light source values
34.1W 3596lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 105lm/W
3000K CRI 80

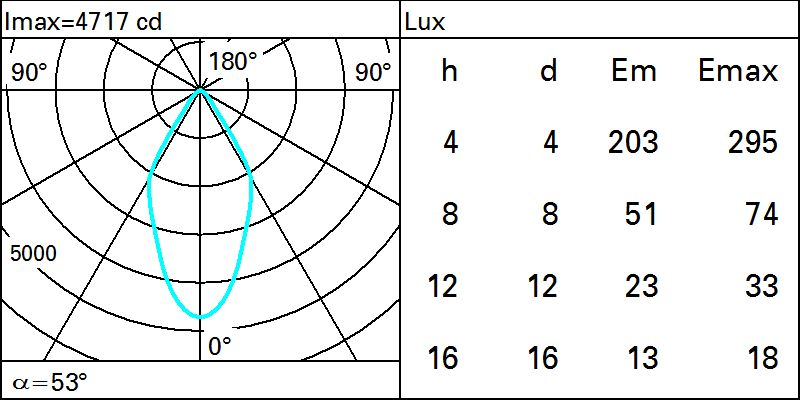

Optic: WF - Wide Flood 54°
Adjustability: fixed
Lm output in Emergency mode: -
Total light flux at or above 90° [Lm]: 0
Light Output Ratio (L.O.R.) [%]: 76
Life Time 1: 100,000h - L90 - B10 (Ta 25°C)

Dimmable Electronic Control gear included
Control: DALI-2
Ballast losses [W]: 4.1
N° lamps assembly: 1
Operating ambient temperature range: da -30°C a 35°C.
Power Factor: See installation instructions
Inrush Current: 10 A / 200 µs
Circuit Braker:
B10A: 18 luminaires
B16A: 30 luminaires
C10A: 31 luminaires
C16A: 51 luminaires
Perc Min Dimmer: 1
Overvoltage Protection: 4kV Common mode & 4kV Differential mode

Installation: Recessed in false ceilings 5 - 50mm thick. Hole for preparation of false ceiling ø=125mm. Installed on concrete ceilings using an outer casing, to be ordered separately.
Environment: Outdoor
Wiring: Control gear complete with dimmable DALI electronic ballast (220÷240Vac 50/60Hz)

4492

Refractor for elliptical distribution
- 24 Clear transparent
4493

Diffuser Filter
- 65 Nitric
X009

Diffusing prismatic glass

Size (mm): ø145
- 24 Clear transparent
MW88

Stainless steel frame
- 13 Steel
MW89

Case for concrete ceilings. Granulometry suggested for the aggregates used in concrete 0÷25 mm
- 04 Black
MWK6

Safety cable L=2000
- 00 Indeterminate
