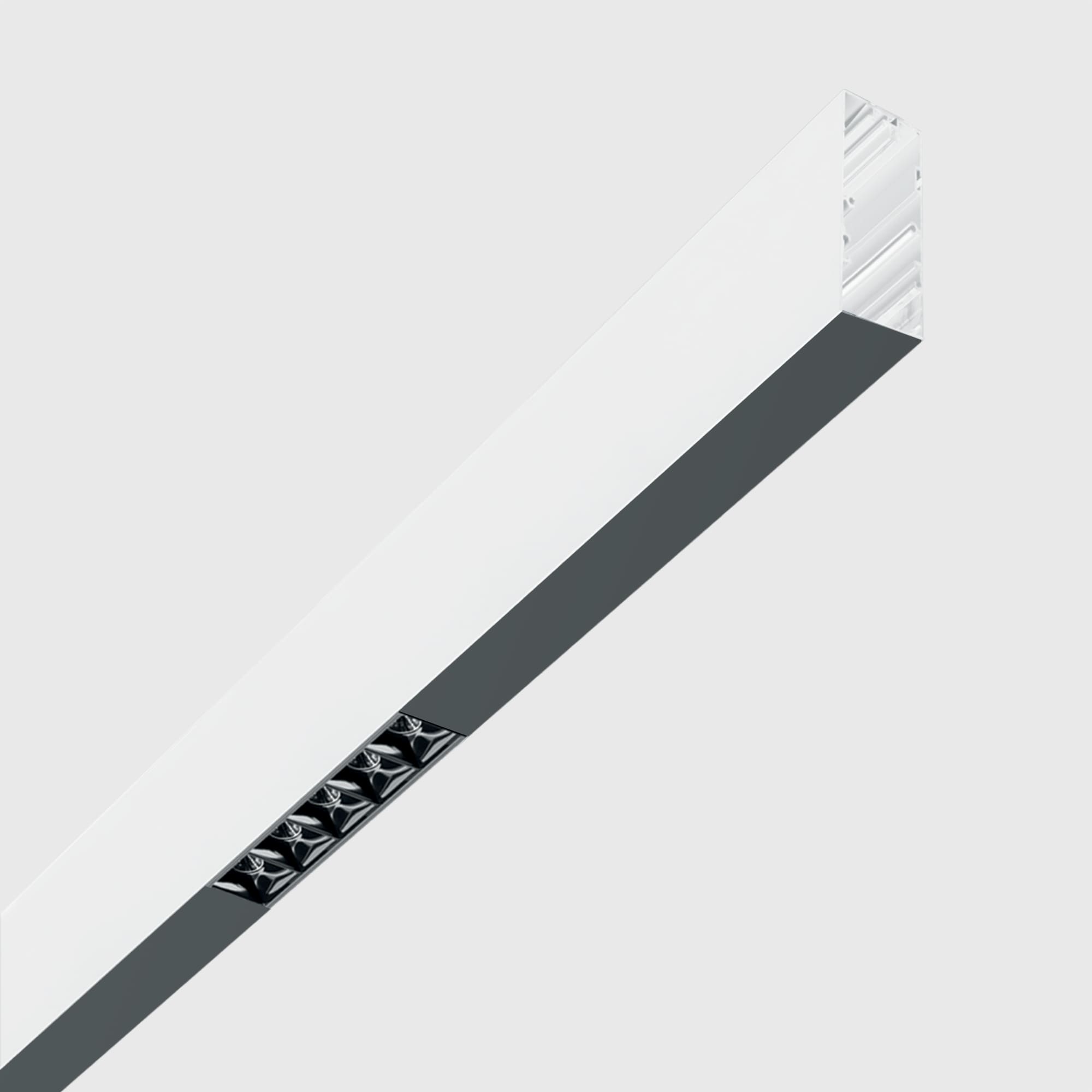

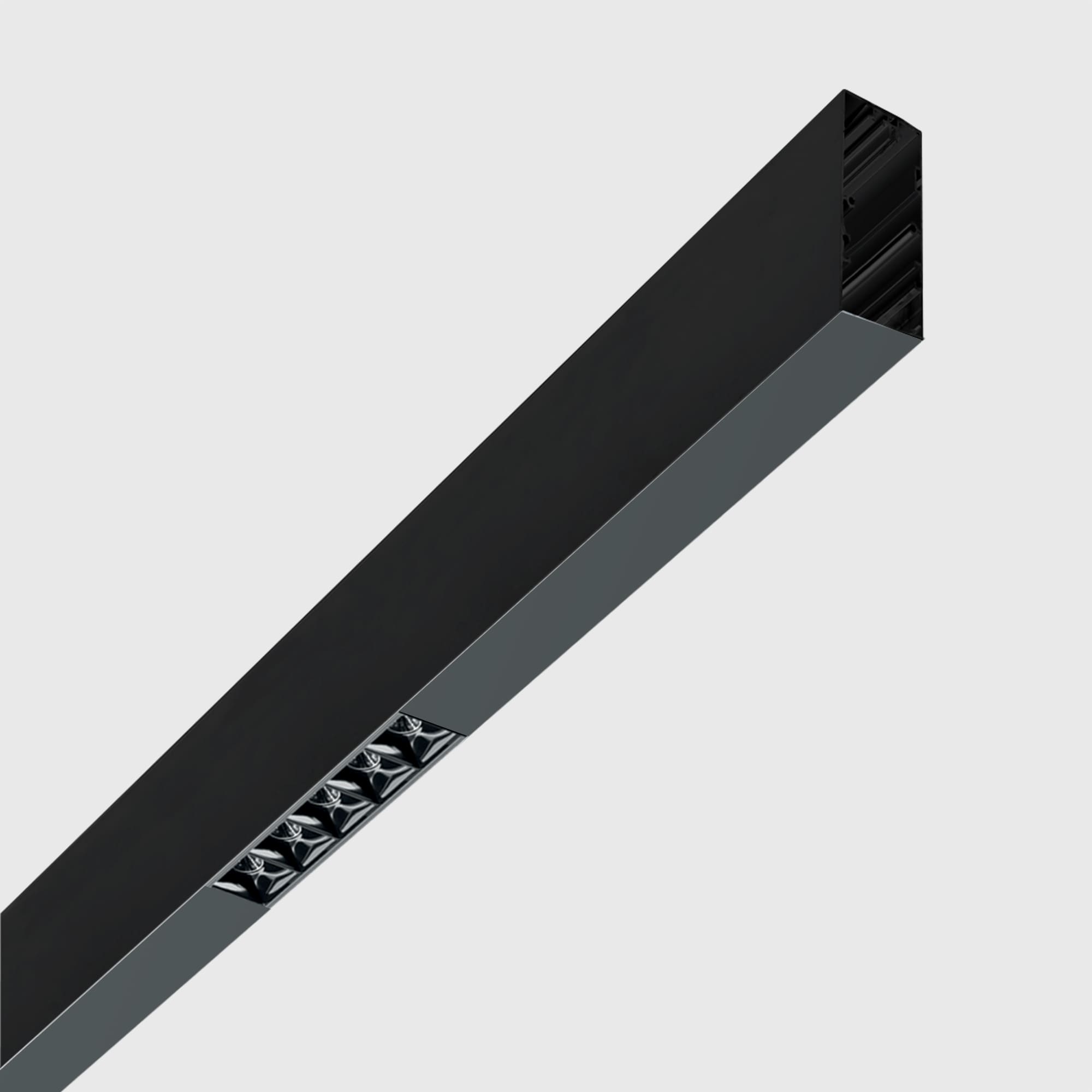

iN30 - High Contrast module L=1197 - direct emission with controlled glare - LED - neutral white integrated DALI dimmable control gear - 28W 1741.5lm - 4000K - CRI 95

Product Information

  • Material: aluminium and technopolymer
  • Size (mm): 1197x32x75, Weight (kg): 2.02
  • Design: iGuzzini

Available colours

Lighting parameters

Electrical parameters

  • Dimmable Control gear included
  • Control: DALI-2
  • Ballast losses [W]: 4
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Inrush Current: 53 A / 200 µs
  • Circuit Braker:
    B10A: 8 luminaires
    B16A: 13 luminaires
    C10A: 13 luminaires
    C16A: 22 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

Installation information

  • Installation: pendant: complete with power supply unit with cable (MWG5) and suspension cables (MWG6); surface-mounted: complete with supports (MWG7).
  • Environment: Indoor
  • Wiring: the module is fitted with 5-pin terminal blocks for pass-through wiring at the ends. DALI dimmable control gear integrated in the module.
Accessories (7)
  • MWG5

    Power supply base with suspension cables - L=1500
    • 01 White
    • 04 Black
  • MWG6

    Suspension cable - Intermediate L=1500
    • 00 Indeterminate
  • MWG7

    Ceiling mounting attachment
    • 00 Indeterminate
  • MWG8

    Accessory for flush installation
    • 00 Indeterminate
  • MX80

    Pair of end caps - for linear modules
    • 01 White
    • 04 Black
    • 15 Grey
  • MX81

    Connection elements for continuous row - for high contrast versions
    Size (mm): 135x231x343
    • 15 Grey
  • MZ23

    Connector for pendant continuous lines
    • 00 Indeterminate
    • 24 Clear transparent
