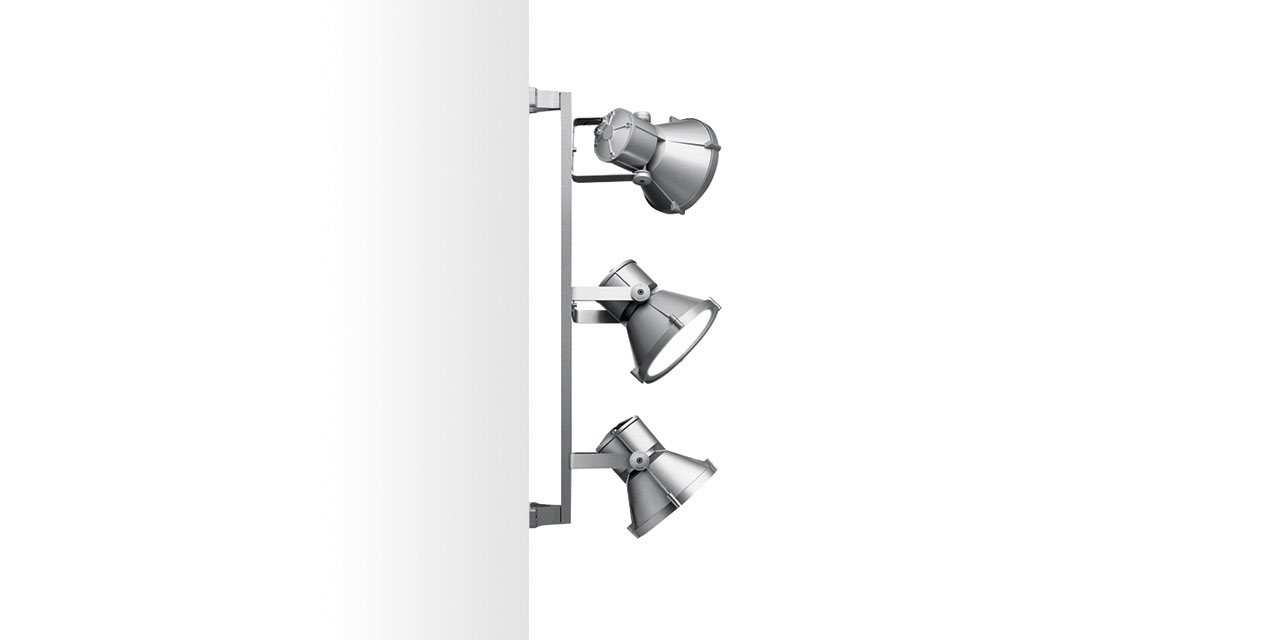

MultiWoody wall mounted

All Woody

Lighting Effects

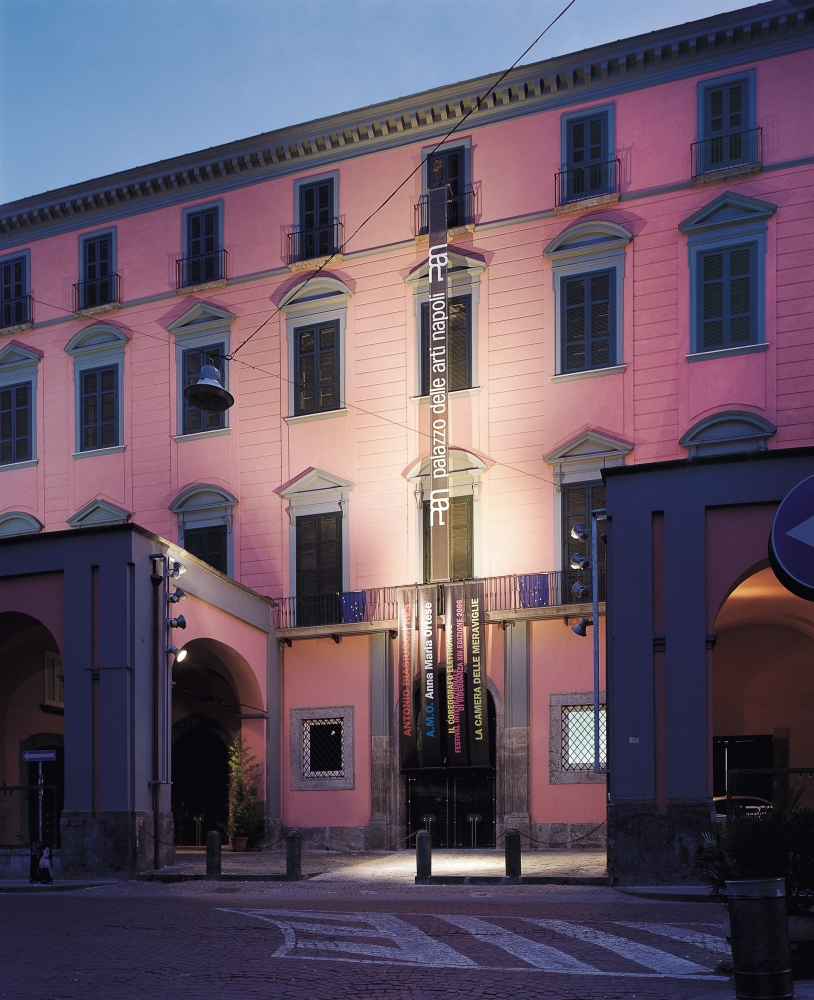

Application imagery for MultiWoody wall mounted


Product Details

  • Street lighting systems for use with LEDs and discharge lamps.
  • Fitting has an optical assembly (MaxiWoody compact, small and medium body floodlight), arm .
  • Optical assembly and frame in aluminium alloy; sodium-calcium tempered sealing glass, thickness 4 mm, secured with captive screws; 50-60 Shore A silicone gasket; superpure aluminium reflector.
  • The support arms are in 70 micron hot galvanized steel and available in different length both in the pole and the wall version; pole fixing with painted aluminium flange, the fixing system does not require any drilling of the pole.
  • (Conical) poles are in galvanized steel, available in two different heights: 4 and 7 metres off ground.
    • No upward emission of light flow.
  • Adjustable optical assembly.
  • Luminaire ready for pass-through wiring.
  • All screws are A2 stainless steel.

Colours available for MultiWoody wall mounted

  • 15 Grey

Got a question about our products?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 Year Warranty


36 Product Codes

Filter codes by:

Colour Temperature
Power (W)
Control
Optic
IP Protection Rating
Light Source
W
Lm
K
CRI
Optic
Control
Size (mm)
Code
Downloads
ø315 - Multi Chip
Complete with power supply and electronic DMX512-RDM
control card. DMX specifications require the insertion of a
120 Ohm terminating resistor (code BZQ7) to be placed between
the DATA+ and DATA- cables of the last product in the line.
Tunable white: 2700K÷6000K
