Laser - Adjustable (tilting) round recessed luminaire - LED - spot - 6.8W 584lm - 3000K - CRI 90

Product Information

  • Material: aluminium and thermoplastic
  • Size (mm): ø67x62, Weight (kg): 0.13
  • Design: iGuzzini

Available colours

Further colours on request

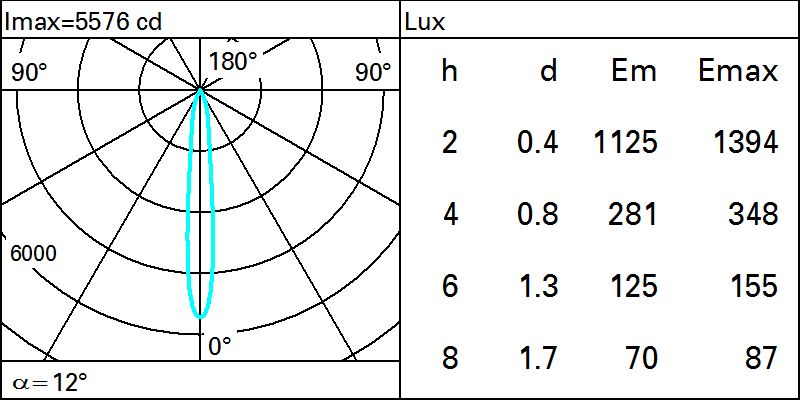

Lighting parameters

Electrical parameters

  • Ballast losses [W]: 0
  • N° lamps assembly: 1
  • LED Current [mA]: 200

Technical Specifications

  • On the visible part of
    the product once installed

Installation information

  • Installation: Recessed in a false ceiling by means of an anti-fall steel wire spring - minimum thickness of false ceiling: 1 mm - preparation hole Ø 59 mm.
  • Environment: Indoor
  • Wiring: Direct current ballasts are available with a separate code no.: ON-OFF / 1-10V dimmable / DALI dimmable / Trailing Edge dimmable - the recessed fitting includes a cable and a quick-coupling connector to connect it to the connector on the ballast.
Accessories (9)
  • MY16

    Internal anti-glare ring - for orientable versions ±30
    Size (mm): ø51x13
    • 04 Black
  • MY11

    Honeycomb louvre
    Size (mm): ø36x3
    • 04 Black
  • MY13

    Refractor for elliptical distribution
    Size (mm): ø36x3
    • 24 Clear transparent
  • MY12

    Diffuser glass
    Size (mm): ø36x3
    • 65 Nitric
  • MY14

    Coloured filters
    Size (mm): ø40
    • 05 red
    • 06 Yellow
    • 16 Blue
  • MY10

    Constant current power supply unit non dimmable IP20 15W - VIN = 220-240VAC 50/60Hz Ø59
    • 00 Indeterminate
  • MY07

    Power supply dimm. 0/1-10V IP20 20W - Vin 220-240Vac 50/60Hz
    Size (mm): 103x41x22
    • 00 Indeterminate
  • MY08

    Constant current power supply unit DALI IP20 10W - VIN = 220-240VAC 50/60Hz Ø59
    • 00 Indeterminate
  • MY09

    Constant current power supply unit IGBT + TRIAC IP20 10W - VIN = 220-240VAC 50/60Hz Ø59
    • 00 Indeterminate
