View Opti Linear belongs to View 130x110mm

P636

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

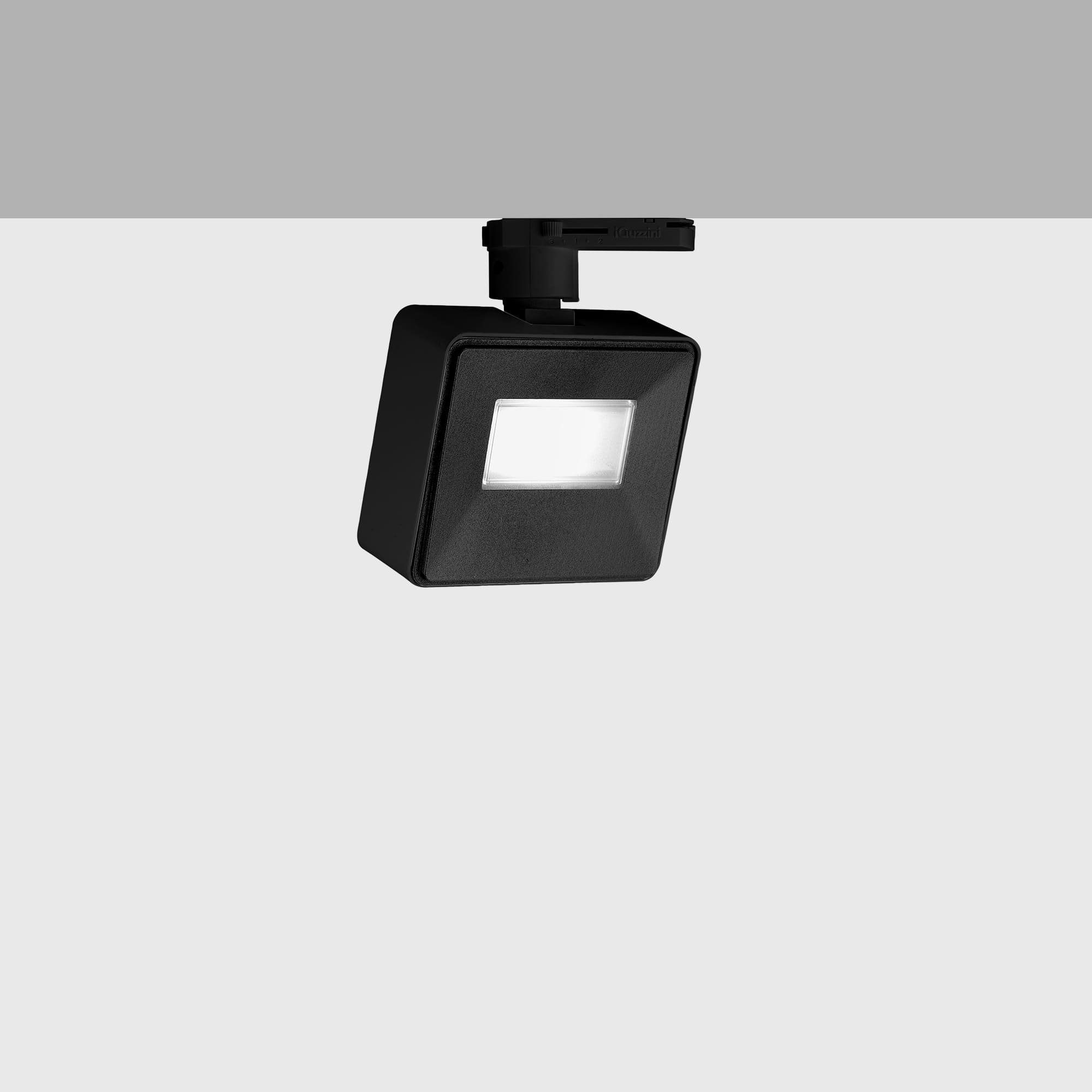

View Opti Linear - small body - neutral white - wide flood optic - 16.5W 1574.8lm - 4000K

Product Information

  • Material: aluminium and thermoplastic
  • Size (mm): 130x110, Weight (kg): 0.90
  • Design: iGuzzini / Arup

Available colours

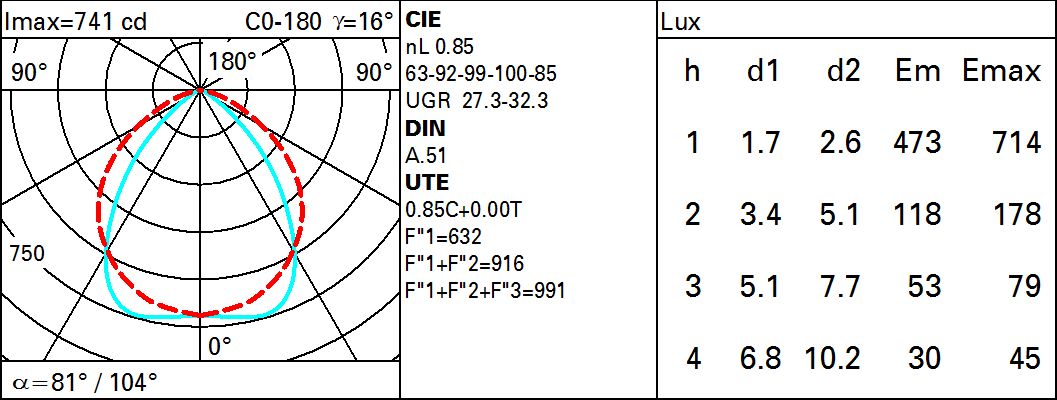

Lighting parameters

Electrical parameters

  • Dimmable Electronic Driver included
  • Control: DALI-2
  • Ballast losses [W]: 2.5
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Inrush Current: 20 A / 150 µs
  • Circuit Braker:
    B10A: 18 luminaires
    B16A: 30 luminaires
    C10A: 31 luminaires
    C16A: 51 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

  • for optical
    assembly

Installation information

  • Installation: On an electrified track or base
  • Environment: Indoor
  • Wiring: Product complete with electronic components
Accessories (6)
  • MXV7

    Anti-glare screen
    • 04 Black
  • MXV9

    Asymmetrical screen
    • 04 Black
  • MXZ2

    Ceiling base
    Size (mm): ø104x34
    • 01 White
    • 04 Black
  • MXZ3

    Recessed base Hole for installation 110-115mm
    • 01 White
    • 04 Black
  • MXZ5

    Casing for adapter IP40
    • 01 White
    • 04 Black
  • X208

    Adapter reinforcement (wall installation)
    • 01 White
    • 04 Black
