Q525

Updating Product Data...

Photometric configuration only available on screens above 1024px
Attention! This code has been replaced with code QI85.

Laser Blade XS - Minimal 1 cell - Medium beam - LED - 2W 121.6lm - 2700K - CRI 90

Product Information

  • Material: die-cast zamak and technopolymer
  • Size (mm): 25x25x51, Weight (kg): 0.07
  • Design: iGuzzini

Available colours

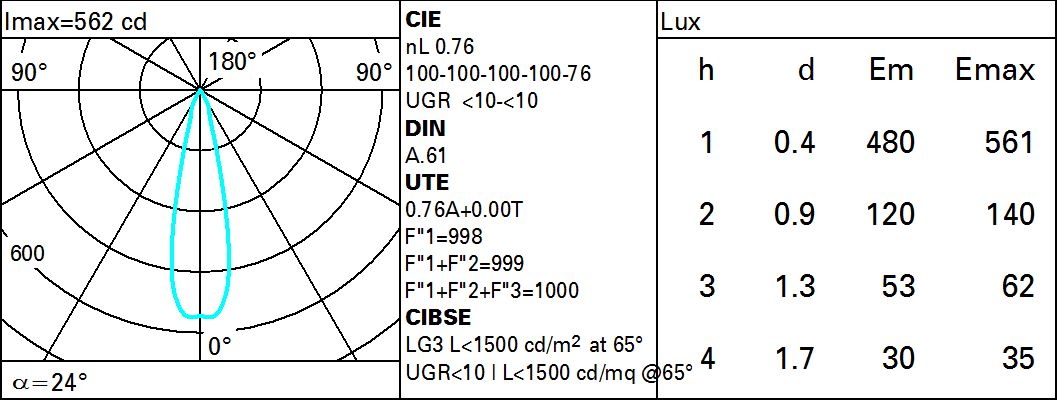

Lighting parameters

Electrical parameters

  • Ballast losses [W]: 0
  • N° lamps assembly: 1

Technical Specifications

Installation information

  • Installation: Recessed with steel wire springs on the specific adapter (included) which allows flush-mounting with the ceiling. Adapter fixed to false ceiling (compatible thicknesses of 12.5 / 15 / 20 mm) with screws; subsequent filling and smoothing operations; insertion of luminaire body and aesthetic end finishing. A special protective sheath allows finishing operations on the plasterboard to be simplified and speeded up. Preparation hole 28 x 28.
  • Environment: Indoor
  • Wiring: Direct current ballasts to be ordered separately: ON-OFF - code no. MXF9 (min 1 / max 8); dimmable DALI - code no. BZM4 (min 2 / max 20) - check the instruction sheet for the lengths and compatible cross-sections of the cables to be used.
Accessories (2)
  • BZM4

    Constant current power supply DALI IP20 50W - Vin = 220-240VAC 50/60Hz Iout = 350÷1050 mA
    Size (mm): 125x80x22
    • 00 Indeterminate
  • MXF9

    Constant current power supply unit non dimmable IP20 20W - VIN = 220-240VAC 50/60Hz Iout=700mA
    Size (mm): 110x52x22
    • 00 Indeterminate
