Q565

Updating Product Data...

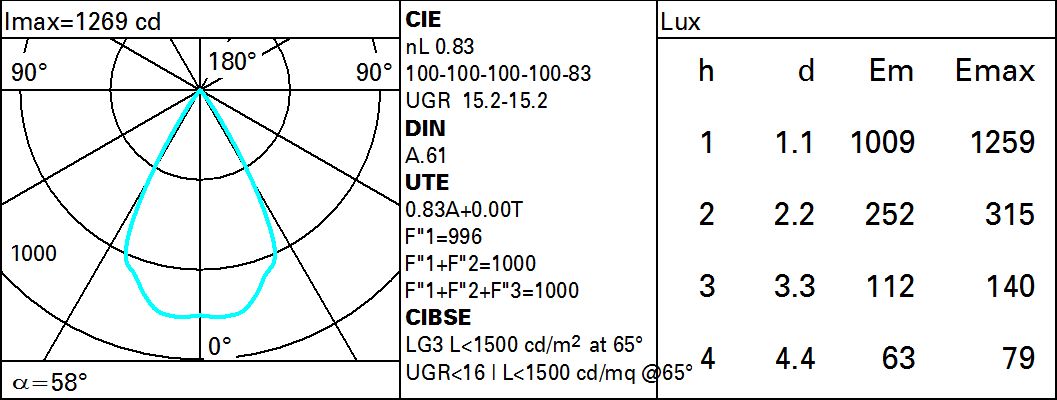

Photometric configuration only available on screens above 1024px
Attention! This code has been replaced with code QJ23.

Laser Blade XS - Minimal 9 cells - Wideflood beam - LED - 17.7W 996lm - 3000K - CRI 90

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): 62x62x49, Weight (kg): 0.33
  • Design: iGuzzini

Available colours

Lighting parameters

Electrical parameters

  • Dimmable Electronic Driver included
  • Control: DALI
  • Ballast losses [W]: 2.7
  • N° lamps assembly: 1

Technical Specifications

Installation information

  • Installation: Recessed with steel wire springs on the specific adapter (included) which allows flush-mounting with the ceiling. Adapter fixed to false ceiling (compatible thicknesses of 12.5 / 15 / 20 mm) with screws; subsequent filling and smoothing operations; insertion of luminaire body and aesthetic end finishing. A special protective sheath allows finishing operations on the plasterboard to be simplified and speeded up. Preparation hole 65 x 65.
  • Environment: Indoor
  • Wiring: On the power supply unit with terminal board included.
