Laser Blade XS belongs to Laser Blade XS High Contrast

Q797

Updating Product Data...

Photometric configuration only available on screens above 1024px
Attention! This code has been replaced with code QJ47.

Laser Blade XS - Minimal 15 cells - Medium beam - Tunable White - LED - 32.8W 1817lm - Tunable white

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): 272x25x50, Weight (kg): 0.83
  • Design: iGuzzini

Available colours

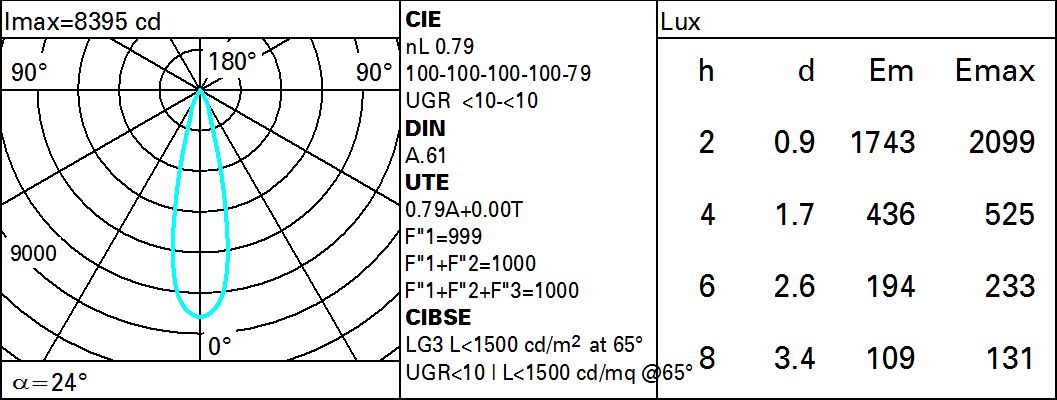

Lighting parameters

Electrical parameters

  • Dimmable Electronic Driver included
  • Control: DALI
  • Ballast losses [W]: 5.8
  • N° lamps assembly: 1

Technical Specifications

Installation information

  • Installation: Recessed with steel wire springs on the specific adapter (included) which allows flush-mounting with the ceiling. Adapter fixed to false ceiling (compatible thicknesses of 12.5 / 15 / 20 mm) with screws; subsequent filling and smoothing operations; insertion of luminaire body and aesthetic end finishing. A special protective sheath allows finishing operations on the plasterboard to be simplified and speeded up. Preparation hole 28 x 274.
  • Environment: Indoor
  • Wiring: DALI control gear units included. Different management systems are available with a separate code. For technical details, properties and connection procedures see the instruction sheet.
