Laser Blade XS - Ceiling-mounted LB XS square HC - 9 cells - Wide Flood beam - integrated driver - 17.7W 1245lm - 3000K - CRI 90

Product Information

  • Material: aluminium and technopolymer
  • Size (mm): 63x63x200, Weight (kg): 0.66
  • Design: iGuzzini

Available colours

Further colours on request

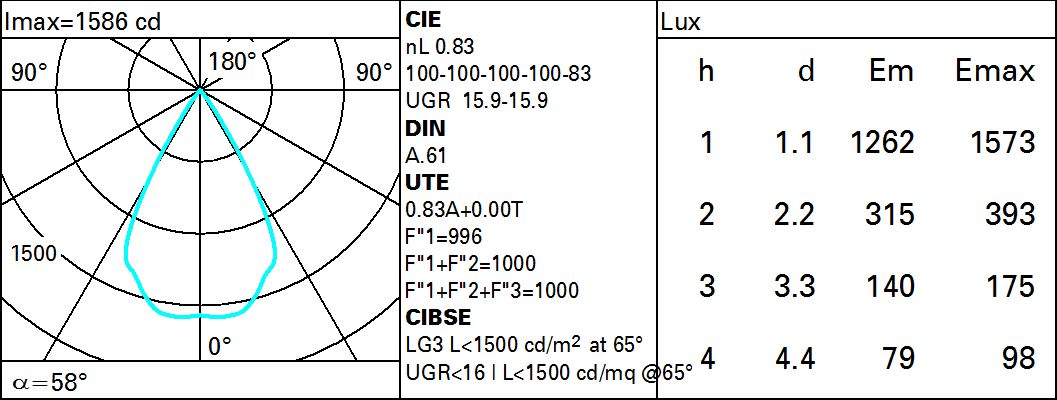

Lighting parameters

Electrical parameters

  • Driver included
  • Ballast losses [W]: 2.7
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

Installation information

  • Installation: Ceiling-mounted with surface fixing plate (screws and screw anchors not included) - external locking system.
  • Environment: Indoor
  • Wiring: Cables supplied with quick-coupling terminals for connecting to power supply line.
