Laser Blade XS - Ceiling-mounted Linear Wall Washer - remote driver - 17W 760lm - 4000K - CRI 90

Product Information

  • Material: aluminium and technopolymer
  • Size (mm): 184x27x50, Weight (kg): 0.30
  • Design: iGuzzini

Available colours

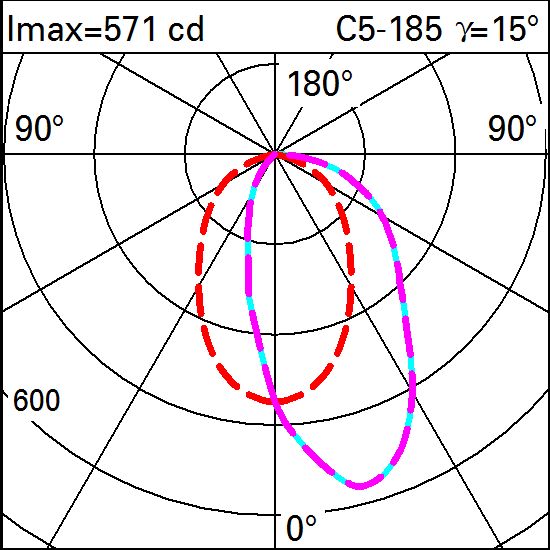

Lighting parameters

Electrical parameters

  • Driver not included
  • Ballast losses [W]: 0
  • N° lamps assembly: 1
  • LED Current [mA]: 600

Technical Specifications

Installation information

  • Installation: Ceiling-mounted with surface fixing plate (screws and screw anchors not included) - external locking system.
  • Environment: Indoor
  • Wiring: Cables supplied with quick-coupling terminals for connecting to power supply line.
Accessories (2)
  • MZ85

    Power supply On-Off 36W
    • 00 Indeterminate
  • MZ86

    Dimmable DALI 27 W power supply - Vin = 220-240 Vac / 50-60Hz, Iout = 600mA.
    Size (mm): 144x67x30
    • 00 Indeterminate
