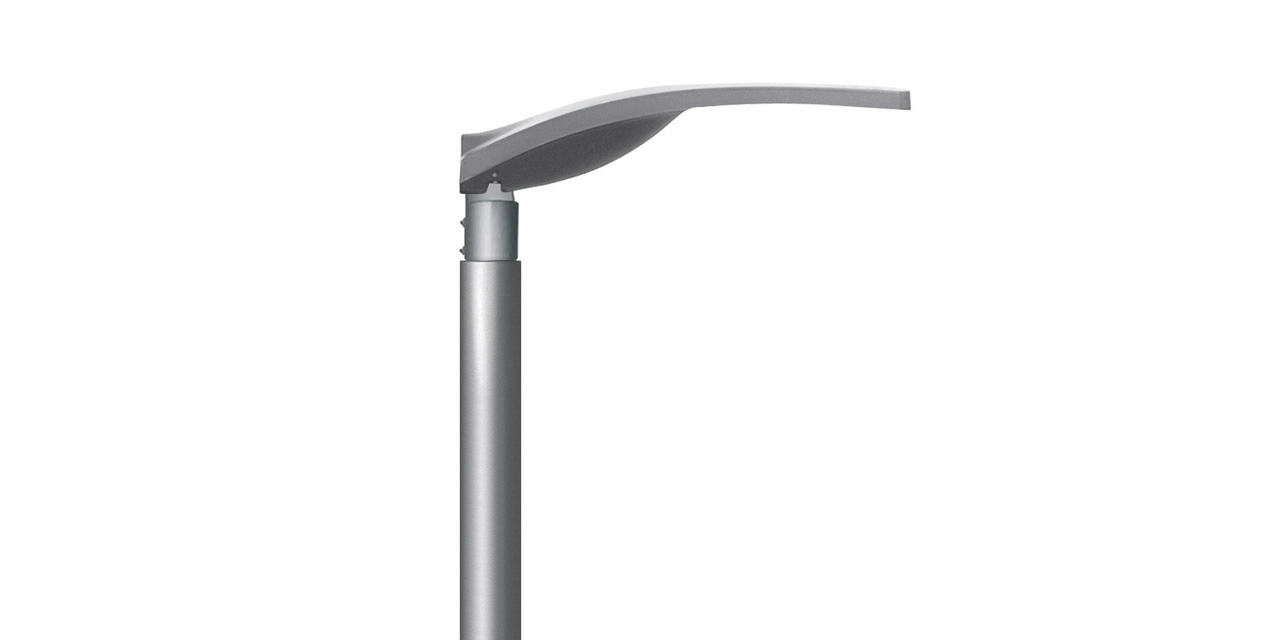

Wow pole-top 758x415mm

All Wow

Lighting Effects

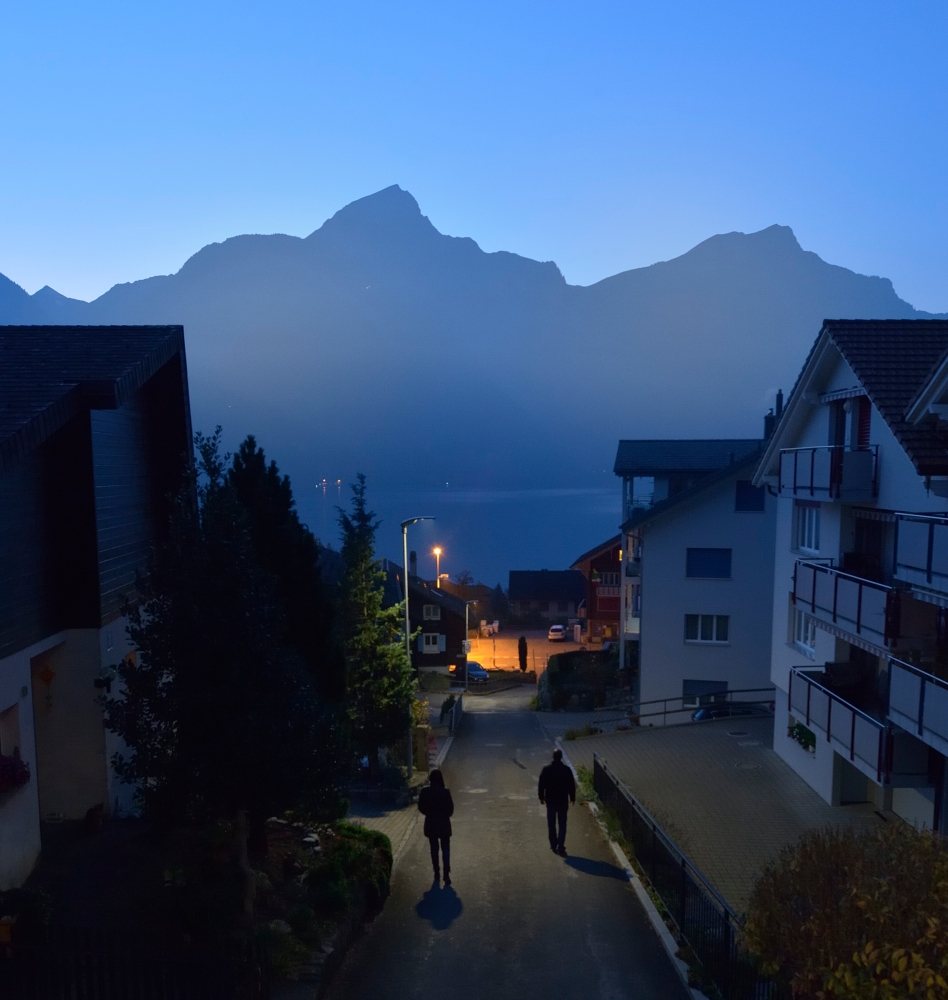

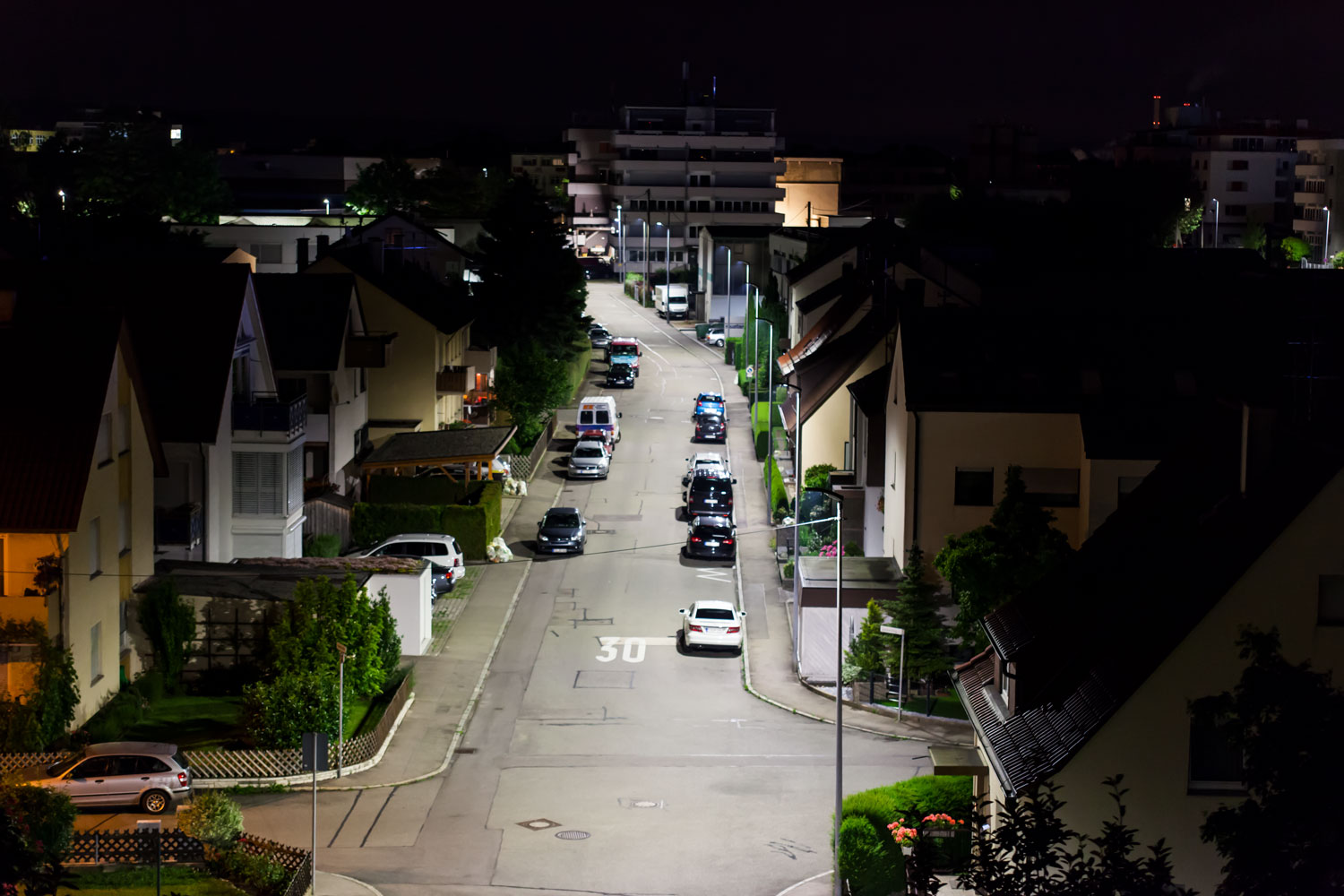

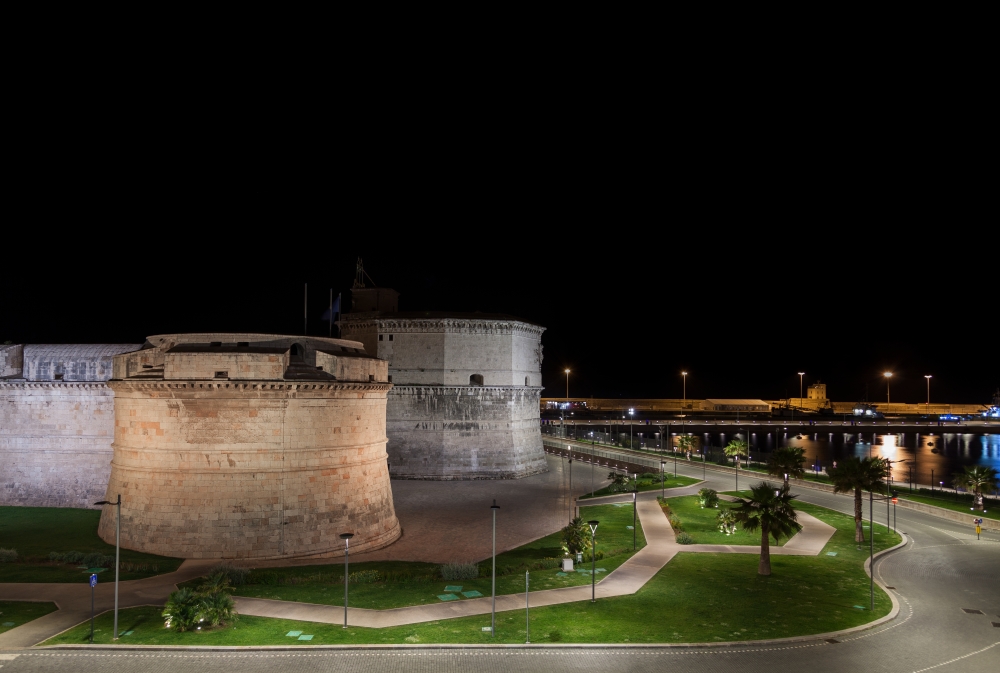

Application imagery for Wow pole-top 758x415mm


Product Details

  • LED street lighting system.
  • Pole-top installation on poles with ending part from ø 46 to ø 76 mm.
  • Reflectors in silver aluminium.
  • Die-cast aluminium optical assembly; hot dip galvanized steel tubular arms; sodium-calcium sealing glass, 5 mm thick, siliconed to frame that closes the LED compartment with a hinge and 2 screws.
  • No upward emission of light flow.
  • Adjustable optical assembly.
  • High visual comfort.
  • High performance optics (Opti Smart) and uniform light distribution.
  • No photobiological risk. This luminaire is in the “Exempt Group” (no risk linked to infrared, blue light and UV radiation) in accordance with EN 62471:2008.
  • The luminaire has luminous flux emission fully programmable directly from the product driver.
  • The driver allows the use of 3 fixed profiles (1/2/3) and one variable profile (4) for different output lumen levels and different powers.
    • Profile 1 fixed to 350mA
    • Profile 2 fixed to 450mA
    • Profile 3 fixed to 525mA
    • Profile 4 variable to 350mA
  • Compatibility with telemanagement systems thanks to “Power Supply”, dual-operation Flux regulator and “LED Driver DALI” (0-10V/1-10V) compatible with the systems on the market.
  • Common mode surge protection up to 10KV.
  • An active control system modifies the current intensity to preserve the luminous efficacy and the lifetime of the LEDs under any ambient temperature conditions.
  • Replaceable LED unit.
  • Replaceable driver unit and control gear.
  • All external screws are in stainless steel.

Colours available for Wow pole-top 758x415mm

  • 15 Grey

Got a question about our products?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 Year Warranty

Warranty registration

32 Product Codes

Filter codes by:

Colour Temperature
Power (W)
Control
Optic
IP Protection Rating
Light Source
W
Lm
K
CRI
Optic
Control
Size (mm)
Code
Downloads
Multipower with midnight recognition Ending part from ø 46 to ø 76 mm
LED
56
5990
Neutral 4000
70
A45C
Midnight recognition
758x415x210
LED
66.7
6980
Neutral 4000
70
A45C
Midnight recognition
758x415x210
LED
82.4
8350
Neutral 4000
70
A45C
Midnight recognition
758x415x210
BI41
LED
56
5320
Warm 3000
70
A45C
Midnight recognition
758x415x210
LED
66.7
6200
Warm 3000
70
A45C
Midnight recognition
758x415x210
LED
82.4
7430
Warm 3000
70
A45C
Midnight recognition
758x415x210
BN64
LED
82
8900
Neutral 4000
70
A45C
Midnight recognition
758x415x210
LED
98.1
10350
Neutral 4000
70
A45C
Midnight recognition
758x415x210
LED
121.9
12340
Neutral 4000
70
A45C
Midnight recognition
758x415x210
BI42
LED
82
7910
Warm 3000
70
A45C
Midnight recognition
758x415x210
LED
98.1
9200
Warm 3000
70
A45C
Midnight recognition
758x415x210
LED
121.9
10970
Warm 3000
70
A45C
Midnight recognition
758x415x210
BN65
LED
56
6440
Neutral 4000
70
A60
Midnight recognition
758x415x210
LED
66.7
7500
Neutral 4000
70
A60
Midnight recognition
758x415x210
LED
82.4
8980
Neutral 4000
70
A60
Midnight recognition
758x415x210
BH35
LED
56
5720
Warm 3000
70
A60
Midnight recognition
758x415x210
LED
66.7
6670
Warm 3000
70
A60
Midnight recognition
758x415x210
LED
82.4
7980
Warm 3000
70
A60
Midnight recognition
758x415x210
BN58
LED
82
9570
Neutral 4000
70
A60
Midnight recognition
758x415x210
LED
98.1
11130
Neutral 4000
70
A60
Midnight recognition
758x415x210
LED
121.9
13260
Neutral 4000
70
A60
Midnight recognition
758x415x210
BH39
LED
82
8510
Warm 3000
70
A60
Midnight recognition
758x415x210
LED
98.1
9890
Warm 3000
70
A60
Midnight recognition
758x415x210
LED
121.9
11790
Warm 3000
70
A60
Midnight recognition
758x415x210
BN59
LED
28.5
3010
Neutral 4000
70
ST0.8C
Midnight recognition
758x415x210
LED
33.9
3510
Neutral 4000
70
ST0.8C
Midnight recognition
758x415x210
LED
42.1
4250
Neutral 4000
70
ST0.8C
Midnight recognition
758x415x210
BH61
LED
28.5
2670
Warm 3000
70
ST0.8C
Midnight recognition
758x415x210
LED
33.9
3120
Warm 3000
70
ST0.8C
Midnight recognition
758x415x210
LED
42.1
3780
Warm 3000
70
ST0.8C
Midnight recognition
758x415x210
BN60
LED
28.5
3230
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
33.9
3770
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
42.1
4570
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
BH33
LED
28.5
2870
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
33.9
3350
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
42.1
4060
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
BN51
LED
50.1
5780
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
60.2
6780
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
72.4
7950
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
BH36
LED
50.1
5130
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
60.2
6030
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
72.4
7070
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
BN52
LED
64.3
7500
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
76.4
8700
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
92.2
10190
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
BH38
LED
64.3
6670
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
76.4
7730
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
92.2
9050
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
BN53
LED
76.8
9040
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
91.6
10500
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
112.2
12400
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
BH40
LED
76.8
8030
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
91.6
9330
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
112.2
11020
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
BN54
LED
83.5
9860
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
99.8
11450
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
LED
127.2
13950
Neutral 4000
70
ST1.0
Midnight recognition
758x415x210
BP10
LED
83.5
8770
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
99.8
10180
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
LED
127.2
12400
Warm 3000
70
ST1.0
Midnight recognition
758x415x210
BP11
LED
35
3800
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
41.8
4440
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
52
5370
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
BH62
LED
35
3380
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
41.8
3950
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
52
4770
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
BN61
LED
55.3
6070
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
66.8
7150
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
82.3
8550
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
BH63
LED
55.3
5390
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
66.8
6360
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
82.3
7600
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
BN62
LED
75.7
8420
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
90.5
9800
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
LED
112.2
11690
Neutral 4000
70
ST1.0C
Midnight recognition
758x415x210
BH64
LED
75.7
7480
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
90.5
8710
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
LED
112.2
10390
Warm 3000
70
ST1.0C
Midnight recognition
758x415x210
BN63
LED
36.5
4180
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
42.8
4810
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
52
5700
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
BH34
LED
36.5
3720
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
42.8
4270
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
52
5070
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
BN55
LED
57.5
6670
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
67.5
7670
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
82.3
9070
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
BH37
LED
57.5
5930
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
67.5
6810
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
82.3
8060
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
BN56
LED
76.8
9040
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
90.5
10390
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
LED
112.2
12400
Neutral 4000
70
ST1.2
Midnight recognition
758x415x210
BH41
LED
76.8
8030
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
90.5
9240
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
LED
112.2
11020
Warm 3000
70
ST1.2
Midnight recognition
758x415x210
BN57
