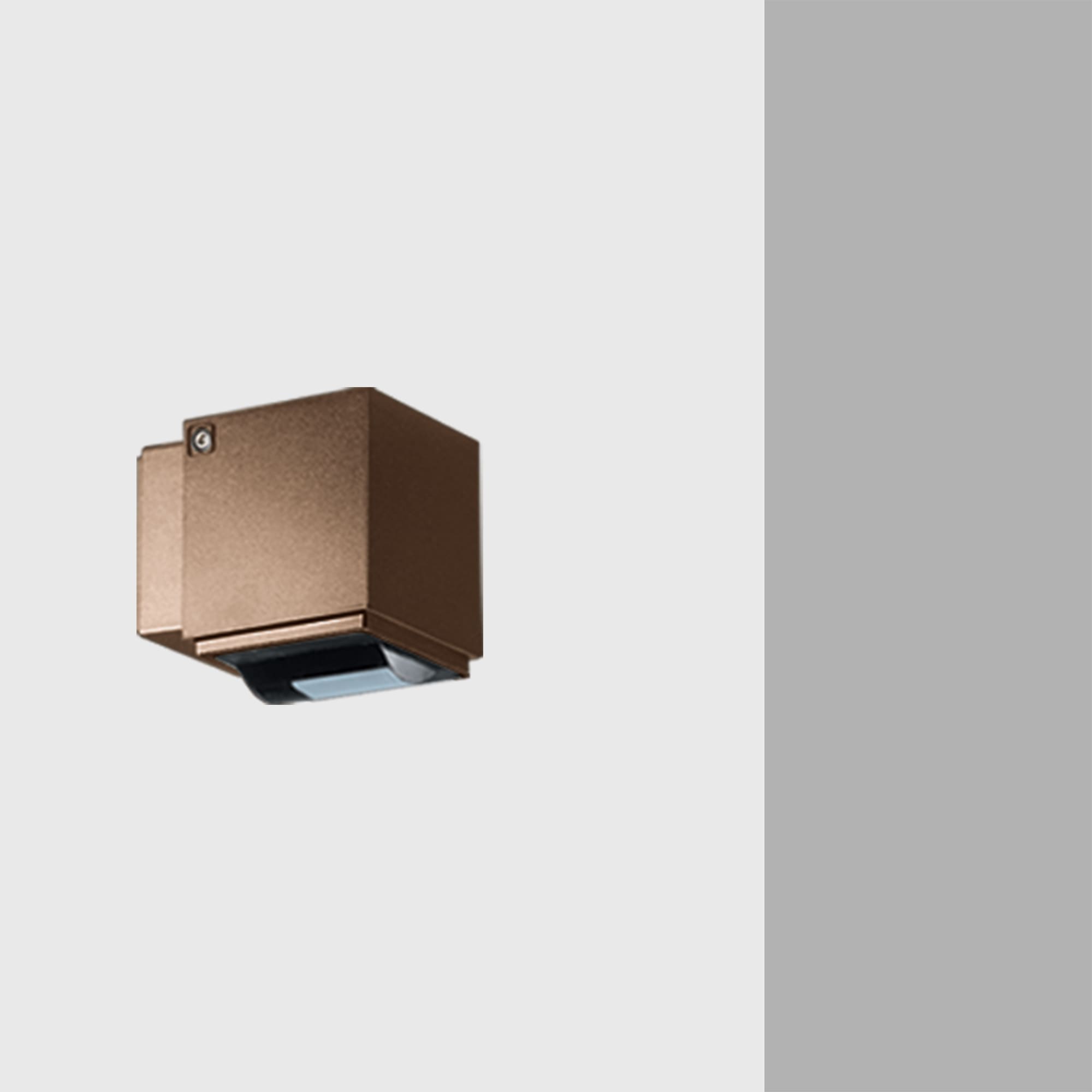

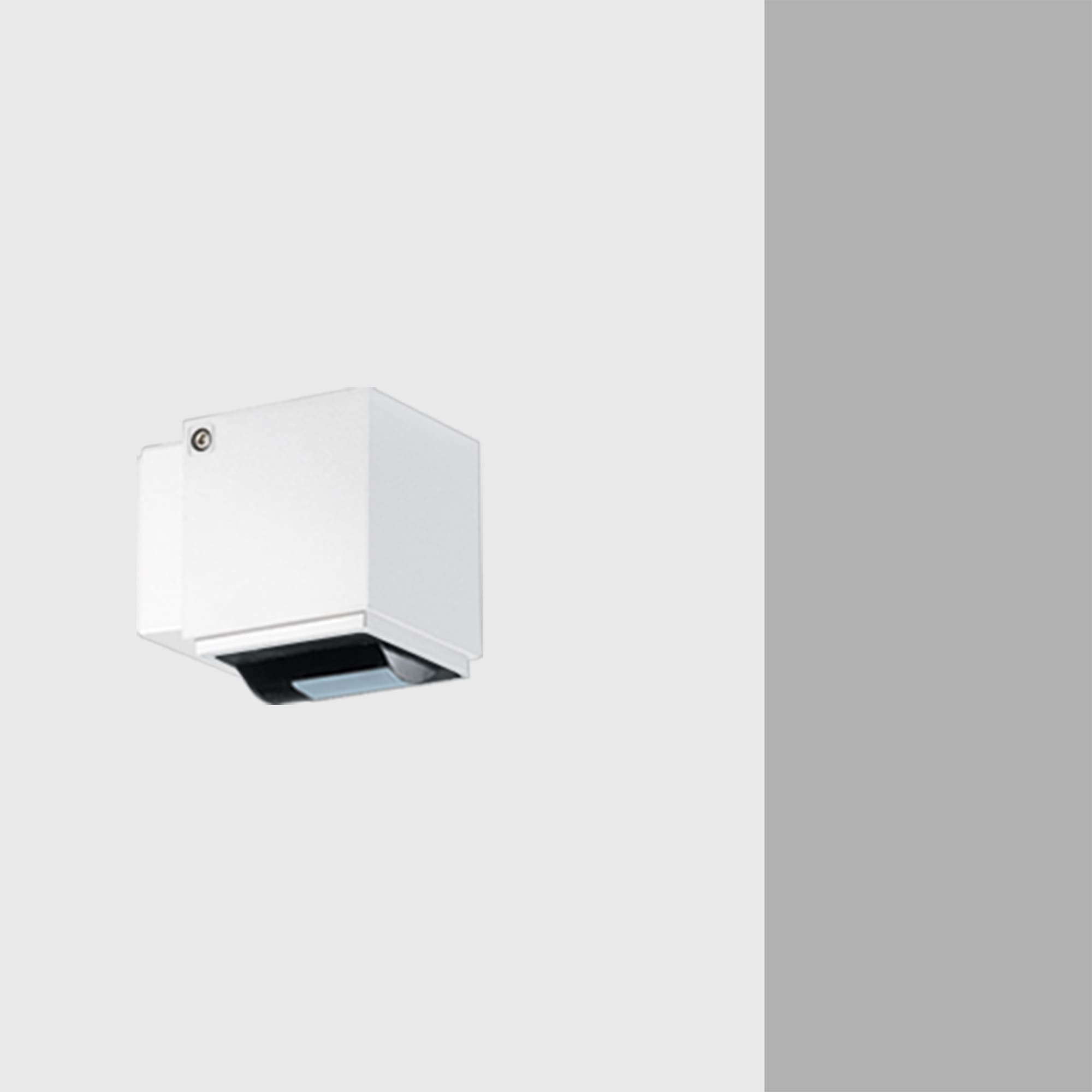

iPro - Outdoor wall-mounted luminaire - Neutral white LED - with electronic ballast Vin=100-240V ac - Light Blade optic - 7.7W 64lm - 4000K

Product Information

  • Material: Aluminium
  • Size (mm): 81x81x86, Weight (kg): 0.92
  • Design: Mario Cucinella

Available colours

  • 01 White
  • 04 Black
  • 15 Grey
  • F5 Rust brown

Lighting parameters

Electrical parameters

  • Electronic Control gear included
  • Ballast losses [W]: 1.6
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • Power Factor: See installation instructions
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

Installation information

  • Installation: For wall-mounting with the special aluminium base. Secure using screw anchors for concrete, cement and solid brick. Product can be installed with the light beam in any direction (up, down, right, left, slanting, etc.).
  • Environment: Outdoor
  • Wiring: Equipped with electronic ballast Vin=100-240V ac 50/60Hz. Polyamide PG11 double cable gland for pass-through wiring, suitable for power cables ø 6.5-11 mm.
  • This product requires one of the accessories listed below to be installed:
  • 2-way connector with 2 pole terminal BZH0
  • IP68 connector 5-pole BZS6
Accessories (3)

  • 9581
    Sealed connector kit IP68 for low voltage
    • 04 Black

  • BZH0
    2-way connector with 2 pole terminal
    • 00 Indeterminate

  • BZS6
    IP68 connector 5-pole
    • 04 Black
