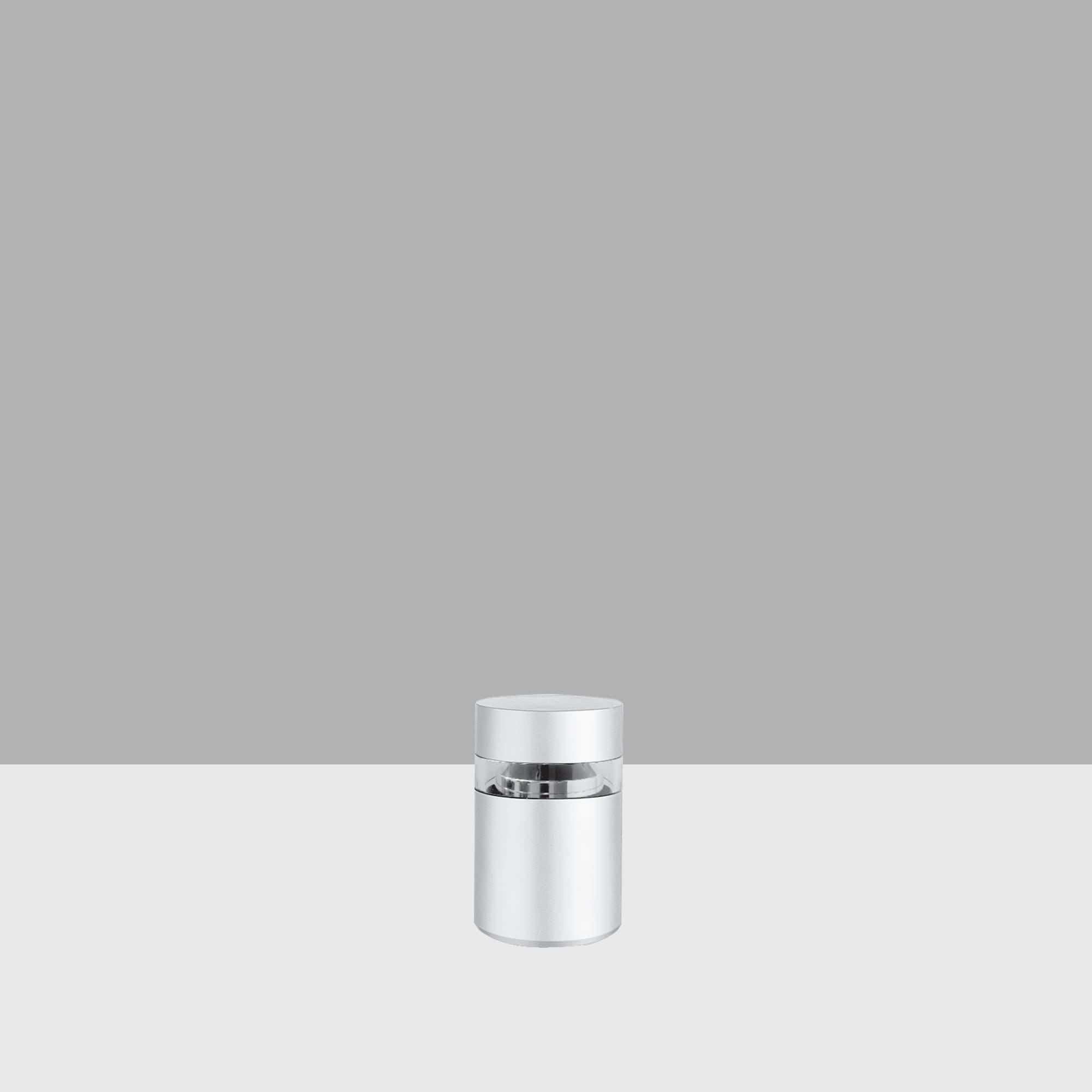

BW75

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

updated

LED
11W 2000lm - light source values
12.4W 1180lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 95lm/W
3000K CRI 80

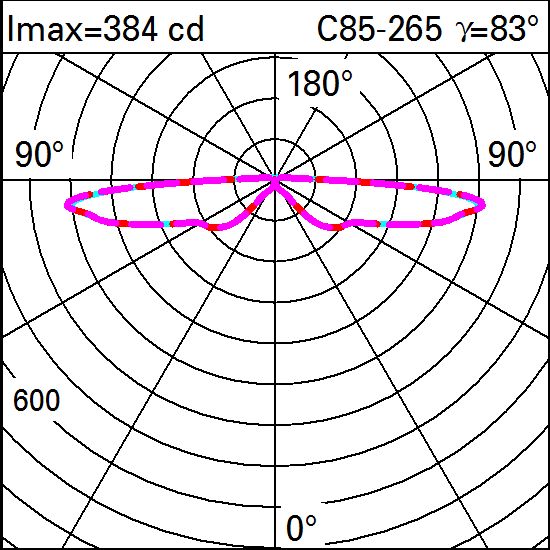

Optic: 360° distribution
Adjustability: fixed
Lm output in Emergency mode: -
Total light flux at or above 90° [Lm]: 94
Light Output Ratio (L.O.R.) [%]: 59
Life Time 1: 100,000h - L80 - B10 (Ta 25°C)
Life Time 2: 100,000h - L80 - B10 (Ta 40°C)

Electronic Control gear included
Control: DALI-2
Ballast losses [W]: 1.4
N° lamps assembly: 1
Operating ambient temperature range: da -30°C a 50°C.
Power Factor: See installation instructions
Inrush Current: 9.2 A / 25 µs
Circuit Braker:
B10A: 27 luminaires
B16A: 44 luminaires
C10A: 45 luminaires
C16A: 74 luminaires
Perc Min Dimmer: 5
Overvoltage Protection: 6kV Common mode & 6kV Differential mode

Installation: Can be installed directly using Fischer fixings (on the ground), or using a fixing base and fixing plate with clamps coated in Dacromet, for an additional guarantee against corrosion (to be ordered separately).
Environment: Outdoor
Wiring: Inside the luminaire is the removable component-holding plate, secured to the box with captive screws and the quick coupling for the electrical connections. DALI Electronic control gear. Complete with rubber output cable A07RN-F 4x1mm L=1700 mm.
