JBM7

Updating Product Data...

Photometric configuration only available on screens above 1024px

updated

LED
25W 2630lm - light source values
31.6W 658lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 20lm/W
RGBW - 4000K i
The technical values specified refer to the product at maximum power.
Optic: D - Diffused light
Adjustability: fixed
Lm output in Emergency mode: -

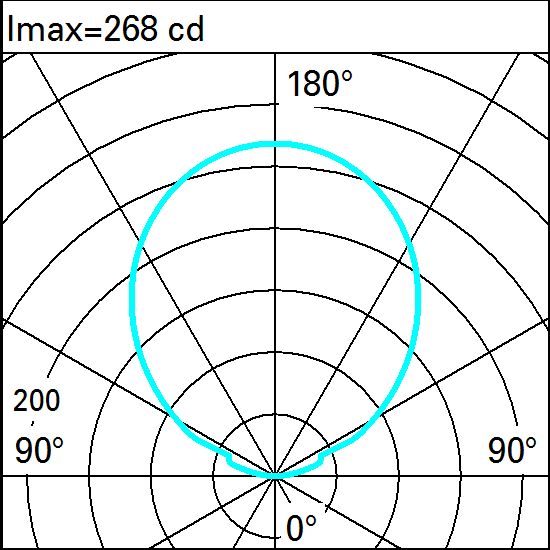

Total light flux at or above 90° [Lm]: 658
Light Output Ratio (L.O.R.) [%]: 25
Life Time 1: 90,000h - L80 - B10 (Ta 25°C)

Electronic Driver included
Control: DMX-RDM
Ballast losses [W]: 6.6
N° lamps assembly: 1
Operating ambient temperature range: da -20°C a +35°C. (*)
Power Factor: See installation instructions
Inrush Current: 10 A / 200 µs
Circuit Braker:
B10A: 18 luminaires
B16A: 30 luminaires
C10A: 31 luminaires
C16A: 51 luminaires
Perc Min Dimmer: 1
Overvoltage Protection: 4kV Common mode & 4kV Differential mode
Dimming Mode: CCR

Complete immersion
for limited periods,
not suitable for use
in swimming pools
or fountains.

Installation: The product is fixed to the outer casing using two Torx type securing screws. The unit can be floor-recessed using the outer casing for installation or ground-recessed without the outer casing.
Environment: Outdoor
Wiring: Product complete with dimmable DMX512-RDM driver located inside the device and 220÷240V ac electronic control gear positioned in a box separate from the optical assembly, with an output cable.

B916

Suction cup
- 00 Indeterminate
X209

Plastic casing for installation on floors + end cap

Size (mm): ø247x268
- 04 Black
BZN7

Y connector with 5 poles IP68 - For the connection of the DMX or DALI signal cable and power supply cable
- 00 Indeterminate
BZQ7

End cap for connectors + 120 ohm thermal resistance
- 00 Indeterminate
BZS6

IP68 connector 5-pole
- 04 Black
