View Opti Linear belongs to View 210x146mm

P642

Updating Product Data...

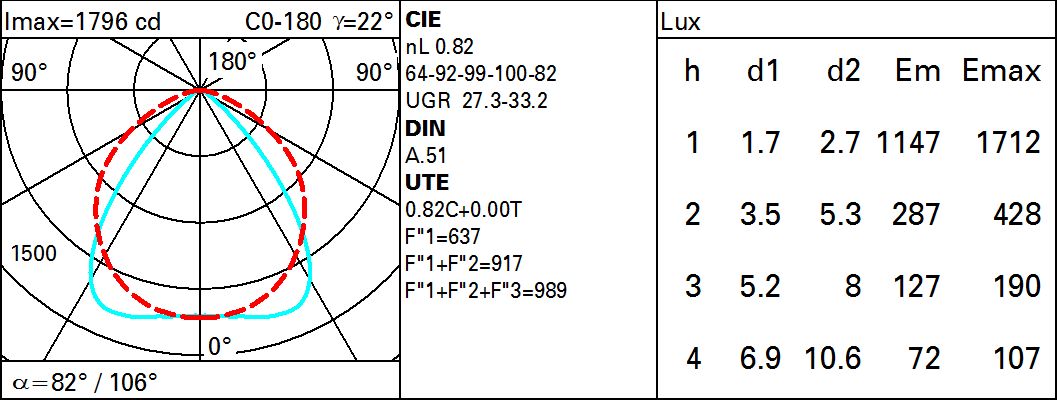

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

updated

View Opti Linear - large body - neutral white - wide flood optic - 44.2W 3959.6lm - 4000K

Product Information

  • Material: aluminium and thermoplastic
  • Size (mm): 210x146, Weight (kg): 2.11
  • Design: iGuzzini / Arup

Available colours

  • 04 Black
  • 47 White / Black

Lighting parameters

Electrical parameters

  • Electronic Driver included
  • Control: DALI-2
  • Ballast losses [W]: 4.2
  • N° lamps assembly: 1
  • Power Factor: See installation instructions
  • Inrush Current: 24 A / 192 µs
  • Circuit Braker:
    B10A: 8 luminaires
    B16A: 14 luminaires
    C10A: 14 luminaires
    C16A: 23 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

  • for optical
    assembly

Installation information

  • Installation: On an electrified track or base
  • Environment: Indoor
  • Wiring: Product complete with electronic components
Accessories (6)

  • MXV8
    Anti-glare screen
    • 04 Black

  • MXW0
    Asymmetrical screen
    • 04 Black

  • MXZ2
    Ceiling base
    Size (mm): ø104x34
    • 01 White
    • 04 Black

  • MXZ3
    Recessed base Hole for installation 110-115mm
    • 01 White
    • 04 Black

  • MXZ5
    Casing for adapter IP40
    • 01 White
    • 04 Black

  • X208
    Adapter reinforcement (wall installation)
    • 01 White
    • 04 Black
updated
Do you want to know more?
Make Enquiry 5 year product warranty included
