QJ47

Updating Product Data...

Photometric configuration only available on screens above 1024px

updated

LED
28W 2700lm - light source values
32.8W 2133lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 65lm/W
Tunable White CRI 90

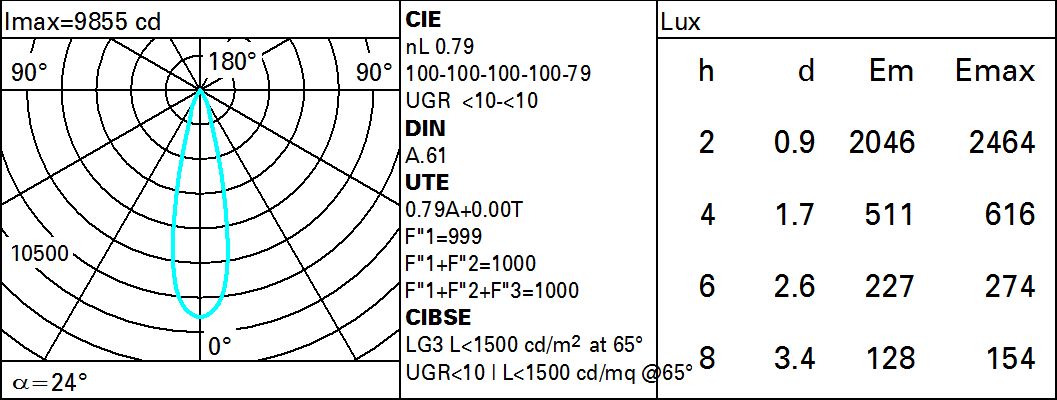

Optic: M - Medium 25°
Adjustability: fixed
Lm output in Emergency mode: -
Total light flux at or above 90° [Lm]: 0
Light Output Ratio (L.O.R.) [%]: 79
Life Time 1: > 50,000h - L80 - B10 (Ta 25°C)

Dimmable Electronic Driver included
Control: DALI-2
Ballast losses [W]: 4.8
N° lamps assembly: 1
Power Factor: See installation instructions
Inrush Current: 5 A / 50 µs
Circuit Braker:
B10A: 31 luminaires
B16A: 50 luminaires
C10A: 52 luminaires
C16A: 85 luminaires
Perc Min Dimmer: 1
Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Installation: The luminaire is recessed in the specific adapter (QJ93) by means of a steel wire spring, previously installed on the ceiling that can be 12.5 / 15 / 20 mm thick. A special protective sheath allows finishing operations on the plasterboard to be simplified and speeded up.
Environment: Indoor
Wiring: DALI control gear units included. Different management systems are available with a separate code. For technical details, properties and connection procedures see the instruction sheet.
This product requires one of the accessories listed below to be installed:
Minimal flange - for false ceilings between 12.5 mm and 20 mm thick - for recessed 268x22 mm QJ93

QJ93

Minimal flange - for false ceilings between 12.5 mm and 20 mm thick - for recessed 268x22 mm
- 01 White
