Laser Blade Encastré 5 Cellules | Cadre et Sans Cadre
Overview
- W system: 13W
- W source: 9.8W
- lm system: 324 - 1028lm
- Luminous efficiency (real value): 24 - 78lm/W
- CRI: 90, 92
- Optic and beam angle: S - Spot 13°, F - Flood 32°, WF - Wide Flood 47°, GL - general lighting, WW - Wall Washer, Wall Washer LGC, MOL - Medium oval longitudinal, MOT - Medium oval transversal, General Lighting Pro, WOL - Wide oval longitudinal, WOT - Wide oval transversal
- Designer: iGuzzini

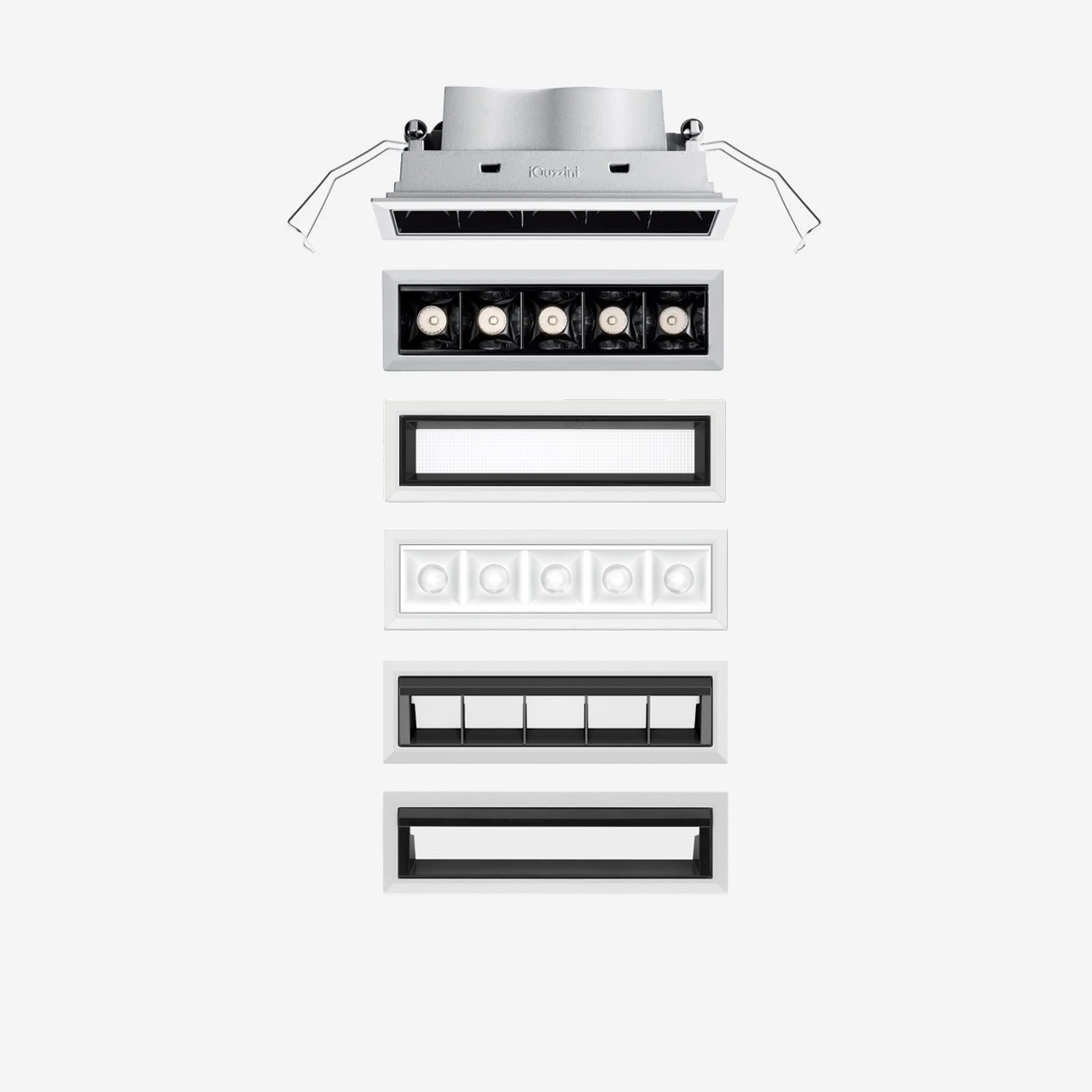

Types d'optiques
-
S - Spot -
F - Flood -
WF - Wide Flood -
GL - General lighting -
WW - Wall Washer -
WW-LGC -
MOL - Medium oval longitudinal -
MOT - Medium oval transversal -
General Lighting Pro -
WOL - Wide oval longitudinal -
WOT - Wide oval transversal
Couleurs
-
Black / Black -
White / Black -
Grey / Black -
Black -
White / White -
White -
Transparent white -
Transparent black
Températures de Couleur
-
Static White -
Tunable White (2700K to 6500K)
Ratings
-
IP20 -
IP23
Certifications et Approbations
-
UL - Listed for Dry Location -
CE -
Chicago Plenum Compliant -
5 year limited warranty -
Title 24 JA8
Key Features
-
UGR<10 -
UGR<16
