QJ07

Updating Product Data...

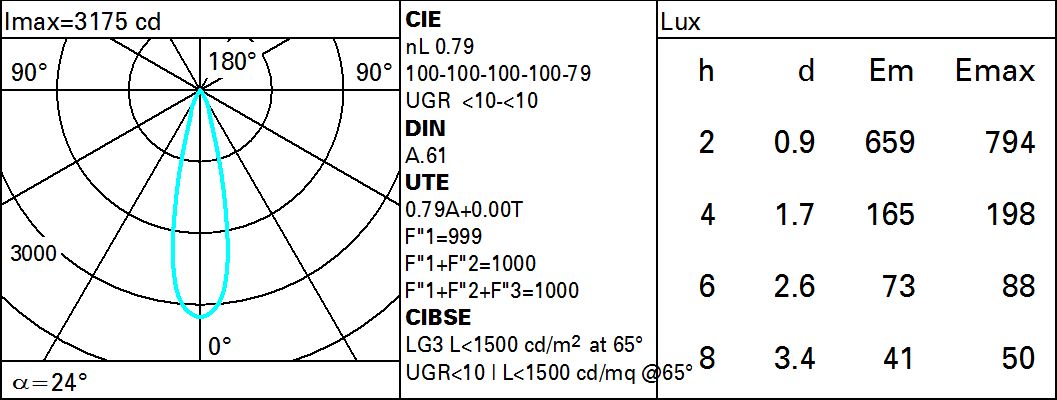

Photometric configuration only available on screens above 1024px

Attention! Code no longer in production. Please use the Code Finder to find the alternative that best suits your needs.

updated

LED
9.9W 870lm - light source values
12.7W 687lm - system values i
System flux (lm): total light flux emitted by the product. System power (W): energy consumption of the product, including power components.
Luminous Efficiency (system value): 54lm/W
2700K CRI 90
Optic: M - Medium 25°
Adjustability: fixed
Lm output in Emergency mode: -
Total light flux at or above 90° [Lm]: 0
Light Output Ratio (L.O.R.) [%]: 79
Life Time 1: > 50,000h - L80 - B10 (Ta 25°C)

Installation: The luminaire is recessed in the specific adapter (QJ90) by means of a steel wire spring, previously installed on the ceiling that can be 12.5 / 15 / 20 mm thick. A special protective sheath allows finishing operations on the plasterboard to be simplified and speeded up.
Environment: Indoor
Wiring: On the power supply unit with terminal board included.
This product requires one of the accessories listed below to be installed:
Minimal flange - for false ceilings between 12.5 mm and 20 mm thick - for recessed 89x22 mm QJ90

QJ90

Minimal flange - for false ceilings between 12.5 mm and 20 mm thick - for recessed 89x22 mm
- 01 White
