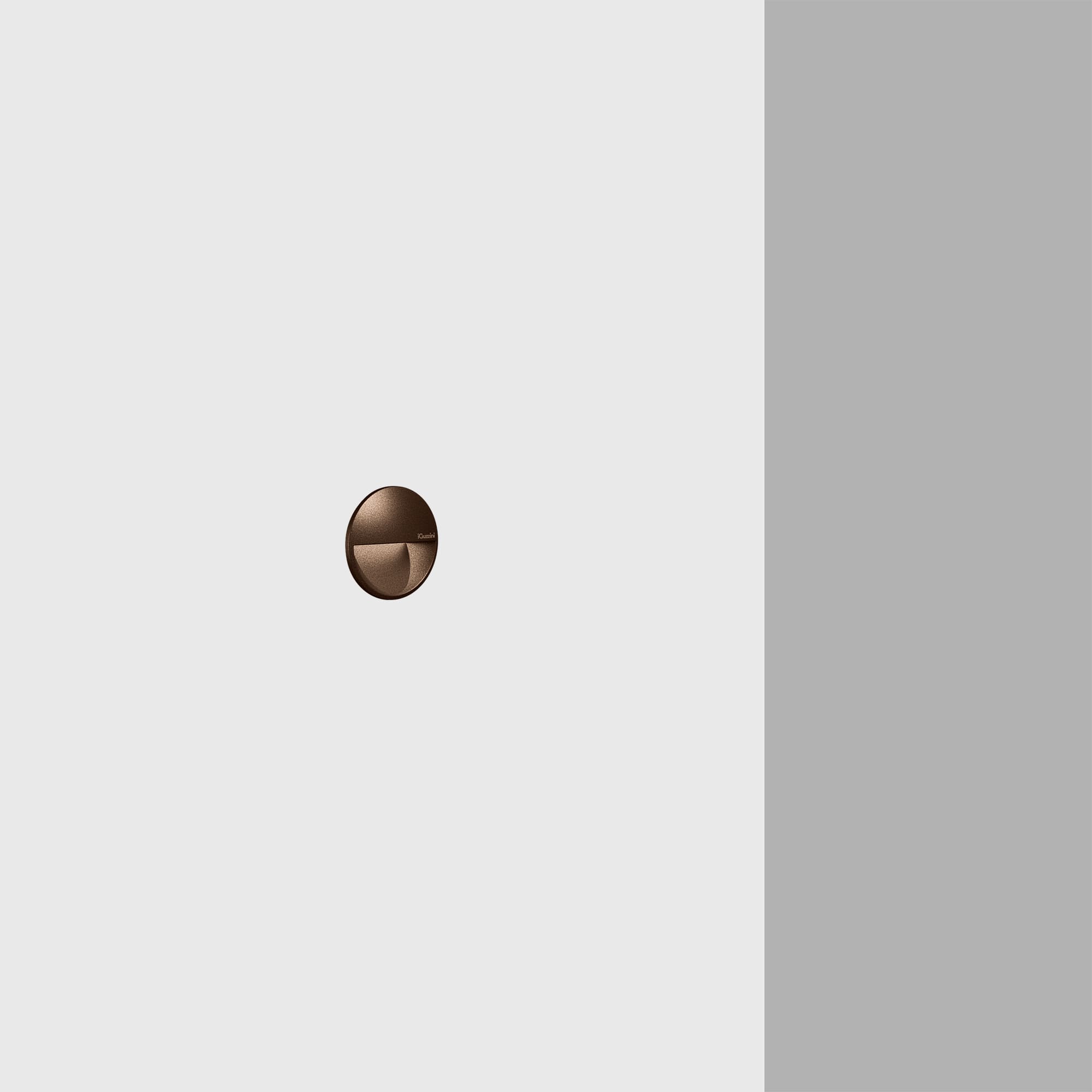

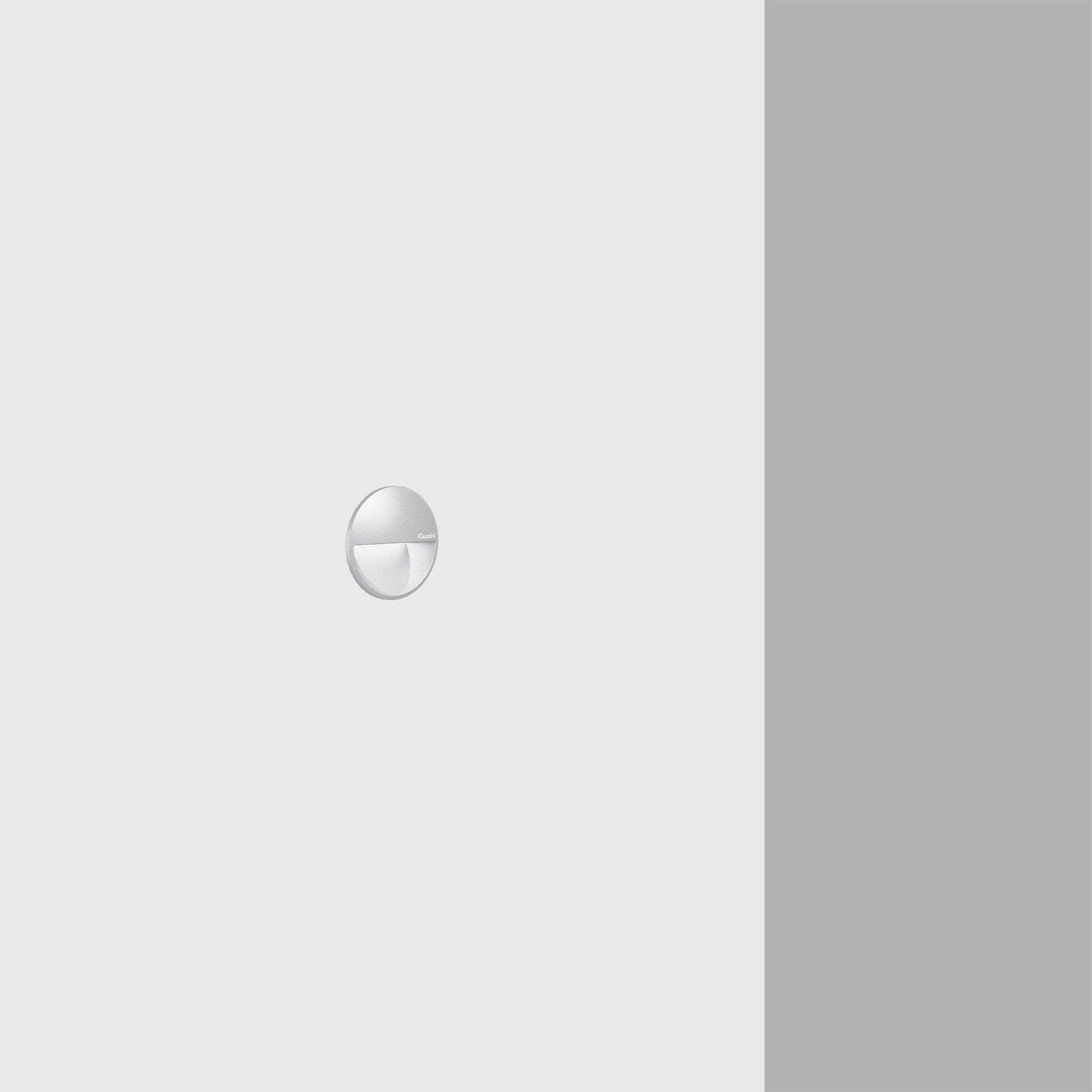

Walky - Round optic assembly Ø50mm – AL optic – Warm White LED – 24Vdc - 1.5W 30.6lm - 3000K

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): ø50, Weight (kg): 0.07
  • Design: iGuzzini

Available colours

Lighting parameters

Electrical parameters

  • Electronic Driver not included
  • Control: PWM
  • Ballast losses [W]: 0.4
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • LED Current [mA]: 65 / 65 / 65 / 65

Technical Specifications

Installation information

  • Installation: Black plastic outer casing. Disposable polystyrene formwork for creating the outer casing housings for installations in concrete walls that are then plastered or finished with bricks so the end surface is flush with the optical assembly.
  • Environment: Outdoor
  • Wiring: Version with remote 24Vdc ballast.
  • This product requires one of the accessories listed below to be installed:
  • Sealed connector kit IP68 for low voltage 9581
Accessories (30)
  • X330

    Plastic casing - round
    Size (mm): ø55x65
    • 15 Grey
  • X343

    Disposable polystyrene precast outer-casing mould|p|For concrete, plastered surfaces and tiles applications - round/square
    Size (mm): 150x150x84
    • 00 Indeterminate
  • X439

    Walky ø 50 mm bollard mounting accessory - h = 400 mm - without power supply
    Size (mm): 35x57x400
    • 01 White
    • 04 Black
    • 15 Grey
    • F5 Rust brown
  • X449

    Counter-plate with anchor bolts
    • 00 Indeterminate
  • 9908

    Constant voltage power supply unit non dimmable track DIN 10W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 0,4A dimensions: 18x68x93
    Size (mm): 17x92x68
    • 00 Indeterminate
  • 9909

    Constant voltage power supply unit non dimmable track DIN 24W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 1A dimensions: 35x68x94
    Size (mm): 36x94x68
    • 00 Indeterminate
  • 9910

    Constant voltage power supply unit non dimmable track DIN 72W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 3A dimensions: 70x68x94
    Size (mm): 95x72x68
    • 00 Indeterminate
  • 9911

    Constant voltage power supply unit non dimmable track DIN 96W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 4A dimensions: 93x66x105
    Size (mm): 95x72x68
    • 00 Indeterminate
  • 9912

    Constant voltage power supply unit non dimmable track DIN 240W - VIN = 90-240VAC/DC 50/60Hz Vout = 24V IMAX = 10A dimensions: 63x114x125
    Size (mm): 63x114x125
    • 00 Indeterminate
  • BZK0

    Constant voltage power supply unit non dimmable track DIN 120W - VIN = 90-240VAC/DC 50/60Hz Vout = 24V IMAX = 5A dimensions: 40x114x125
    Size (mm): 40x114x125
    • 00 Indeterminate
  • BZK1

    Constant voltage power supply unit non dimmable track DIN 480W - VIN = 90-240VAC/DC 50/60Hz Vout = 24V IMAX = 20A dimensions: 86x129x125
    Size (mm): 86x114x125
    • 00 Indeterminate
  • MWK4

    Electronic constant voltage power supply 50W 24V - Iout=2A dim. 225x60x36h
    Size (mm): 225x60x36
    • 00 Indeterminate
  • MWK5

    Electronic constant voltage power supply 70W 24V - IOUT=2,9A dim. 225x60x36h
    Size (mm): 225x60x36
    • 00 Indeterminate
  • X182

    Constant voltage power supply unit non dimmable 40W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 1,67A dimensions:171x61,5x36,8
    Size (mm): 171x61x36
    • 00 Indeterminate
  • X183

    Constant voltage power supply unit non dimmable 80 W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 3,4A dimensions:195,6x61,5x38,8
    Size (mm): 195x61x38
    • 00 Indeterminate
  • X184

    Constant voltage power supply unit non dimmable 120W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 5A dimensions:220x68x38,8
    Size (mm): 220x68x38
    • 00 Indeterminate
  • X185

    Constant voltage power supply unit non dimmable 185W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 7,8A dimensions:228x68x38,8
    Size (mm): 228x68x38
    • 00 Indeterminate
  • X186

    Constant voltage power supply unit non dimmable 240W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 13,34A
    Size (mm): 244x68x38
    • 00 Indeterminate
  • X187

    Constant voltage power supply unit non dimmable 320W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 13,34A
    Size (mm): 252x90x43
    • 00 Indeterminate
  • MZ14

    Constant voltage power supply unit IP20 96W - VIN = 120-277VAC 50/60Hz Vout = 24VDC IMAX = 4A dimensions: 300x40x22
    Size (mm): 300x40x21
    • 00 Indeterminate
  • MZ15

    Constant voltage power supply DALI dimmable IP20 100W - VIN = 220-240 Vac 50/60Hz Vout = 24 Vdc IMAX = 4,16A
    Size (mm): 295x43x30
    • 00 Indeterminate
  • PC15

    Constant voltage power supply unit non dimmable track DIN 120W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 5A dimensions: 40x114x125
    Size (mm): 40x114x125
    • 00 Indeterminate
  • PC16

    Constant voltage power supply unit non dimmable track DIN 240W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 10A dimensions: 63x114x125
    Size (mm): 63x114x125
    • 00 Indeterminate
  • PC17

    Constant voltage power supply unit non dimmable track DIN 480W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 20A dimensions: 86x129x125
    Size (mm): 86x114x125
    • 00 Indeterminate
  • 9639

    DMX/DALI-PWM interface LED dimmer - 1-4ch 12/24/48V 720W max
    Size (mm): 153x50x23
    • 00 Indeterminate
  • MWP3

    DALI-PWM interface LED dimmer 1-4 ch 12/24/48V 120/240W
    Size (mm): 181x42x20
    • 00 Indeterminate
  • 9581

    Sealed connector kit IP68 for low voltage
    • 04 Black
  • 9582

    IP67 box for power supply - dim. 140x230x95h (6PG)
    Size (mm): 230x140x95
    • 00 Indeterminate
  • BZ33

    IP67 box for power supply - dim. 280x190x130h (10PG)
    Size (mm): 280x190x130
    • 00 Indeterminate
  • X653

    Cable box IP66 - dim 378x188x130h
    Size (mm): ø130
    • 00 Indeterminate
