Linealuce 27 surface Full Remote High Performance Linear System

Linealuce evolves thanks to a new, high-performance miniaturised version ensuring maximum integration with architecture and space.

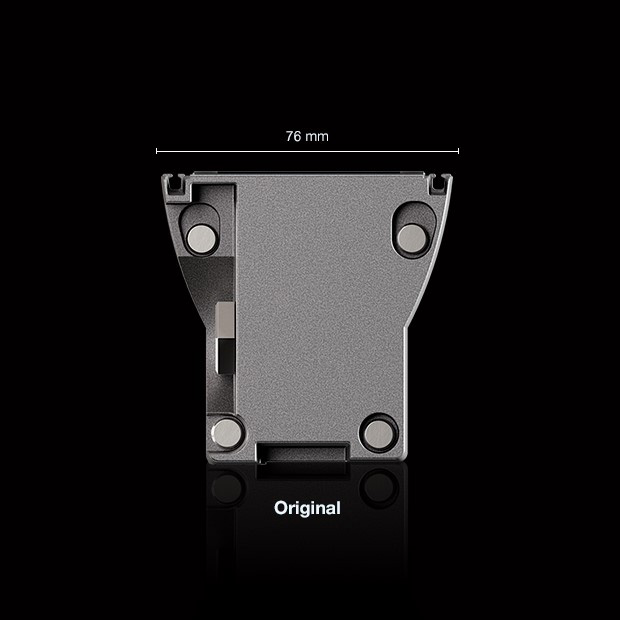

linealuce_dimensioni_1_mobile

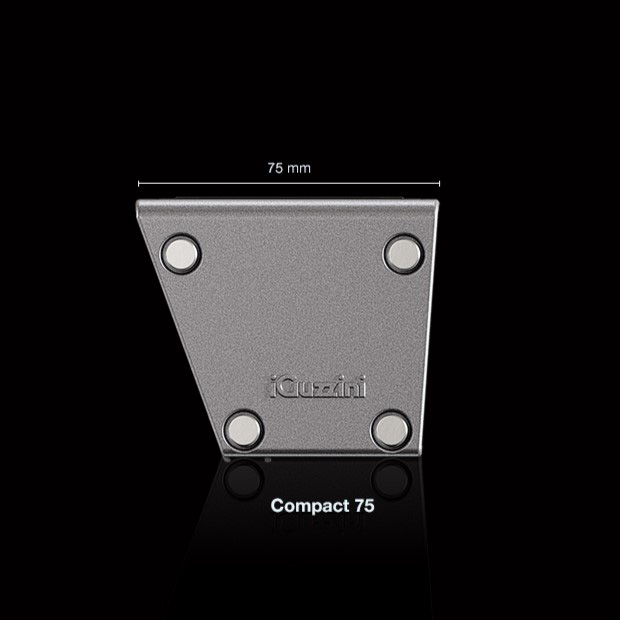

linealuce_dimensioni_2_mobile

linealuce_dimensioni_3_mobile

linealuce_dimensioni_4_mobile

linealuce_dimensioni_5_mobile

“We have turned Linealuce into just 1⅛ in (27mm). Initially, there were floodlights that filled visual space whereas now they almost disappear into the architecture. ” - Jean-Michel Wilmotte

Tone on tone
The finishes respect the colour shades of the architecture to integrate and merge with it.

Rust brown
Black
White
Gray

Small, everywhere
So small that they integrate into all architectural scales, urban and residential alike

105 lm/W

Power, efficiency and visual comfort by choosing the best technology for every effect



Patented optics and specific technologies mean perfect effects can always be created while also combining efficiency and visual quality. The Opti Beam Lens ensures uniformity and softness; Opti Beam Reflector for visual comfort and efficiency, while the No-dot solution allows uniform light lines to be created.

Opti Beam Reflector

Opti Beam Lens

No Dot

Wall Grazing distribution
with the Opti Beam Lens
Vertical light to enhance
the surface and texture.

Spot and Floodlight Distribution with Opti Beam Reflector
Floodlight illumination to control variable light with various apertures.

No-Dot Distribution
Uniform light to highlight architecture or a path.

Elliptical distribution
with optibeam lenses
Floodlight to illuminate variable geometries at apertures of 22°/60° to adapt to the setting.

Wall Grazing distribution with the Opti Beam Lens
Vertical light to enhance
the surface and texture.

Spot and Floodlight Distribution with optibeam reflectors/lenses
Floodlight illumination to control variable light with various apertures.

No-Dot Distribution
Continuous, uniform light blending into the architecture and illuminating a wall or pathway.

Elliptical distribution with optibeam lenses
Floodlight to illuminate variable geometries at apertures of 22°/60° to adapt to the setting.

Easy on the eyes

Light emission is extremely soft and uniform for excellent visual comfort

Miniaturized and accessories built into the frame to shape the light emitted and improve comfort.

Miniaturised accessories integrated into the frame for shaping and softening the light.
Built-in comfort
A micro-louver is incorprated in the product for a super-comfort version.

Versatile installation

Three different installation typologies to achieve perfect effects on any surface. Remote power supply.

1. Ceiling /
2. Balustrade - Windowsill /
3. Vertical wall /
4. Horizontal wall
/ 5. Ground with spike

Plate
For surface installations, creating continuous lines of light with the no-dot version or circular floodlighting for the floodlight versions
Arm
For surface up/down installation at various distances from the wall to obtain the desired effect with wall grazing versions
Lengths = 2¼" - 2¾" - 4¾" - 8¾"
Finishes: 13 Steel - 04 Black
Spike
For ground installation with a single or double spike to enhance green areas, gardens and flower beds.

Continual line
Built-in cable with connector and casing cover to create a end-to-end installation by combining several Linealuce 27 surface Full Remote elements reducing shadow areas to the minimum.

1. Cover /
2. Intermediate arm

Placed in a row, these modules create continuous, uniform and seamless lines of light.

Depending on the architectural protrusions, the 50 or 100 mm arms ensure impeccable wall grazing effects. A special built-in accessory provides visual comfort without compromising the uniformity of the lighting.

The 200 mm arm means the spot/medium optic can generate a wall grazing effect that enhances the entire setting in all its richness, as well as highlighting details.

The spike installation means that the wall grazing optic can perfectly illuminate paths and passages. And thanks to the floodlight optic, evocative scenes can be created with the vegetation by playing with light, shadows, volumes and perspectives.

Dynamic light

Light - by its very nature - is variable. We create dynamic intensity, shades and colours

Smart Light control
Easily to manage using the Smart Light Control application on smartphones, with a BLE-Dali interface.
In addition, other wired control systems can also be used (e.g, DMX, KNX) with a BLE-Dali interface.

Four colour temperatures and tunable white, tunable warm and RGBwhite versions (with two shades of white) mean you can choose the ideal light to create dynamic scenes

Scene 1
Scene 2
Scene 3

Sustainability
More than 90% of the environmental impact of a lighting fixture derives from its use.

Sustainability
More than 90% of the environmental impact of a lighting fixture derives from its use.

High performance, efficiency up to 100 lm/W, made to measure light distribution, reduced amounts of material and the use of materials such as recycled and 100% recyclable glass and aluminium. It can be easily disassembled by specialist operators (installers, technicians, WEEE recovery centres) using appropriate tools.

High performance, efficiency up to 100 lm/W, made to measure light distribution, reduced amounts of material and the use of materials such as recycled and 100% recyclable glass and aluminium. It can be easily disassembled by specialist operators (installers, technicians, WEEE recovery centres) using appropriate tools.High performance, efficiency up to 100 lm/W, made to measure light distribution, reduced amounts of material and the use of materials such as recycled and 100% recyclable glass and aluminium. It can be easily disassembled by specialist operators (installers, technicians, WEEE recovery centres) using appropriate tools.

The industrial assembly, painting, injection moulding and machining processes performed in our Recanati factory (Italy) only uses electricity from renewable sources.

We have calculated the energy impact of lighting for a facade equipped with Linealuce fluorescent and Linealuce 27 surface Full Remote. With the same luminaires, Linealuce 27 surface Full Remote achieves an energy saving of 51.6%. Furthermore, the longer life of the LED has an impact on maintenance costs and consequently helps save money. All this ensures lower environmental impact and a much more sustainable project.

- 20.871 Kg
emissions avoided
- 51,6 %
reduction
1.159
equivalent trees

Discover the full Linealuce range

L = 1.08ft (329mm) 4 W / 200 lm - 2200 / 2700 / 3000 / 4000 K
L = 2.05ft (625mm) 8 W / 570 lm - 2200 / 2700 / 3000 / 4000 K / Tunable Warm / Tunable White / RGBW (3000 / 4000K)
L = 3.02ft (920mm) 11 W / 880 lm - 2200 / 2700 / 3000 / 4000 K / Tunable Warm / Tunable White / RGBW (3000 / 4000K)
L = 3.99ft (1216mm) 15 W / 1150 lm - 2200 / 2700 / 3000 / 4000 K / Tunable Warm / Tunable White / RGBW (3000 / 4000K)
L = 4.96ft (1511mm) 19 W / 1860 lm - 2200 / 2700 / 3000 / 4000 K / Tunable Warm / Tunable White / RGBW (3000 / 4000K)
