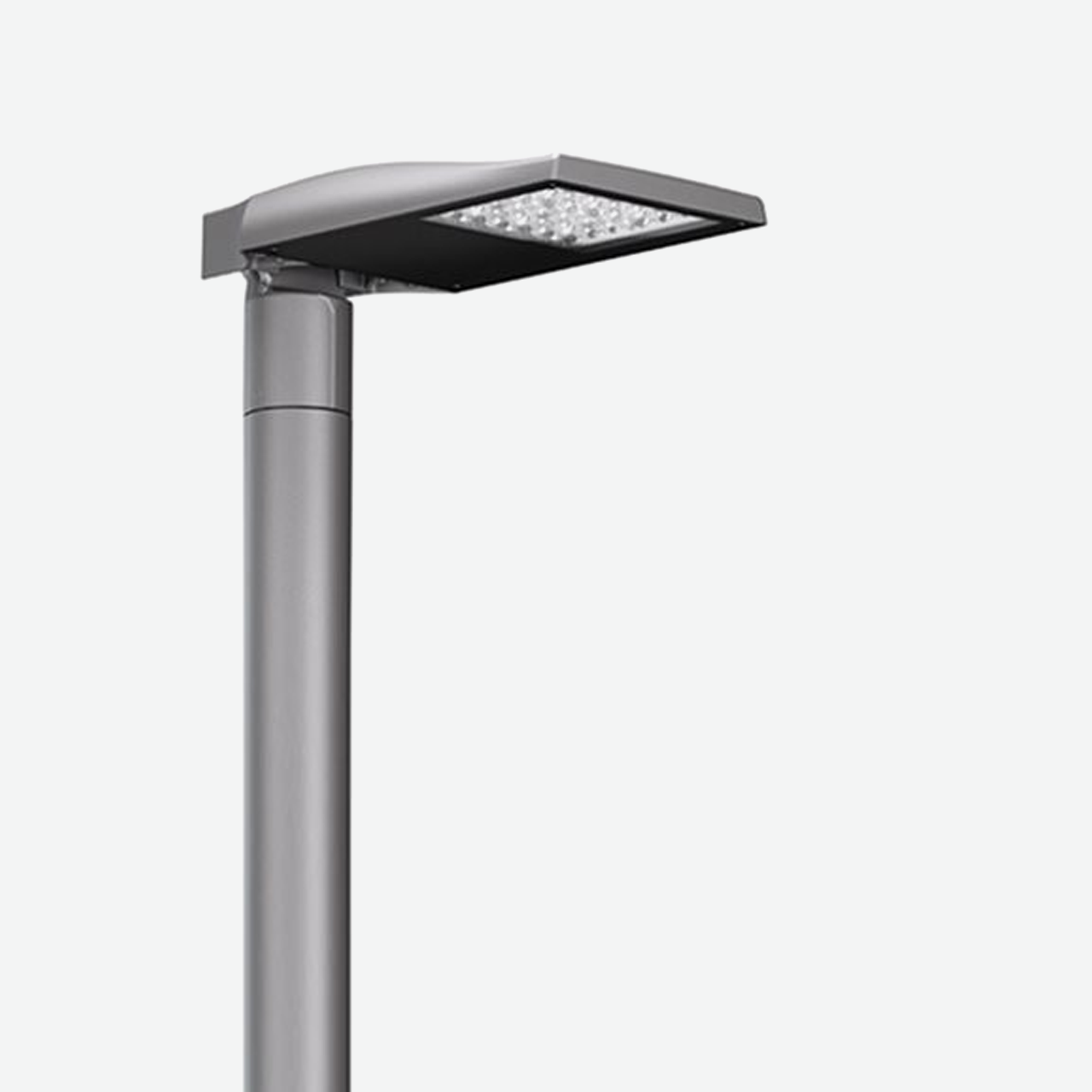

Street 529x268mm - Asymmetric optic A60

Type III Short

Street is equipped with an asymmetric polymeric White Optismart Lens (A60 – Type III Short).
Versions available with CRI70 or CRI80.
Four available color temperatures: 2200K, 2700K, 3000K, 4000K.
Both Middle of the Night / DALI NFC versions and versions with a 4pin Zhaga socket—positioned either only on the bottom (Zhaga Down) or on both top and bottom (Zhaga Up/Down)—as well as 7pin NEMA versions are available.
The product can be configured with three polemounting interfaces: Ø42–60 mm, Ø42–76 mm, and Ø60–76 mm.
Surge protection: 10 kV Common Mode (CM), 6 kV Differential Mode (DM).
Four outgoing cable length options available: no cable, 0.7 m, 6 m, 10 m, and 15 m.
All external screws are A2 stainless steel.
Dark Sky Approved: the IDA Fixture Seal of Approval certifies that the luminaire complies with Dark Sky requirements, specifically:
- Maximum color temperature of 3000K.
- Upward light emission limited to 0.5% of total output, or 50 lumens, with no more than 10 lumens in the 90–100° UL zone.
- Luminaires must allow fixed mounting to ensure installation consistent with testing; if necessary, a ±10° leveling adjustment is permitted.
- Luminaires must be dimmable down to 10% of nominal power.
Available in three versions:
- tool operated opening (Tool frame*)
- tool less opening (No tool frame **)
- full glass frame (Tool glass***)
