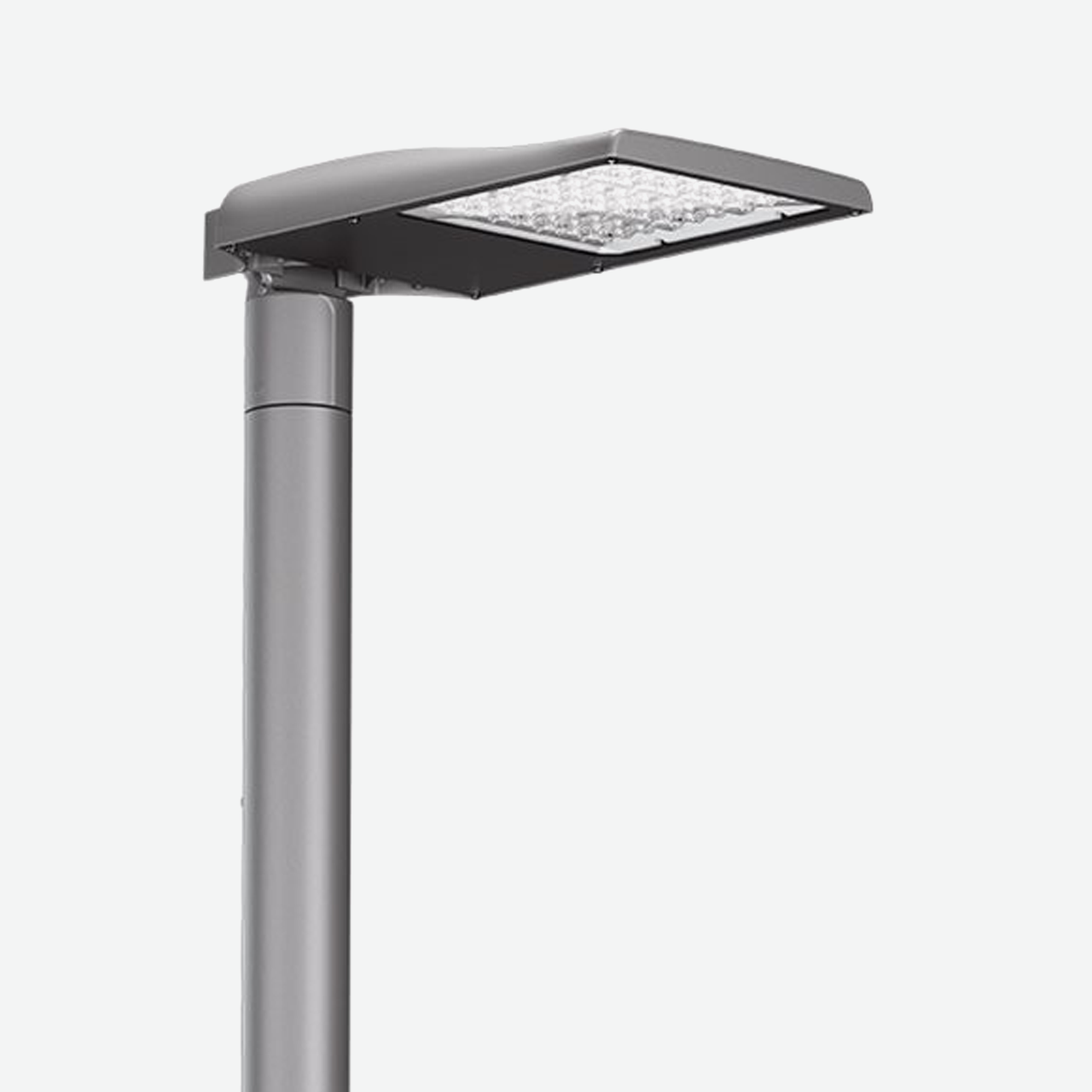

Street 644x327mm - road optic ST1.2
Type II Short
/street-pole-top-650x328mm-01-group-line-iguzzini.png)
Overview
- Urban and roadway lighting system with LED light sources.
- Optical compartment made of diecast aluminum with a 5 mm tempered sodium calcium glass cover.
- No upward light dispersion.
- Adjustable optical compartment. - Street is equipped with a polymeric White Optismart Lens roadway optic (ST1.2 – Type II Short).
- Versions available with CRI70 or CRI80.
- Four available color temperatures: 2200K, 2700K, 3000K, 4000K.
- Both Middle of the Night / DALI NFC versions and versions with a 4pin Zhaga socket—positioned either only on the bottom (Zhaga Down) or on both top and bottom (Zhaga Up/Down)—as well as 7pin NEMA versions are available.
- The product can be configured with three polemounting interfaces: Ø42–60 mm, Ø42–76 mm, and Ø60–76 mm.
- Surge protection: 10 kV Common Mode (CM), 6 kV Differential Mode (DM).
- Four outgoing cable length options available: no cable, 0.7 m, 6 m, 10 m, and 15 m.
- All external screws are A2 stainless steel.
- Dark Sky Approved: the IDA Fixture Seal of Approval certifies that the luminaire complies with Dark Sky requirements, specifically:
- Maximum color temperature of 3000K.
- Upward light emission limited to 0.5% of total output, or 50 lumens, with no more than 10 lumens in the 90–100° UL zone.
- Luminaires must allow fixed mounting to ensure installation consistent with testing; if necessary, a ±10° leveling adjustment is permitted.
- Luminaires must be dimmable down to 10% of nominal power.
- Available in two versions:
- tool operated opening (Tool frame*)
- tool less opening (No tool frame **)
