Evolution Tower. Visual comfort for Transneft employees and guests

EVOLUTION-TOWER-01
EVOLUTION-TOWER-02
EVOLUTION-TOWER-03
EVOLUTION-TOWER-09
EVOLUTION-TOWER-10
EVOLUTION-TOWER-12

About Project

Evolution Tower, the skyscraper designed by Tony Kettel and Karen Forbes, became a landmark in Moscow’s new urban skyscape throughout its construction between 2011 and 2014, the year in which it was completed. Since 2016, when it was bought by Transneft, the building has been the headquarters of the largest state-owned oil pipeline company in the world. The tower is 255 metres and 55 floors high and is now the largest and most efficient office building in Russia. It is lit entirely by LEDs and boasts one of the most sophisticated management and control systems on the planet.

For iGuzzini, the Evolution Tower was a highly complex project that it completed successfully thanks to its knowhow and by providing a global solution: dynamic lighting for both the exteriors and the indoor offices. The spiral structure of the building required the design and construction of specific solutions that were perfected with the lighting designer.

Lighting the interiors of the Evolution Tower was a challenging project as the layout of its different environments - all with their own specific functions, such as computer work stations, corridors, shared spaces and reception areas - vary significantly due to the twisting shape of the structure that makes the tower such a distinctive landmark on Moscow’s urban skyline.

The general contractor, Velesstroy, entrusted Dean Skira with the complex task of developing a lighting design that would offer a high level of visual comfort for employees and energy consumption of less than 5W per square metre, while also recounting the importance, history and values of Transneft.

As these requests had to be created for rooms with variable sizes that are neither square nor rectangular, and whose glass walls tilt at different angles, the lighting concept was based on low luminance luminaires. The positioning of these products was also carefully researched to ensure the level of uniformity requested by the customer for the specific work areas was achieved. All the luminaires are DALI and therefore dimmable. They are also connected to a network of presence and daylight sensors controlled by algorithms that are part of the structure’s building automation.

The fact that this project involved spaces whose size can be varied enormously, led to Dean Skira choosing luminaires from the entire Laser Blade range. This guarantees a consistent style, while allowing the various requirements in the different environments to be met successfully. The general preference was for shorter 1, 3 and 5 cell modules, because they are extremely adaptable given their compact size. A bespoke 5-cell Laser Blade Adjustable Wall Washer luminaire was specifically created too.

To obtain an optimum, diffuse and homogeneous effect in the work environments with video-screens and therefore to integrate the effect of the low luminance luminaires that risk creating shadows that are too sharp, vertical wall lighting was used. In certain environments, Underscore light lines with grazer effects were used and in others, Laser Blade L Adjustable luminaires fitted with Wall Washer optics were chosen to light the side walls vertically. In certain areas, standard lamps were added to integrate and personalise the lighting. In the work environments, on the other hand, to soften the lighting effect, an Adjustable version of the Laser Blade L luminaire was installed with special filters to broaden the luminaires’ light emission. To illuminate the corridors that join the various work areas and have glass walls on one side and masonry walls on the other, Laser Blade L Adjustable luminaires were installed with twin General Lighting and Wall Washer optics. The General Lighting optic guarantees general lighting, while the Wall Washer creates uniform lighting on the side masonry walls. For these spaces, Dean Skira also asked iGuzzini to eliminate glare completely. So, the wall washer luminaires were fitted with a new Super Comfort LGC (Longitudinal Glare Control) optic that blocks longitudinal glare completely. Along the corridors, the emergency lighting is created by Laser Blade inOut luminaires with an IP65 rating. These are water resistant, so the luminaires will continue to operate even if the fire prevention sprinkler system is activated. This also maintains the style of the luminaires throughout the different areas.

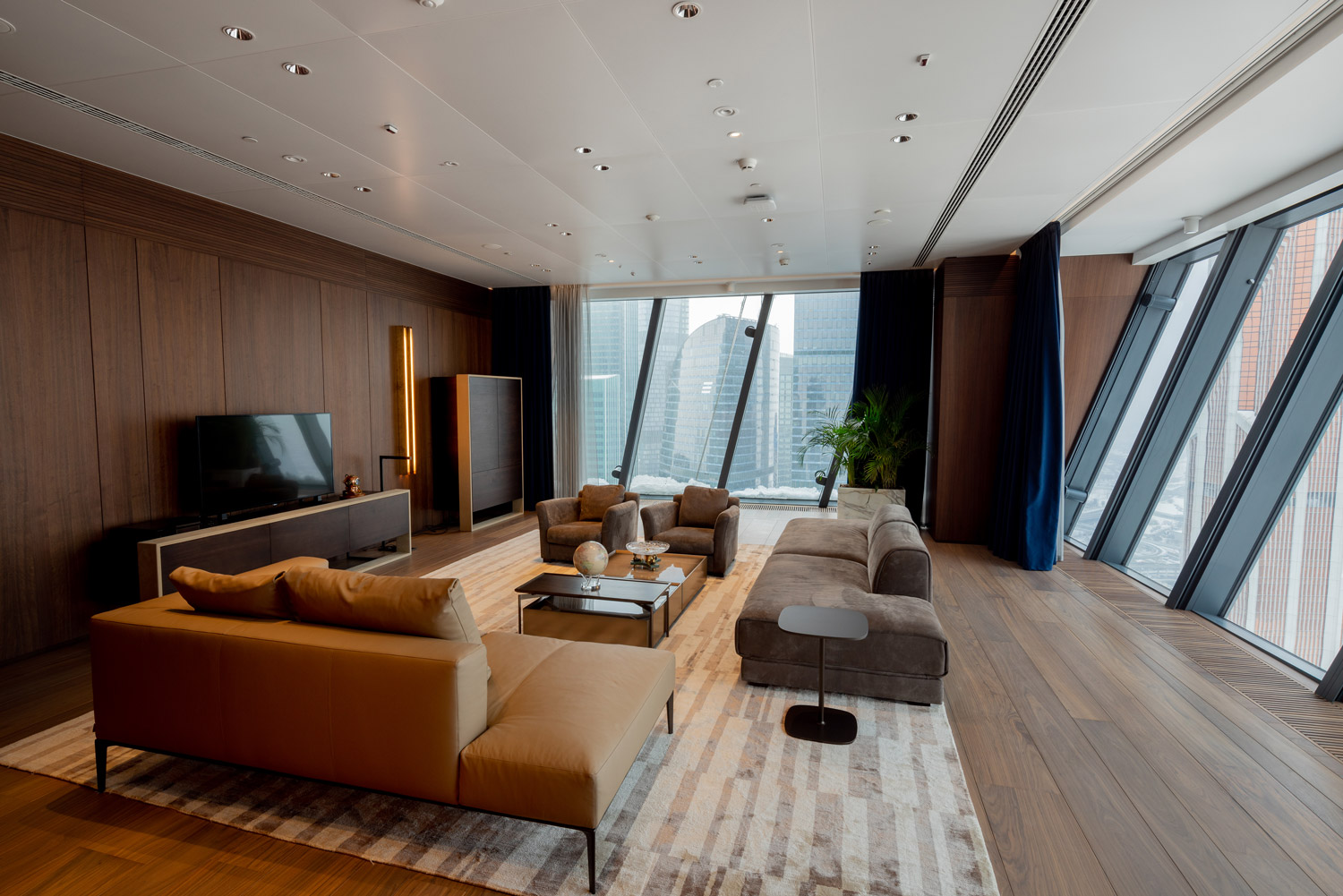

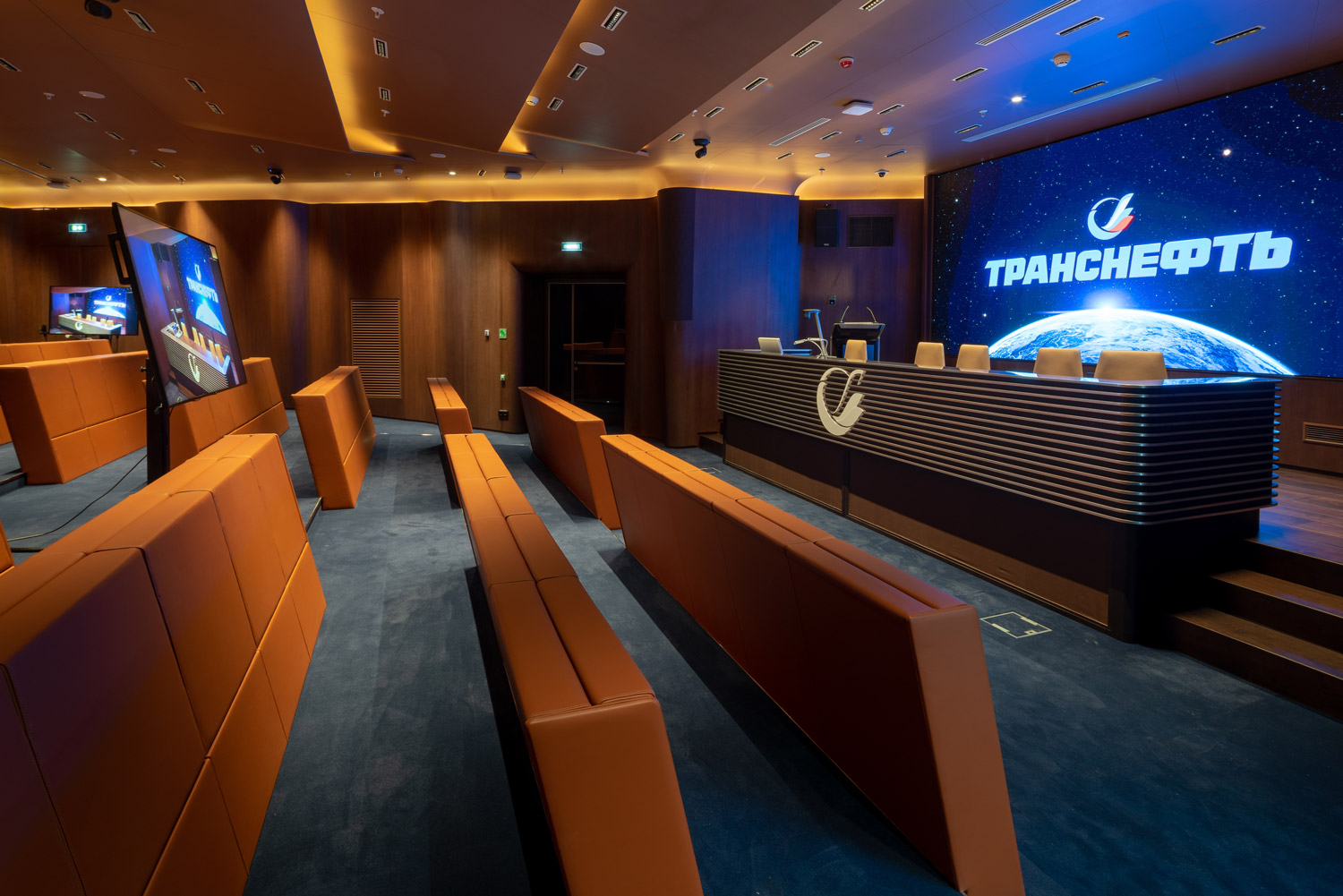

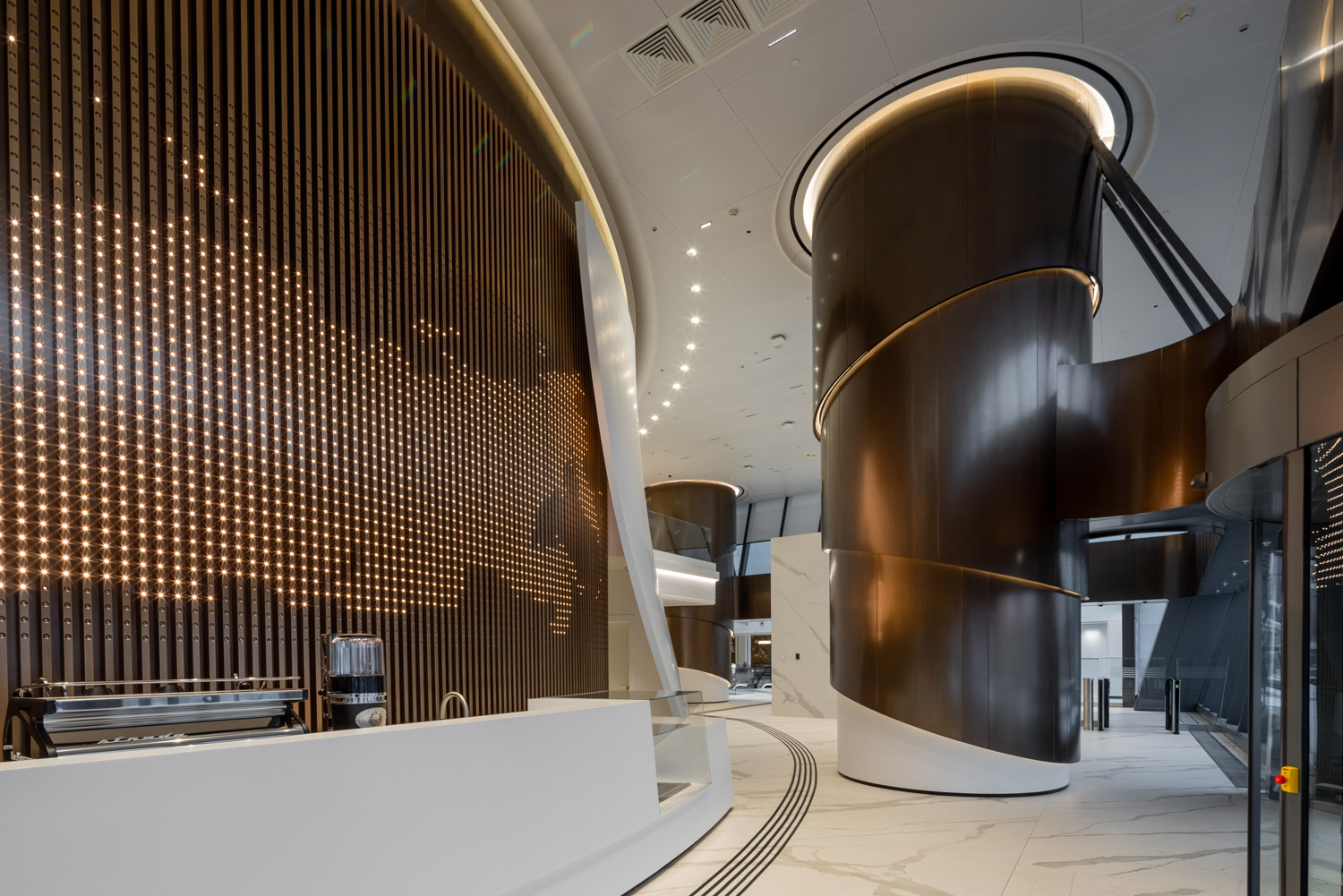

In the entrance halls, which are characterised by large, ample spaces, marble and elements depicting Transneft’s activities, Laser Blade System 53 luminaires fitted with High Contrast modules were installed. A slight formal differentiation was adopted for certain areas used for special events and meetings. In these offices, recessed Laser and Laser Blade XS luminaires were fitted.

Dean Skira wanted to give all these environments the same colour temperature and colour rendering (4000 K and CRI 90) and within the set deadlines, iGuzzini succeeded in supplying all the luminaires ordered with these specifications.

Another valid request for the entire building was the use of a flicker free driver that does not disturb video communications, as due to the international nature of the company’s affairs, video calls and connections are used daily in many of the work spaces. This request was also particularly pressing for areas with surveillance cameras. All the drivers provided for the interior lighting system, therefore have this characteristic.

Working on a similar project?

Need more information?

  • Year:
    2019
  • Client:
    Transneft
  • Architectural project:
    Tony Kettle with Karen Forbes and Philipp Nikandrov
    RMJM
  • Lighting project:
    Skira Architectural Lighting - Dean Skira
  • General contractor:
    Velesstroy
  • Interior architects:
    IQ
    Elforma
  • Photographer:
    Ivan Smelov

Project Quote

"We can consider this project as “Total lighting design” in which the essential ingredient for successful outcome, was the synergy between my ideas and ability of iGuzzini to materialize them."

(Dean Skira - Skira Architectural Lighting
