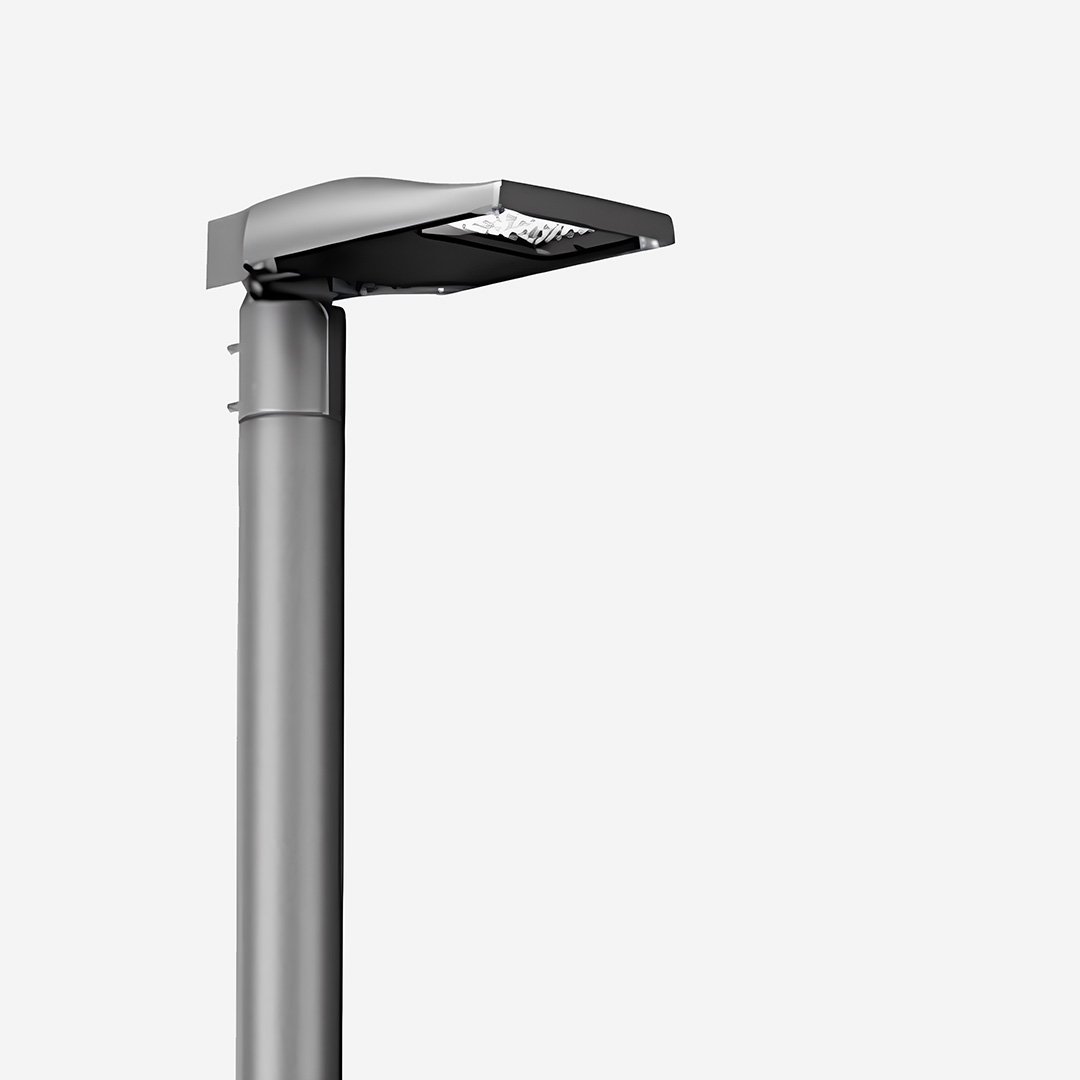

Street 416x211mm - Asymmetric optic A60

Type III Short

Urban and roadway LED lighting system.
Optical compartment made of die‑cast aluminum with a 5 mm tempered sodium calcium glass cover.
No upward light dispersion.
Adjustable optical compartment.
Street is equipped with an asymmetric polymeric White Optismart Lens optic (A60 – Type III Short).
Available versions with CRI70 or CRI80.
Four available color temperatures: 2200K, 2700K, 3000K, 4000K.
Both Middle of the Night / DALI NFC versions and versions with a 4‑pin Zhaga socket are available, positioned either only on the bottom (Zhaga Down) or both top and bottom (Zhaga Up/Down).
The product can be configured with two pole‑mounting interfaces: one for Ø42–60 mm and one for Ø60–76 mm.
Surge protection: 10 kV Common Mode (CM), 6 kV Differential Mode (DM).
Four outgoing cable lengths available: 0.7 m, 6 m, 10 m, and 15 m.
All external screws are made of A2 stainless steel.
Dark Sky Approved: The IDA Fixture Seal of Approval certifies that outdoor luminaires comply with Dark Sky requirements, specifically:
- Maximum color temperature of 3000K.
- Upward light emission limited to 0.5% of total output or 50 lumens, with no more than 10 lumens in the 90–100° UL zone.
- Luminaires must allow fixed mounting to ensure installation as tested; if necessary, a ±10° leveling adjustment is permitted.
- Luminaires must be dimmable down to 10% of nominal power.
