Light Up - Floor recessed Earth D=250mm - Warm white - Wide Flood optic - DALI - 30.1W 3584.3lm - 3000K

Product Information

  • Material: stainless steel
  • Size (mm): ø250x203, Weight (kg): 4.50
  • Design: iGuzzini

Available colours

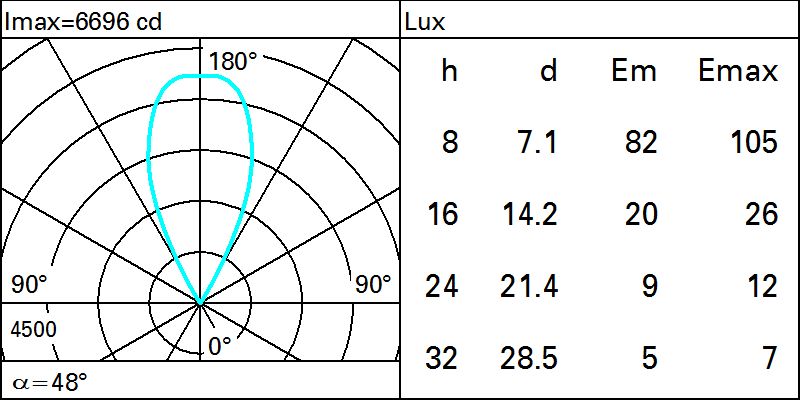

Lighting parameters

Electrical parameters

  • Electronic Control gear included
  • Control: DALI-2
  • Ballast losses [W]: 3.1
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -25°C a 50°C.
  • Power Factor: See installation instructions
  • Inrush Current: 10 A / 200 µs
  • Circuit Braker:
    B10A: 18 luminaires
    B16A: 30 luminaires
    C10A: 31 luminaires
    C16A: 51 luminaires
  • Perc Min Dimmer: 1
  • Overvoltage Protection: 4kV Common mode & 4kV Differential mode

Technical Specifications

  • Complete immersion
    for limited periods,
    not suitable for use
    in swimming pools
    or fountains.

Installation information

  • Installation: The product is fixed to the outer casing using two Torx type securing screws. The unit can be floor-recessed using the outer casing for installation or ground-recessed.
  • Environment: indoor/outdoor
  • Wiring: Product complete with 220÷240V ac DALI dimmable electronic control gear, positioned in a box separated by the optical assembly and outlet cable.
Accessories (9)
  • X201

    Honeycomb louvre - Opti Beam Lens and Opti Beam Reflector
    Size (mm): ø100x4
    • 04 Black
  • X202

    Refractor for elliptical distribution - Opti Beam Lens and Opti Beam Reflector
    Size (mm): ø100x4
    • 24 Clear transparent
  • X207

    Diffuser glass - Opti Beam Lens and Opti Beam Reflector
    Size (mm): ø100x4
    • 65 Nitric
  • B916

    Suction cup
    • 00 Indeterminate
  • X209

    Plastic casing for installation on floors + end cap
    Size (mm): ø247x268
    • 04 Black
  • 9581

    Sealed connector kit IP68 for low voltage
    • 04 Black
  • B915

    IP68 box for multiple connections - dim. 135x82x70h
    Size (mm): 135x82x70
    • 04 Black
  • X188

    2-way junction connector - IP68
    Size (mm): ø23
    • 00 Indeterminate
  • X189

    4-way junction connector - IP68
    Size (mm): 80x54x28
    • 00 Indeterminate
