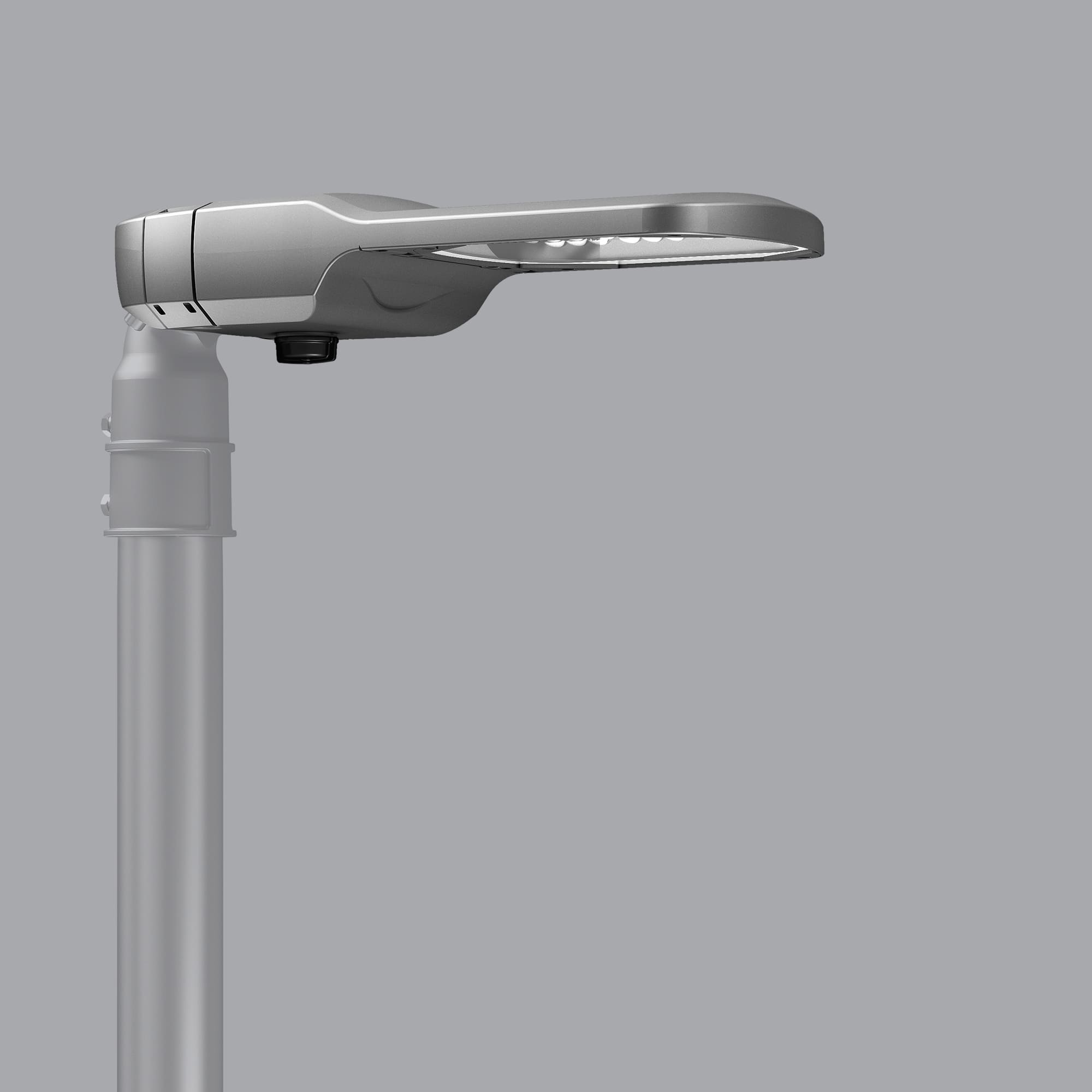

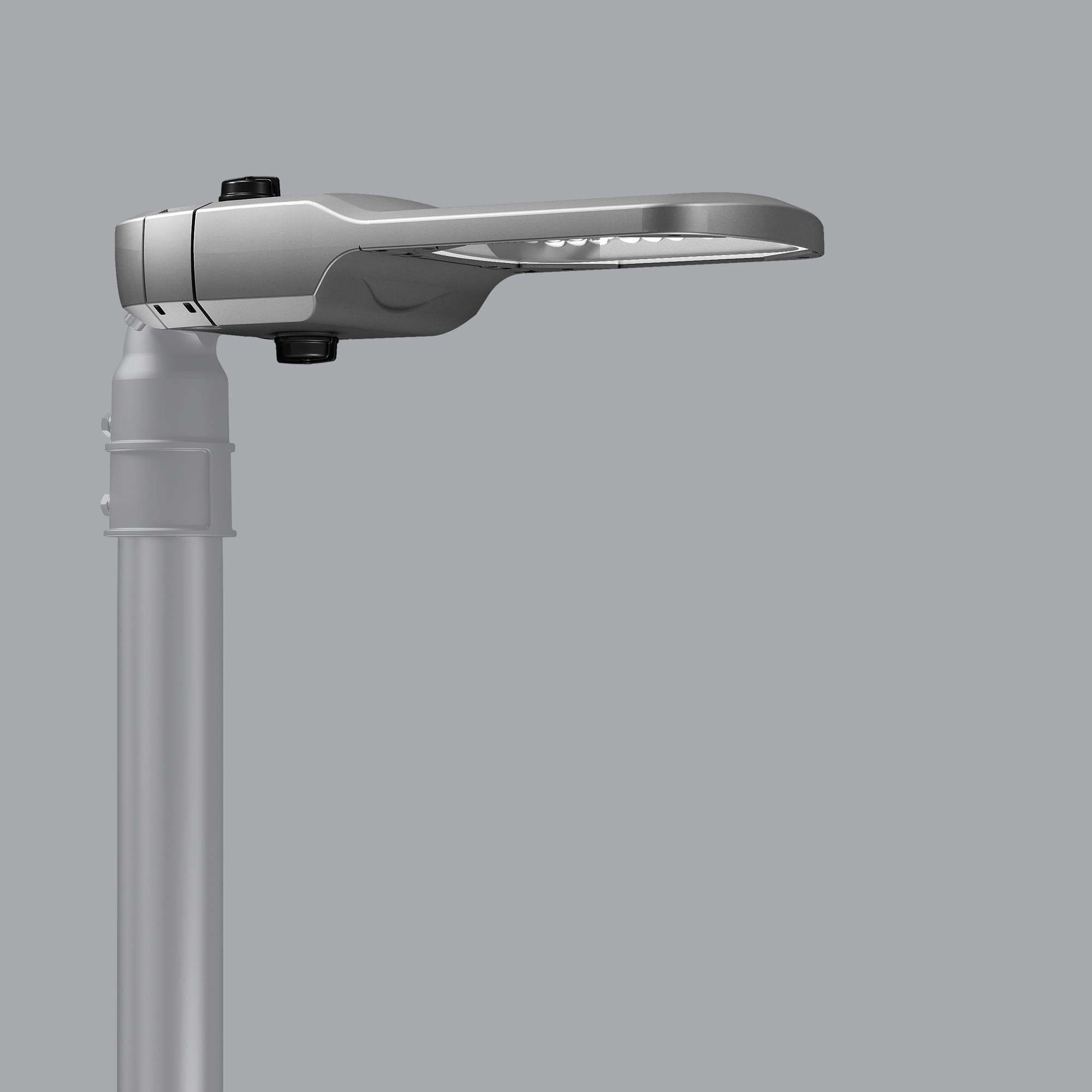

Billboard pole-top

All Billboard

Product Details

  • Pole-mounted urban lighting system for the use of LED light sources.
  • Installation on pole-head, side-arm or whip-arm poles.
  • Optical compartment made of die-cast aluminium alloy with steel springs and 4mm thick tempered glass.
  • No upward scattering.
  • Adjustable optical compartment (tilt angle ±15°).
  • Three optics available: STM, STW and ASF.
  • The product is available with Midnight protocol or with Zhaga Socket 4 Pin (up only).
  • Supplied with an outgoing cable L=500mm.
  • Overvoltage protection 10kV (common mode) and 10kV (differential mode).
  • The connection for pole installation is separate and can be purchased as an accessory separately. - Supplied with decompression valve.
  • The product is equipped with a hinge that allows opening without tools.
  • IP66, IK10.
  • Class II.

Colours available for Billboard pole-top

  • U9 Gray (RAL 7010)

Do you want to know more?

Click to access our Contact Us page where you can send us an enquiry.

Make Enquiry

5 year product warranty included
