Light Up belongs to Light Up Earth

E113

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

Light Up - Recessed floor luminaire Earth D=144 mm - Warm White - Flood optic - 11.7W 1369.2lm - 3000K

Product Information

  • Material: stainless steel
  • Size (mm): ø144x178, Weight (kg): 1.63
  • Design: iGuzzini

Available colours

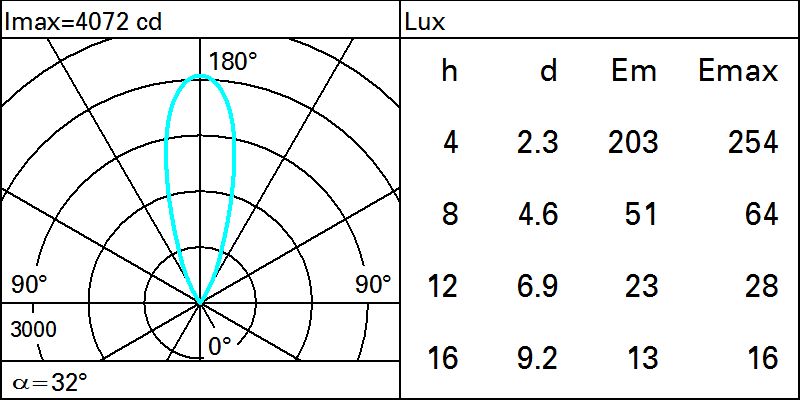

Lighting parameters

Electrical parameters

  • Electronic Control gear included
  • Ballast losses [W]: 1.9
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • Power Factor: See installation instructions
  • Overvoltage Protection: 2kV Common mode & 1kV Differential mode

Technical Specifications

  • Complete immersion
    for limited periods,
    not suitable for use
    in swimming pools
    or fountains.

Installation information

  • Installation: The product is secured to the outer casing by means of two TORX-type screws. The luminaire can be installed recessed, floor-standing, using an outer casing or on the ground.
  • Environment: indoor/outdoor
  • Wiring: Product inclusive of 220-240 VAC electronic control gear
Accessories (9)
  • X198

    Honeycomb louvre - For Opti Beam Reflector
    Size (mm): ø65x4
    • 04 Black
  • X199

    Refractor for elliptical distribution - For Opti Beam Reflector
    Size (mm): ø65x4
    • 24 Clear transparent
  • X200

    Diffuser glass - For Opti Beam Reflector
    Size (mm): ø65x4
    • 65 Nitric
  • B916

    Suction cup
    • 00 Indeterminate
  • X197

    Plastic casing for installation on floors + end cap
    Size (mm): ø144x225
    • 04 Black
  • 9581

    Sealed connector kit IP68 for low voltage
    • 04 Black
  • B915

    IP68 box for multiple connections - dim. 135x82x70h
    Size (mm): 135x82x70
    • 04 Black
  • X188

    2-way junction connector - IP68
    Size (mm): ø23
    • 00 Indeterminate
  • X189

    4-way junction connector - IP68
    Size (mm): 80x54x28
    • 00 Indeterminate
