Walky belongs to Walky square wall-mountedWalky square recessedWalky square bollard

EI35

Updating Product Data...

Photometric configuration only available on screens above 1024px

Select a combination of accessories to download
specific product data sheets and photometric curves.

updated

Walky - Square optic assembly 90x90mm – AL optic – Warm White LED – 24Vdc - 4.6W 111.3lm - 3000K

Product Information

  • Material: die-cast aluminium and thermoplastic
  • Size (mm): 36x90x90, Weight (kg): 0.18
  • Design: iGuzzini

Available colours

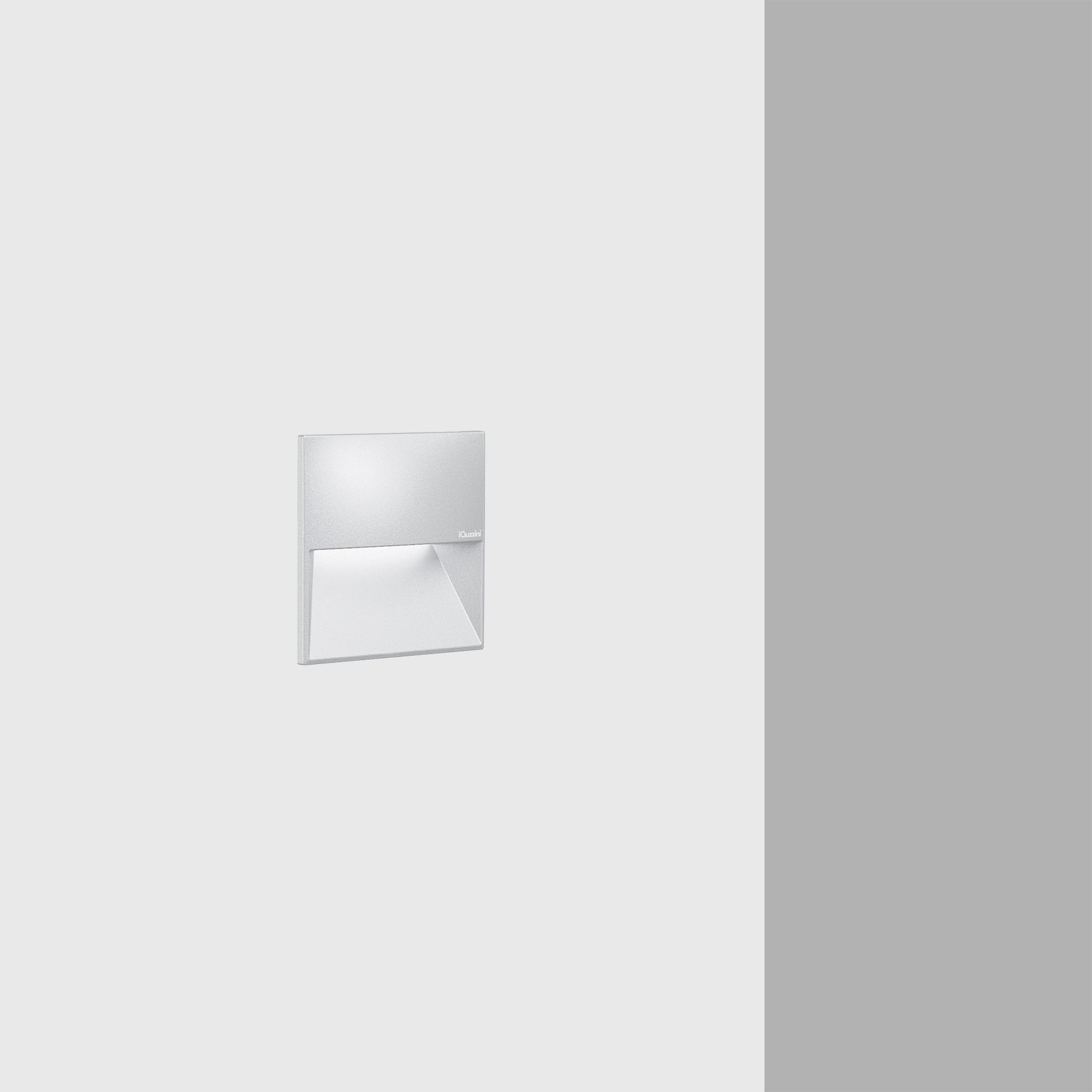

  • 01 White
  • 04 Black
  • 15 Grey

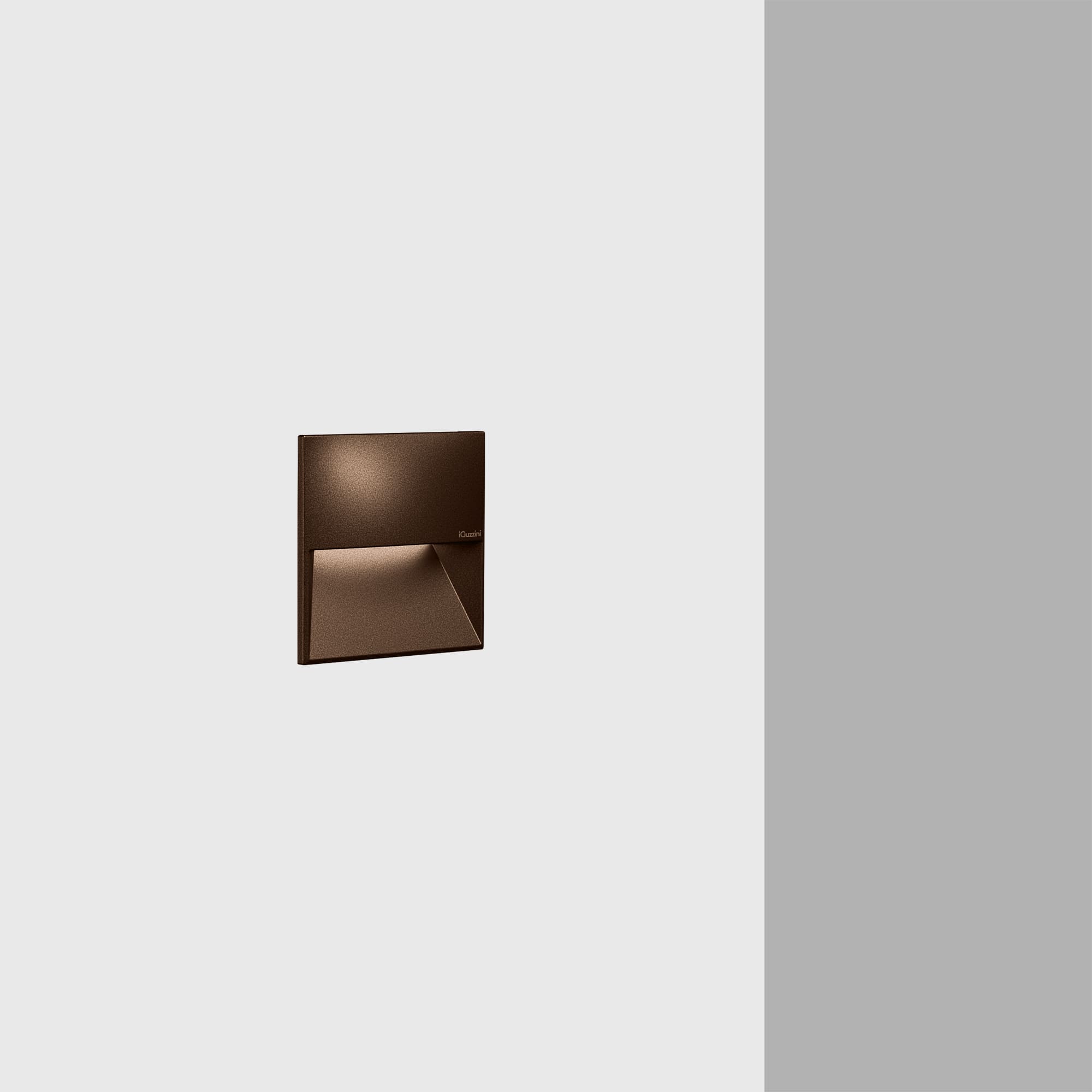

  • F5 Rust brown

Lighting parameters

Electrical parameters

  • Electronic Driver not included
  • Control: PWM
  • Ballast losses [W]: 1.4
  • N° lamps assembly: 1
  • Operating ambient temperature range: da -30°C a 50°C.
  • LED Current [mA]: 50 / 50 / 50 / 50

Technical Specifications

Installation information

  • Installation: Wall-recessed installation with a plastic outer casing to be ordered separately. Disposable polystyrene formwork for creating the outer casing housings for installations in concrete walls that are then plastered or finished with bricks so the end surface is flush with the optical assembly. If ceiling-mounted an aluminium base is used to be ordered separately.
  • Environment: Outdoor
  • Wiring: Version with remote 24Vdc ballast.
  • This product requires one of the accessories listed below to be installed:
  • Sealed connector kit IP68 for low voltage 9581
Accessories (31)

  • X332
    Plastic casing - square
    Size (mm): 54x93x93
    • 15 Grey

  • X339
    Wall base - square
    Size (mm): 90x90x25
    • 01 White
    • 04 Black
    • 15 Grey
    • F5 Rust brown

  • X342
    Disposable polystyrene precast outer-casing mould|p|For concrete, plastered surfaces and tiles applications - round/square
    Size (mm): 200x200x90
    • 00 Indeterminate

  • X421
    Opening key
    • 13 Steel

  • X441
    Walky 90x90 mm bollard mounting accessory - h = 600 mm - without power supply
    Size (mm): 40x110x600
    • 01 White
    • 04 Black
    • 15 Grey
    • F5 Rust brown

  • X442
    Walky 90x90 mm bollard mounting accessory - h = 600 mm - with power supply
    Size (mm): 40x110x600
    • 01 White
    • 04 Black
    • 15 Grey
    • F5 Rust brown

  • X448
    Counter-plate with anchor bolts
    • 00 Indeterminate

  • XA05
    Spacer base for installation via conduit for square 180x180mm Walky
    Size (mm): 163x163x36
    • 01 White
    • 04 Black
    • 15 Grey
    • F5 Rust brown

  • 9908
    Constant voltage power supply unit non dimmable track DIN 10W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 0,4A dimensions: 18x68x93
    Size (mm): 17x92x68
    • 00 Indeterminate

  • 9909
    Constant voltage power supply unit non dimmable track DIN 24W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 1A dimensions: 35x68x94
    Size (mm): 36x94x68
    • 00 Indeterminate

  • 9910
    Constant voltage power supply unit non dimmable track DIN 72W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 3A dimensions: 70x68x94
    Size (mm): 95x72x68
    • 00 Indeterminate

  • 9911
    Constant voltage power supply unit non dimmable track DIN 96W - VIN = 220-240VAC 50/60Hz Vout = 24V IMAX = 4A dimensions: 93x66x105
    Size (mm): 95x72x68
    • 00 Indeterminate

  • MWK4
    Electronic constant voltage power supply 50W 24V - Iout=2A dim. 225x60x36h
    Size (mm): 225x60x36
    • 00 Indeterminate

  • MWK5
    Electronic constant voltage power supply 70W 24V - IOUT=2,9A dim. 225x60x36h
    Size (mm): 225x60x36
    • 00 Indeterminate

  • X182
    Constant voltage power supply unit non dimmable 40W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 1,67A dimensions:171x61,5x36,8
    Size (mm): 171x61x36
    • 00 Indeterminate

  • X183
    Constant voltage power supply unit non dimmable 80 W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 3,4A dimensions:195,6x61,5x38,8
    Size (mm): 195x61x38
    • 00 Indeterminate

  • X184
    Constant voltage power supply unit non dimmable 120W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 5A dimensions:220x68x38,8
    Size (mm): 220x68x38
    • 00 Indeterminate

  • X185
    Constant voltage power supply unit non dimmable 185W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 7,8A dimensions:228x68x38,8
    Size (mm): 228x68x38
    • 00 Indeterminate

  • X186
    Constant voltage power supply unit non dimmable 240W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 13,34A
    Size (mm): 244x68x38
    • 00 Indeterminate

  • X187
    Constant voltage power supply unit non dimmable 320W - VIN =90-305VAC 50/60Hz Vout = 24V IMAX = 13,34A
    Size (mm): 252x90x43
    • 00 Indeterminate

  • MZ14
    Constant voltage power supply unit IP20 96W - VIN = 120-277VAC 50/60Hz Vout = 24VDC IMAX = 4A dimensions: 300x40x22
    Size (mm): 300x40x21
    • 00 Indeterminate

  • MZ15
    Constant voltage power supply DALI dimmable IP20 100W - VIN = 220-240 Vac 50/60Hz Vout = 24 Vdc IMAX = 4,16A
    Size (mm): 295x43x30
    • 00 Indeterminate

  • PC15
    Constant voltage power supply unit non dimmable track DIN 120W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 5A
    Size (mm): 40x114x125
    • 00 Indeterminate

  • PC16
    Constant voltage power supply unit non dimmable track DIN 240W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 10A
    Size (mm): 63x114x125
    • 00 Indeterminate

  • PC17
    Constant voltage power supply unit non dimmable track DIN 480W - VIN = 90-240VAC 50/60Hz Vout = 24V IMAX = 20A
    Size (mm): 86x114x125
    • 00 Indeterminate

  • 9639
    DMX/DALI-PWM interface LED dimmer - 1-4ch 12/24/48V 720W max
    Size (mm): 153x50x23
    • 00 Indeterminate

  • MWP3
    DALI-PWM interface LED dimmer 1-4 ch 12/24/48V 120/240W
    Size (mm): 181x42x20
    • 00 Indeterminate

  • 9581
    Sealed connector kit IP68 for low voltage
    • 04 Black

  • 9582
    IP67 box for power supply - dim. 140x230x95h (6PG)
    Size (mm): 230x140x95
    • 00 Indeterminate

  • BZ33
    IP67 box for power supply - dim. 280x190x130h (10PG)
    Size (mm): 280x190x130
    • 00 Indeterminate

  • X653
    Cable box IP66 - dim 378x188x130h
    Size (mm): ø130
    • 00 Indeterminate
