Laser Blade High Contrast

All Laser Blade

Oval distribution & Tunable White

Oval distribution & Tunable White

Oval distribution
The new Laser Blade High Contrast version with Oval optics is ideal for illuminating rather long and narrow spaces, such as corridors or areas of passage, communication and hallways between adjacent rooms . The new oval or elliptical distribution has a 35° x 70° beam angle for longitudinal and crossways light emission ensuring maximum application and installation flexibility.

Tunable White - Always 100%
Tunable White technology brings back the dynamism of white light - i.e. the variation in colour temperature between 2700K and 6500K. And we have optimised the visual effect of the new Laser Blade Tunable White solution: all the cells are always at 100% of flux or, if dimming is available, they all vary in the same proportion to ensure constant, continuous and above all uniform light emission for any required colour temperature.

Lighting Effects

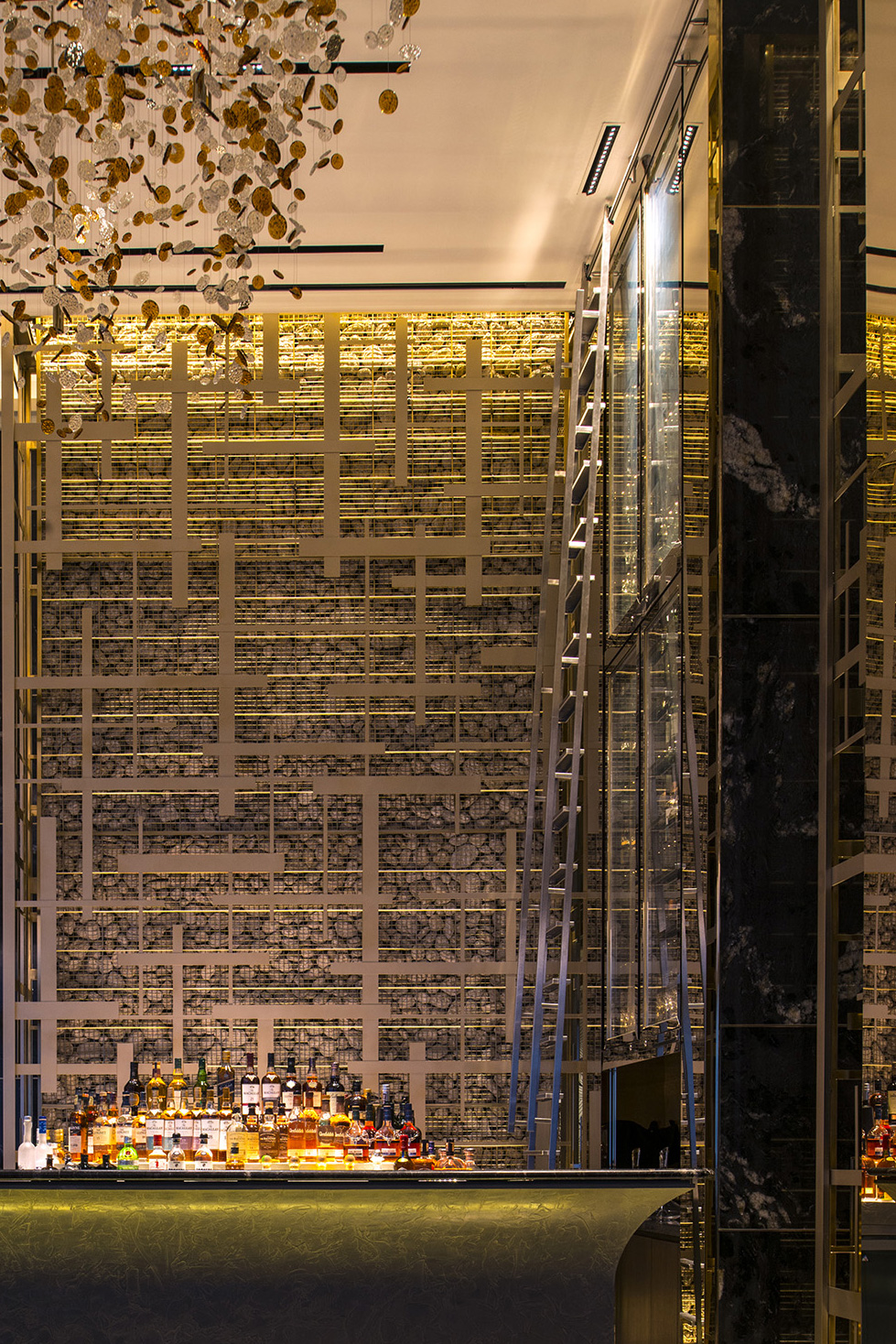

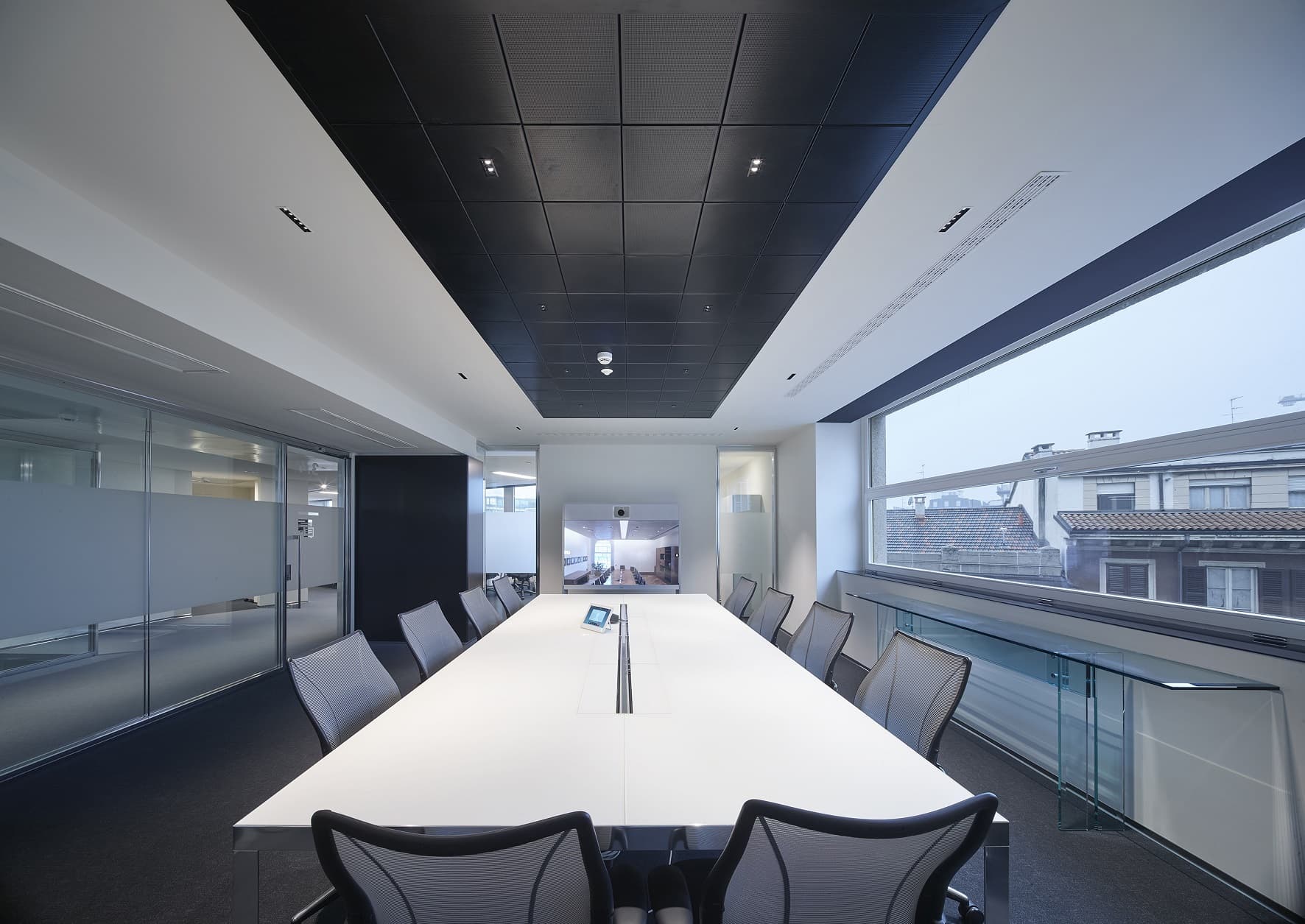

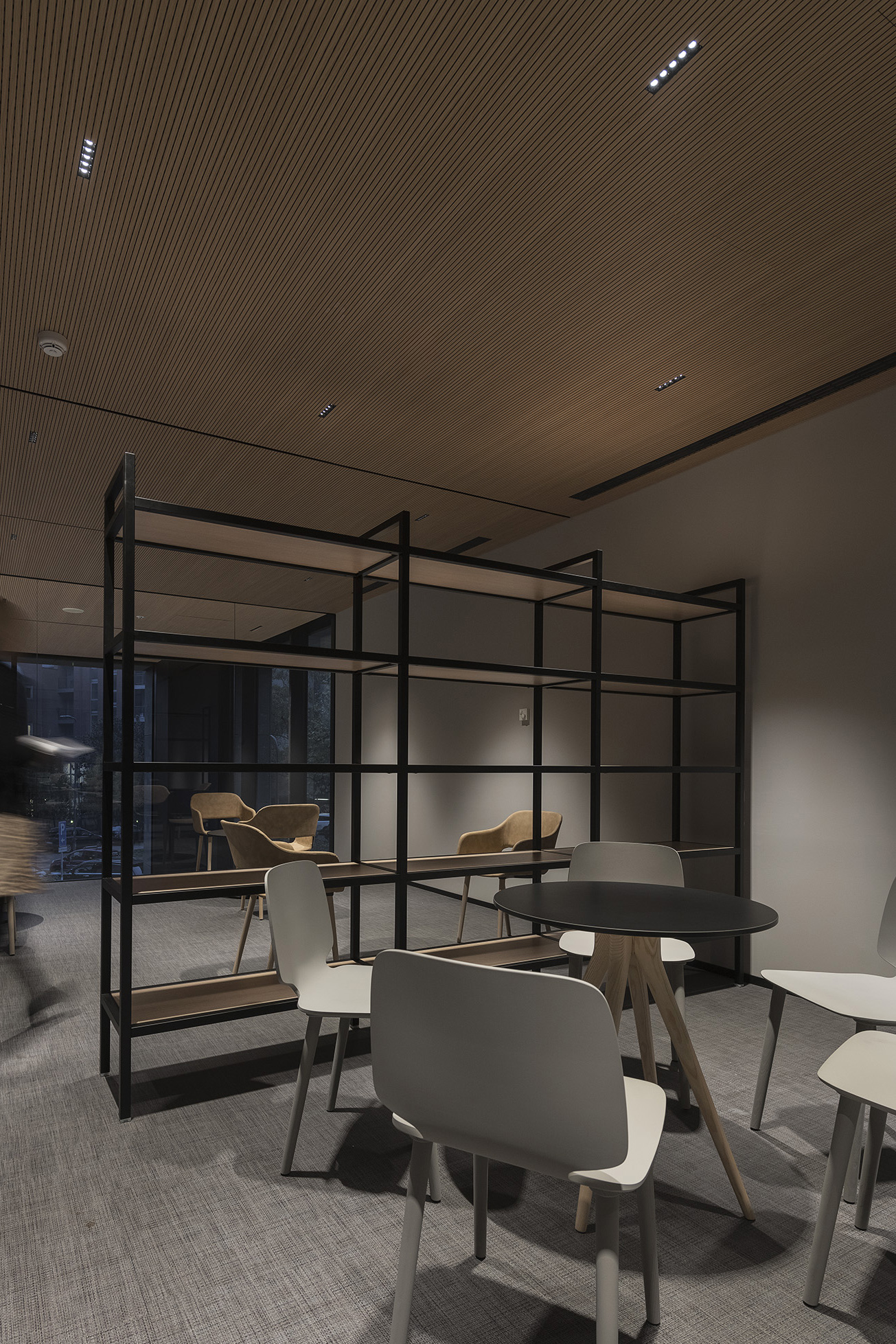

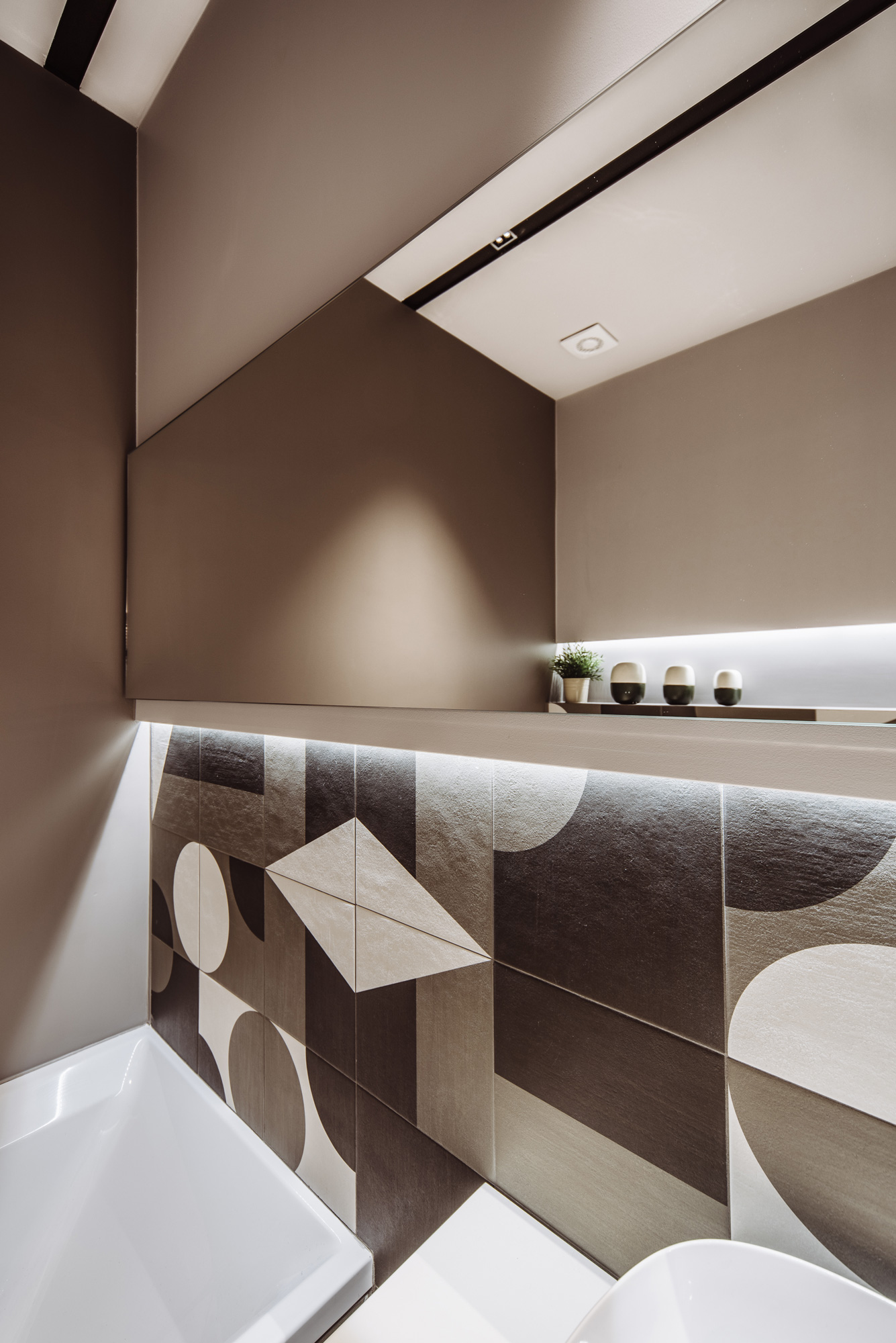

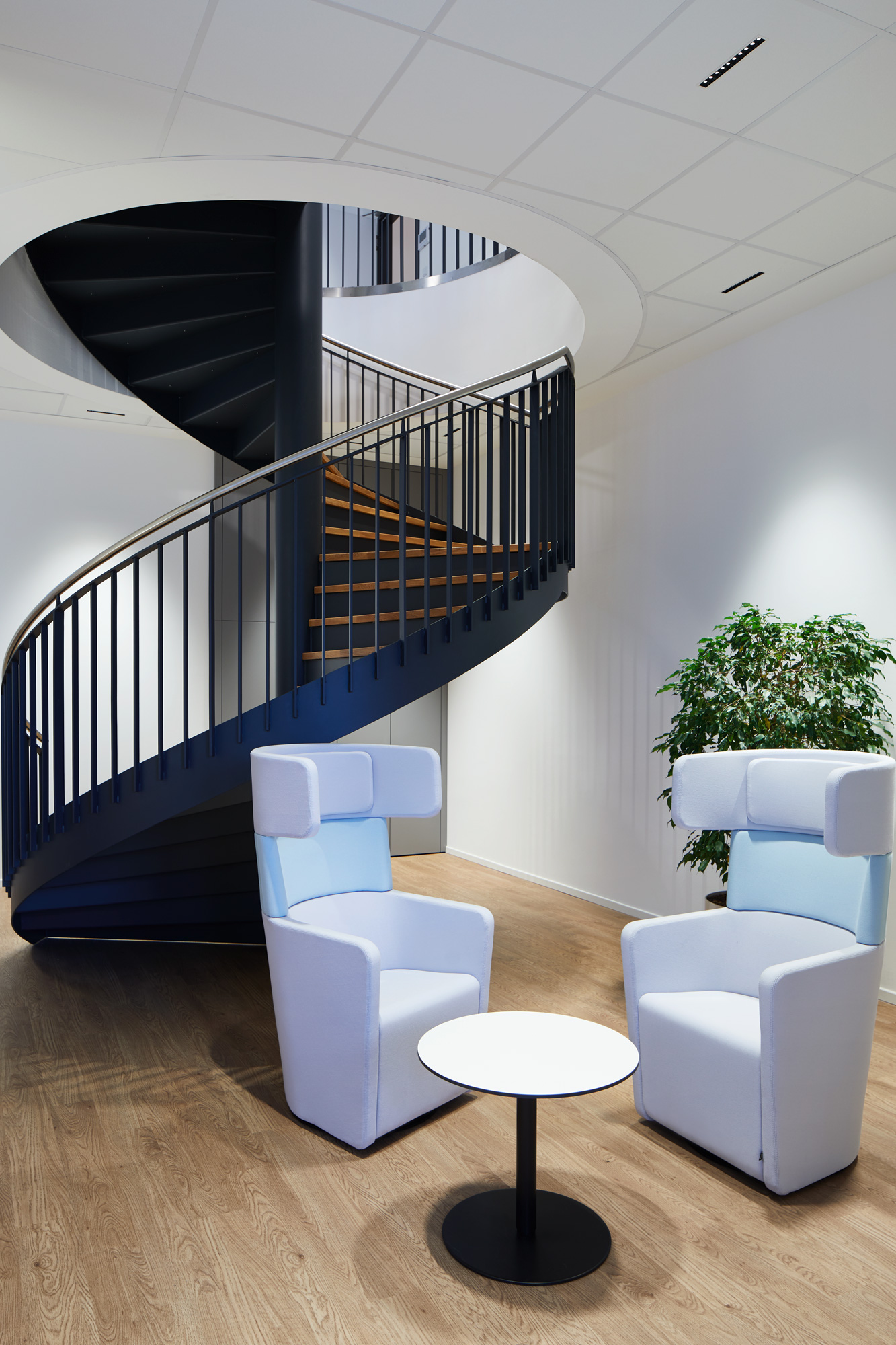

Application imagery for Laser Blade High Contrast


Product Details

  • Flush mount installation on false ceilings of thickness 12.5 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
  • Main body with radiant surface made of die-cast aluminium.
  • High-definition optics made of metallised thermoplastic material, integrated in the innovative black antiglare screen that defi nes emission with luminance control UGR<10.
  • Tunable White versions available (2700K ÷ 5700K)
  • The special configuration of the optical system delivers a precise circular distribution without punctiform effect.
  • High visual comfort.
  • Installation without tools.

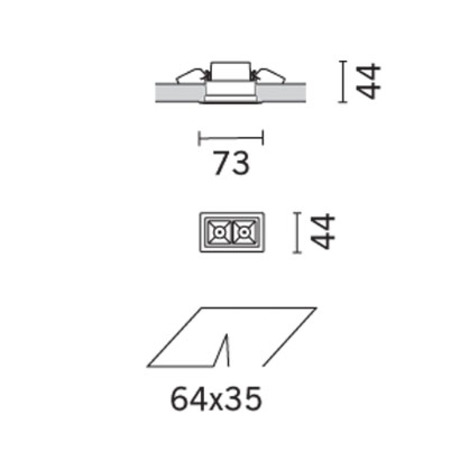

  • The minimum installation space dimensions are listed in the online instruction catalogue.
  • IP20.
  • IP23 on the visible body of the mount after installation.

Colours available for Laser Blade High Contrast

  • 01 White
  • 43 Black/Black
  • 47 White / Black
  • 04 Black
  • 83 Black transparent
  • D8 White transparent
  • 24 Clear transparent

Further colours on request

  • 41 White / gold
  • 74 Grey / Black
  • E7 white / burnished chrome
