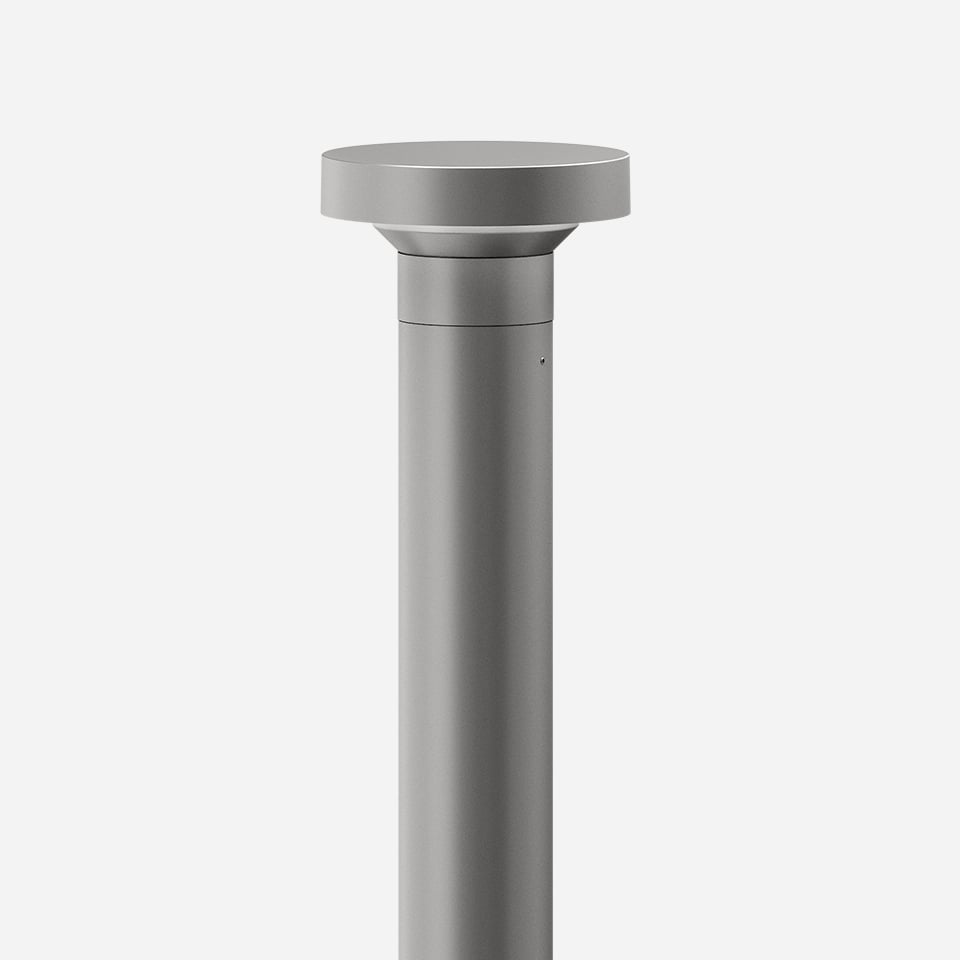

iWay Velvet - smooth collar
Overview
- Bollard for outdoor use, installable on ground and floor.
- Complete product consisting of an optical compartment with a smooth collar and a cylindrical post to be ordered separately.
- The optical compartment consists of: painted aluminium top cover, PMMA flux recuperator, plexiglass emitting lens, smooth aluminium collar, silicone gasket and power supply.
- The Ø90mm diameter post is anchored to the ground by means of a fixing base made of aluminium alloy.
- Inside the post there are three stainless steel rods fixed to the lower base, giving the product high impact resistance.
- The aluminium parts are subjected to a multi-step pre-treatment, in which the main phases are degreasing, fluoro-zirconium coating and sealing.
- The subsequent painting phase is carried out with primer and liquid acrylic paint, which provides high resistance to atmospheric agents and UV rays.
- The power supply is DALI-2 controllable.
- The optical system is complete with a monochromatic circuit.
- 4 colour temperatures available: 2200K, 2700K, 3000K and 4000K. 2 optics: 360° symmetrical optics and 180° asymmetrical optics. 3 heights available: 300mm, 600mm and 900mm.
- 5 finishes: white, black, green, grey and rust brown.
- All external screws used are made of stainless steel.
Protection Ratings
-
Class II -
IP66
Mechanical Resistance
-
IK10 - Protected against 20 J shocks
