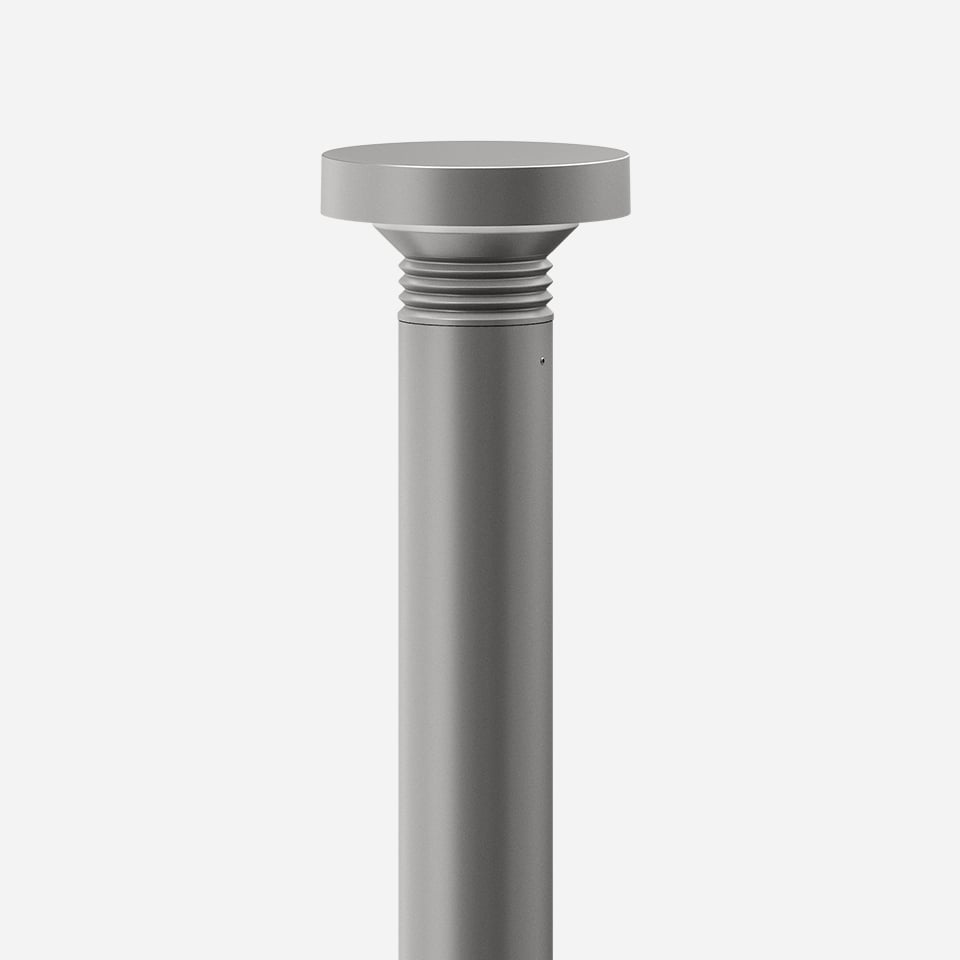

iWay Velvet - textured collar
Overview
- Outdoor bollard for ground and floor installation.
- Complete product consisting of an optical compartment with a textured collar and a cylindrical pole to be ordered separately.
- The optical compartment is composed of: painted aluminium top cover, PMMA flux recuperator, plexiglass emitting lens, aluminium textured collar, silicone gasket and power supply.
- The Ø90mm diameter pole is anchored to the ground via a fixing base made of aluminium alloy.
- Inside the pole there are three stainless steel rods fixed to the lower base, giving the product high impact resistance.
- The aluminium parts undergo a multi-step pre-treatment, in which the main phases are degreasing, fluoro-zirconation and sealing.
- The subsequent painting phase is carried out with primer and liquid acrylic paint, which provides high resistance to atmospheric agents and UV rays.
- The power supply is DALI-2 controllable.
- The optical system is complete with a monochromatic circuit.
- 4 colour temperatures available: 2200K, 2700K, 3000K and 4000K. 2 optics: 360° symmetrical optics and 180° asymmetrical optics.
- 3 heights available: 300mm, 600mm and 900mm.
- 5 finishes: white, black, green, grey and rust brown.
- All external screws used are made of stainless steel.
Protection Ratings
-
Class II -
IP66
Mechanical Resistance
-
IK10 - Protected against 20 J shocks
