Linealuce 37 surface Remote

All Linealuce

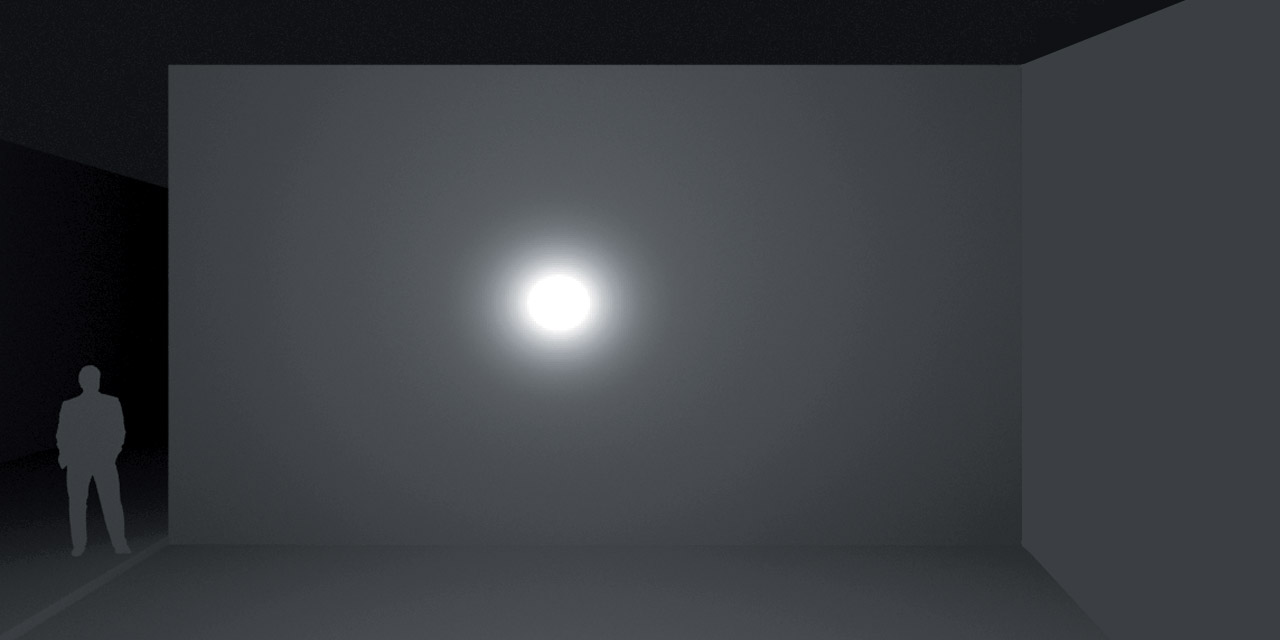

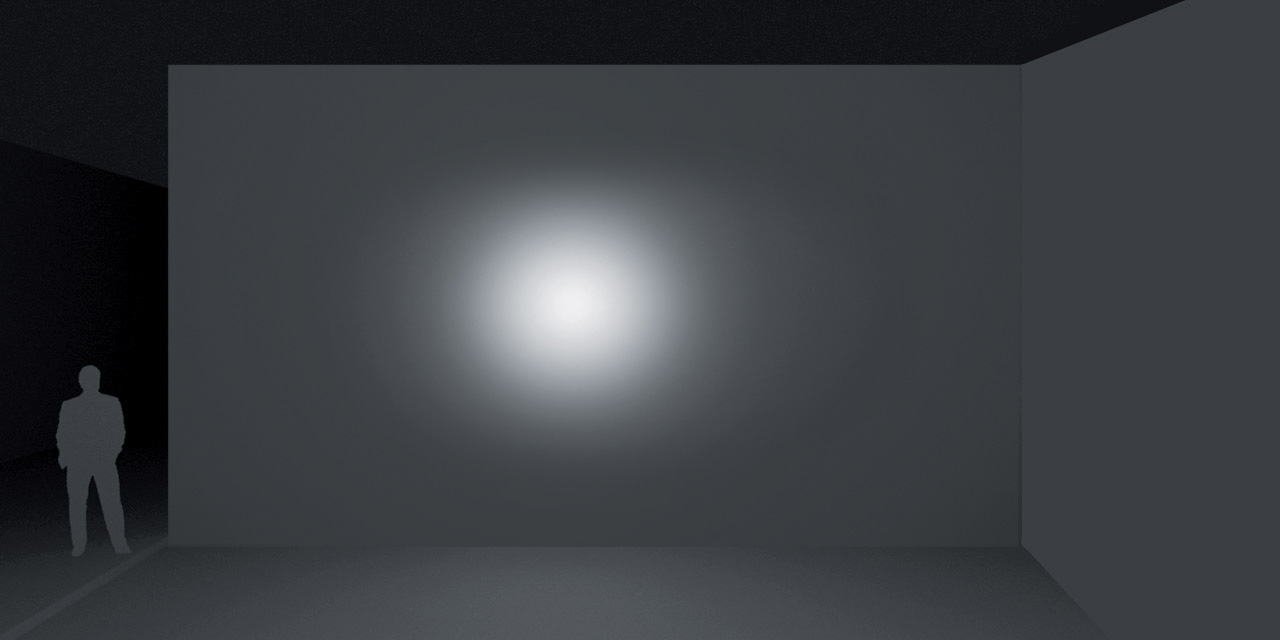

Lighting Effects

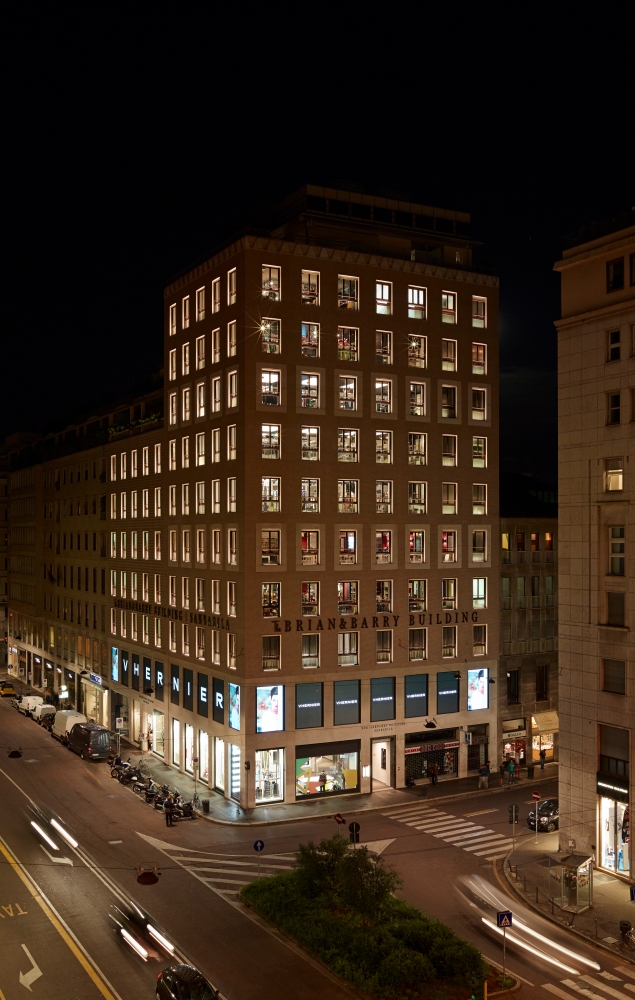

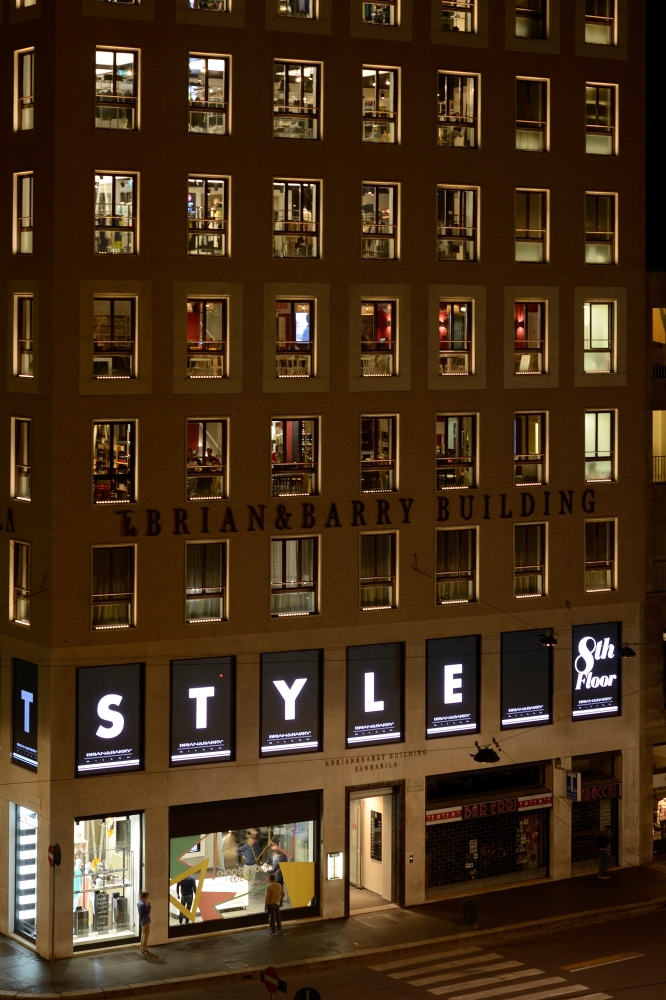

Application imagery for Linealuce 37 surface Remote


Product Details

• Direct light luminaire, designed to use LED lamps.
• Surface-mounted.
• Consists of a body and supports for installation (to be ordered separately).
• Extruded aluminium body, with die-cast alumnium end caps completewith silicone seals. Coated with liquid acrylic paint with a high level of weather and UV ray resistance.
• The top of the optical assembly is closed by a 3 mm thick transparent glass screen, fixed with silicone. Complete with multi-LED power plate in Very Warm White (2700K), Warm White (3000K), Neutral White (4000K) with 24Vdc electronic ballast to be ordered separately; 24V smart driver allowing constant light flow emission despite variations in the input voltage (from 30Vdc to 16Vdc).
• White Tuning versions available (White LED 2700K-4000K-6000K), RGB and Real White coloured light LED versions (RGBW and WRGBW with White LED 4000K), with 48V dc ballast to be ordered separately.
• Fitted with a PMMA diffusion filter and optics with plastic (methacrylate) lens for Wall Grazing lighting.
• PWM dimmable monochrome LED versions: the product is supplied with a single nickel-plated brass cable gland PG9 and a 2x1 mm2 PVC and polyurethane outgoing cable, 2000 mm long. For the electrical connection there is an IP68 linear connector, and an IP67 junction box wit quick-coupling terminals.
• Dimmable, White Tuning and Real White monochrome versions: electronic control gear Vin=48Vdc to be ordered separately, DMXRDM internal driver, contained in a special extruded aluminium side box, with die-cast aluminium end caps complete with silicone seals, two nickel-plated brass cable glands PG13.5 and double outgoing cable for pass-through wiring. For electrical connection IP68 connectors can be ordered separately.
• Dimensions: product cross-section 37x37 mm; 3 or more lengths available for each version. All external screws used are made of A2 stainless steel.
• The luminaire technical characteristics conform to EN60598-1 standards and particular requirements

Colours available for Linealuce 37 surface Remote

  • 15 Grey
