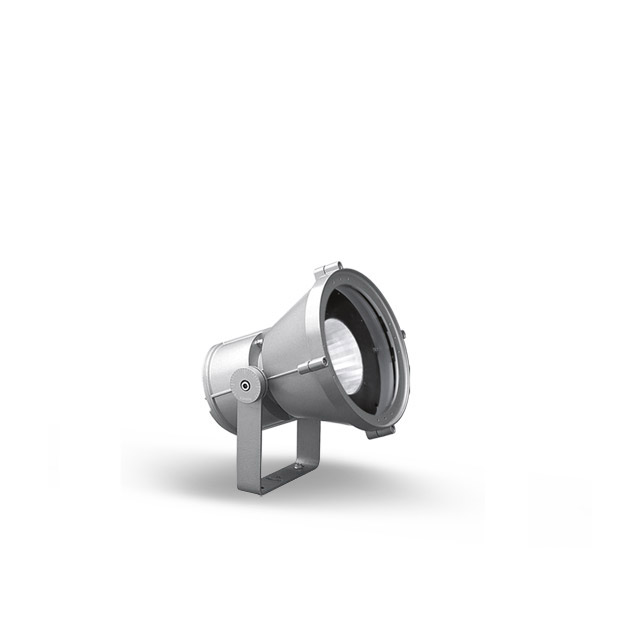

MaxiWoody ø315mm

All Woody

Lighting Effects


Application imagery for MaxiWoody ø315mm


Product Details

  • Direct light luminaire for use with LEDs.
  • The fixture is installed into the ground, wall-mounted (with a fisher) and on pole-mounted systems.
  • The fixture has an optical assembly and support.
  • Optical assembly and frame in aluminium alloy; sodium-calcium tempered sealing glass, transparent colourless, 4 mm thick; superpure aluminium reflector.
  • Optical assembly double adjustability.
  • Graduated scale and mechanical aiming lock.
  • High performance optics (Opti Smart) and uniform light distribution.
  • Monochromatic LED version: single chip and dimmable DALI chip on board.
  • LED RGB and WNC (White Tuning) versions complete with power supply and DMX512-RDM electronic control card.
  • Luminaire ready for pass-through wiring.
  • All screws are A2 stainless steel.

Colours available for MaxiWoody ø315mm

  • 15 Grey
