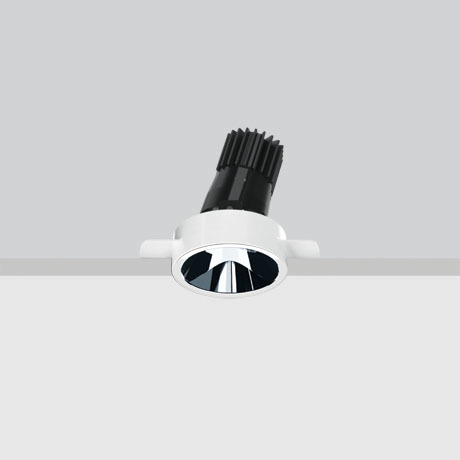

Reflex C.o.B. adjustable round

All Reflex

Lighting Effects


Product Details

• Flush mount installation on false ceilings of thickness 12.5 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
• Body and heat sink in extruded aluminium.
• Reflectors in super-pure mirror f nish aluminium.
• +/- 30° orientation in the horizontal plane and 358° around the vertical axis.
• Mechanical aiming lock.
• Electronic wiring and DALI available.

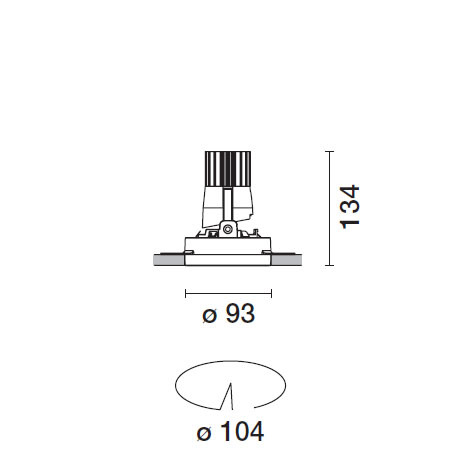

 The minimum installation space dimensions are listed in the online instruction catalogue.
• IP20
• IP23 on the visible body of the mount after installation

Colours available for Reflex C.o.B. adjustable round

  • 39 White/Aluminium
  • 12 Aluminium
