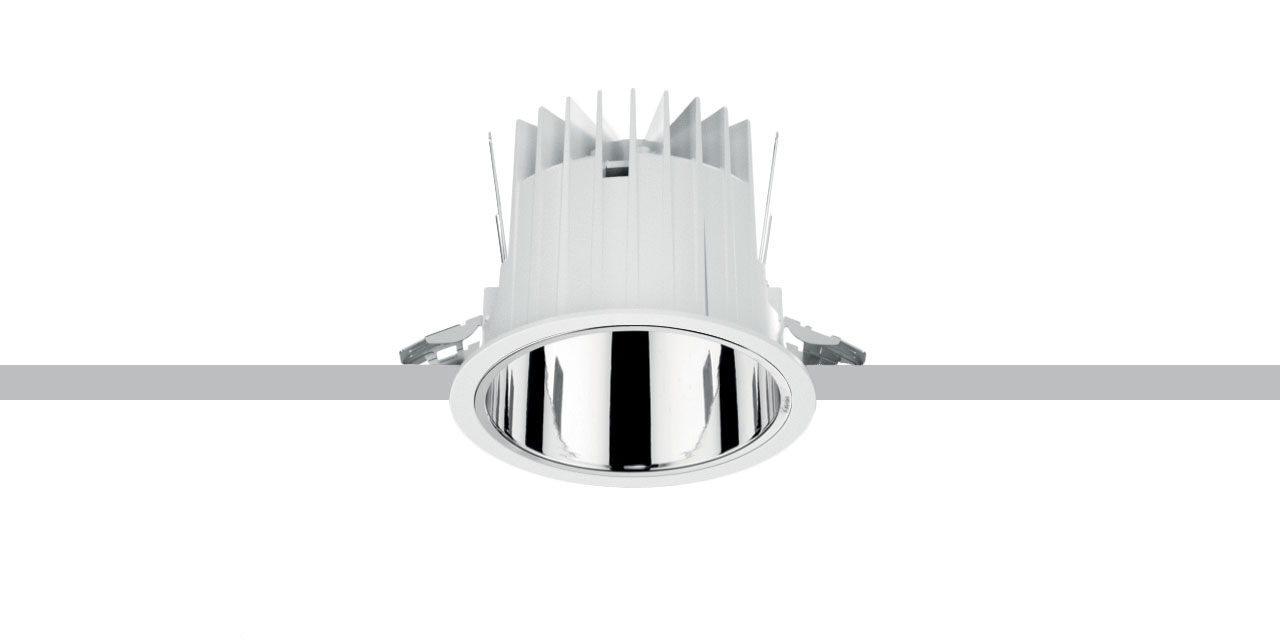

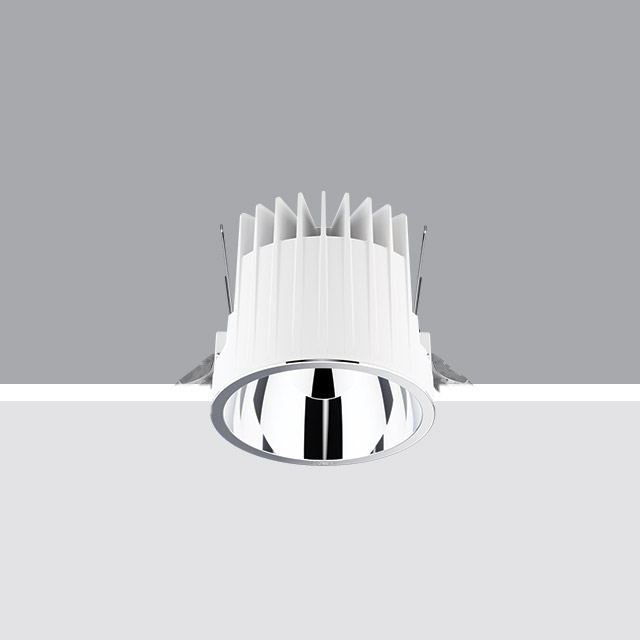

Reflex C.o.B. round

All Reflex

Lighting Effects

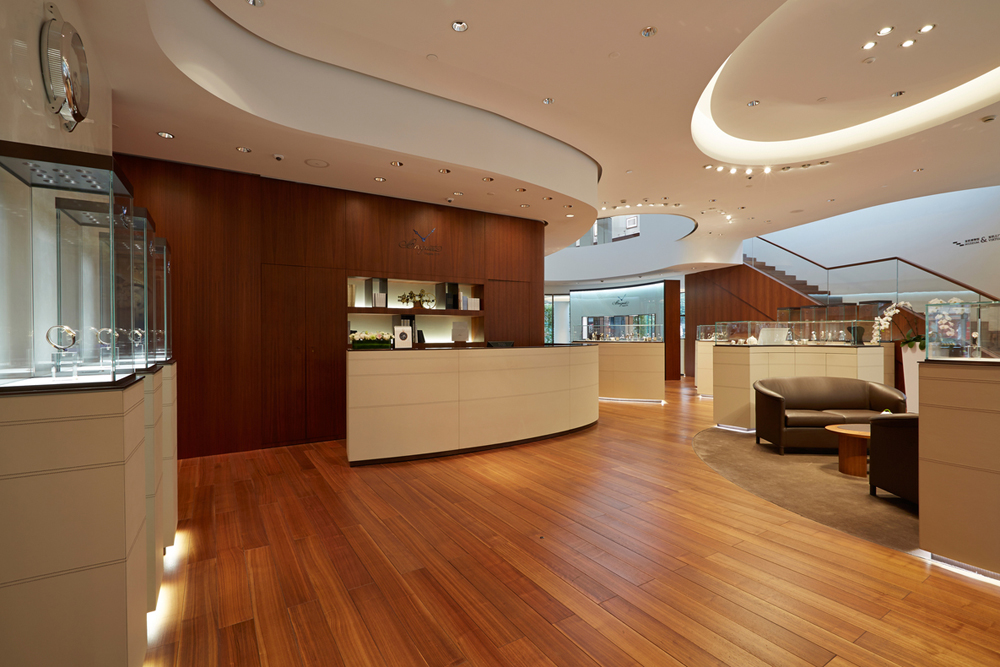

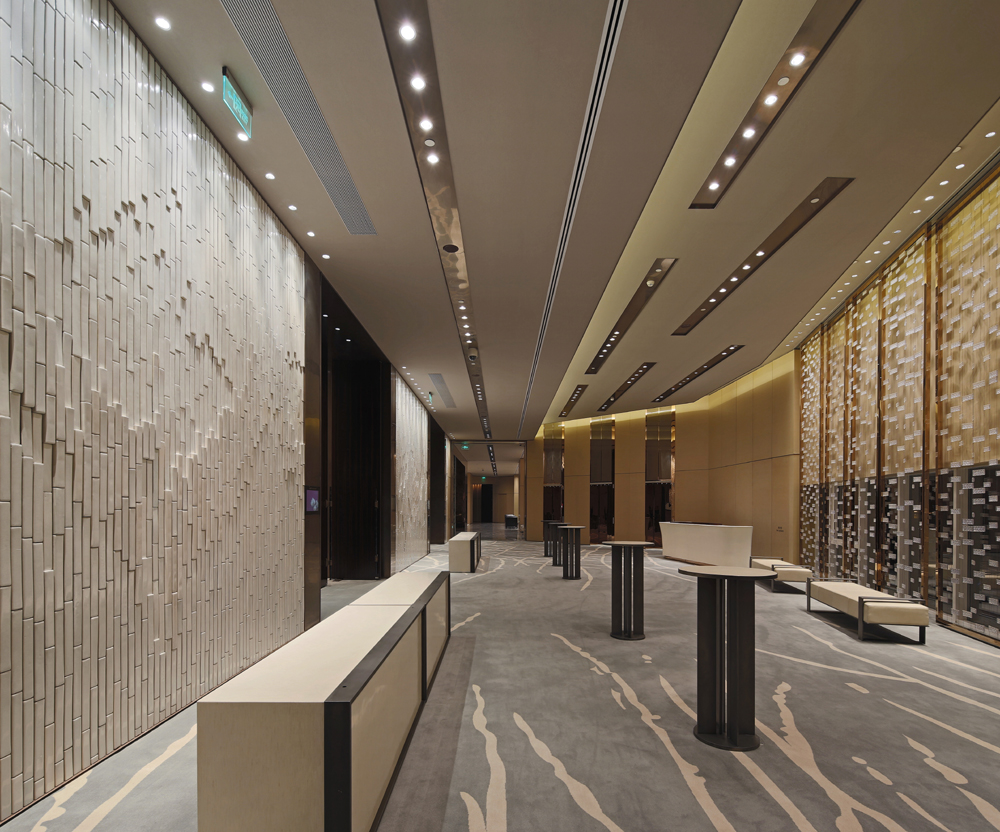

Application imagery for Reflex C.o.B. round


Product Details

  • Flush mount installation on false ceilings of thickness 12.5 mm for Minimal versions (without perimeter flap) or 1 to 25 mm for Frame versions (with flap) using torsion springs.
  • Body and heat-sink in die-cast and extruded aluminium.
  • Reflector in metallic-finish thermoplastic material with scratch protection for excellent lighting efficiency and visual comfort.
  • Versions suitable for use in settings with UGR <19 video terminals, Super Comfort UGR <10 versions.

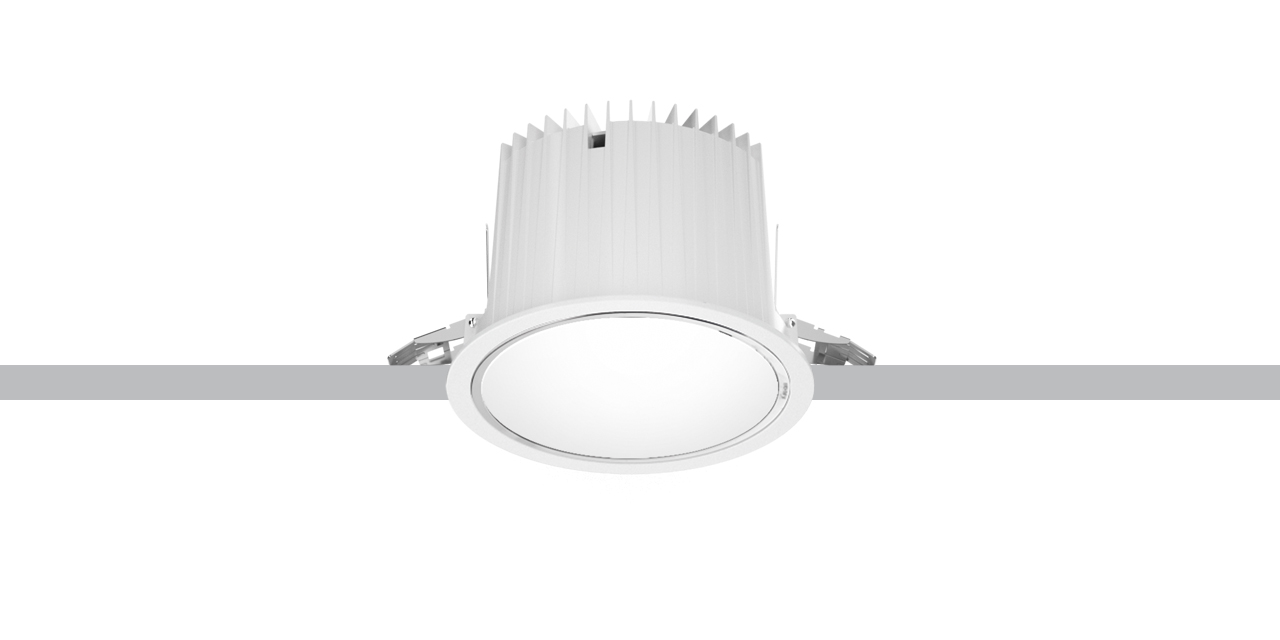

  • General lighting versions available with white reflector.
  • Available with electronic wiring and DALI.
  • The minimum installation space dimensions are listed in the online instruction catalogue.
  • IP20
  • IP43 on the visible body of the mount after installation (Minimal versions).
  • IP54 on the visible body of the mount after installation (Frame versions).

Colours available for Reflex C.o.B. round

  • 39 White/Aluminium
  • 12 Aluminium
  • 01 White
